Overview

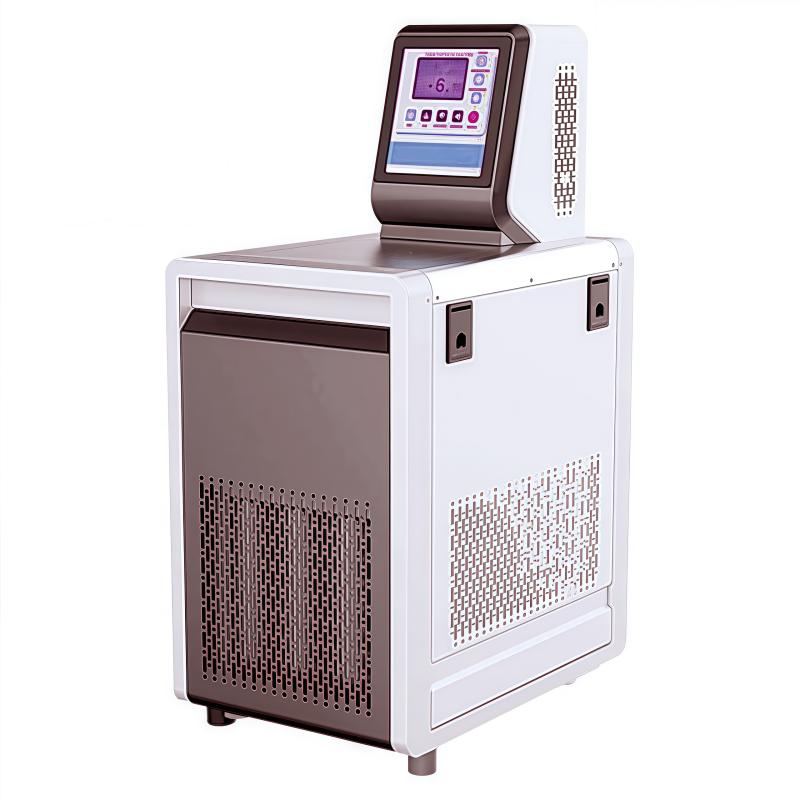

DHC-1010N High and Low Temperature Circulating Bath is a precision temperature control equipment with Temperature range -10~ 160 ℃ and temperature resolution 0.1 ℃. Tank size 270 * 200 * 200mm, volume 10L, equipped with 10L/min flow circulation pump and 180 * 140mm groove opening, suitable for High Accuracy Temperature Control requirements in laboratories and industrial fields.
Features
1. Adopt a fully enclosed environmentally friendly Compressor refrigeration system, equipped with multiple overheating and overcurrent protection devices
2. Large screen backlit LCD display, working status information is clearly visible
3. Equipment instrumentation with temperature calibration and self-tuning functions
4. The control part adopts ABS mold design, the overall Appearance is streamlined
5. High-performance Stirring cycle motor, using non-heat centrifugal circulation pump
6. Plate and liner are made of stainless steel 304, easy to clean and durable
7. Refrigeration coil increases positioning and surface preparation process, fine workmanship
8. Motor impeller is fully enclosed to prevent safety hazards
9. The side panels around the equipment can be flexibly disassembled and assembled
10. The circulation interface and drain port are made of stainless steel 304 pagoda joints, and the drain valve is built-in hidden
11. Standard circulating silicone tube and thermal insulation sleeve, which is convenient for customers to use flexibly
Principle
The High and Low Temperature Circulating Bath realizes temperature control through a fully enclosed and environmentally friendly Compressor refrigeration system. With a high-performance Stir circulation motor and a heat-free centrifugal circulation pump, the medium in the Tank is evenly circulated, and the set temperature is accurately maintained through the instrument self-adjustment and temperature correction functions.
Applications
Laboratory, industrial field
Steps
1. Connect the power supply and turn on the device.
2. Set the desired temperature through the large screen LCD
3. Start the circulating pump and refrigeration system
4. Monitor temperature stability
5. Turn off the equipment and drain it after use
Notice
• Power frequency meets requirements before use
• Regularly clean stainless steel platens and liners
• Avoid removing the side panels while the equipment is running
• Pay attention to the correct operation of the drain valve
• Keep the circulation interface and piping open
