Overview

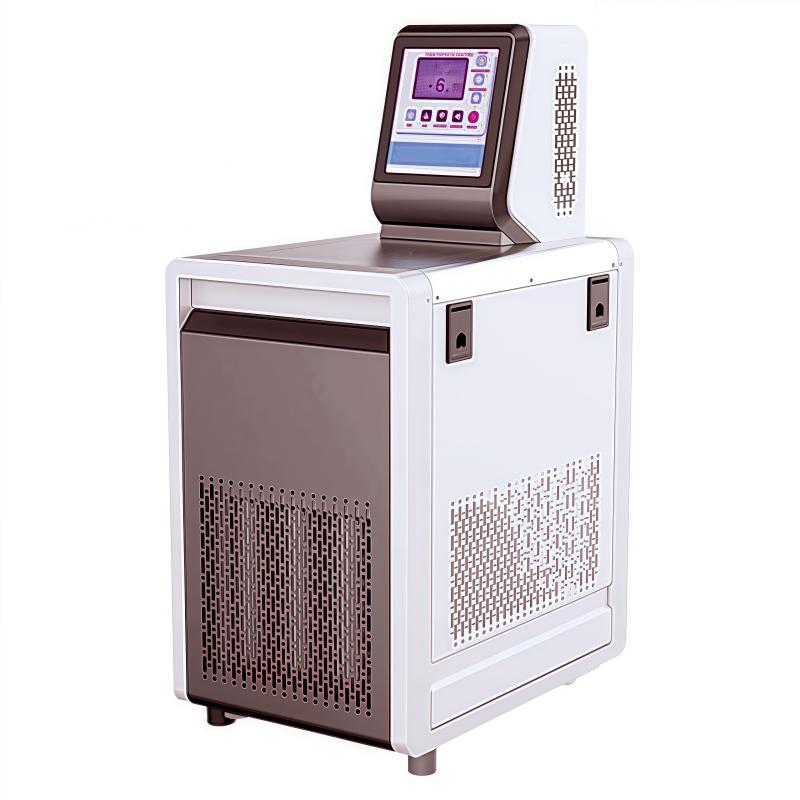

Shangtian Jingyi DHC-2010N High and Low Temperature Circulating Bath is a precision temperature control device with a Temperature range of -20~ 160 ° C. Tank volume of 10L, stainless steel 304 material, suitable for temperature control needs in laboratories and industrial fields.
Features
1. Adopt a fully enclosed environmentally friendly Compressor refrigeration system, equipped with multiple overheating and overcurrent protection devices
2. Large screen backlit LCD display, clear working status information
3. Equipment instrumentation with temperature calibration and self-tuning functions
4. The control part adopts ABS mold design, the overall Appearance is streamlined
5. High-performance Stirring cycle motor, using non-heat centrifugal circulation pump
6. Plate and liner are made of stainless steel 304 for easy cleaning and durability
7. Refrigeration coil increases positioning and surface preparation process, fine workmanship
8. Motor impeller is fully enclosed to prevent safety hazards
9. The side panels around the equipment can be flexibly disassembled and assembled
10. The circulation interface and drain are made of stainless steel 304 pagoda joints, and the drain valve has a built-in hidden type
11. Standard circulating silicone tube + thermal insulation sleeve, easy to use flexibly
Principle
The equipment realizes temperature control through a fully enclosed environmentally friendly Compressor refrigeration system, and cooperates with a high-performance Stir cycle motor and a heat-free centrifugal circulation pump to ensure uniform and stable temperature in the Tank. The instrument has a self-tuning function to precisely adjust the temperature.
Applications
Laboratory, industrial field
Steps
1. Connect the power supply and turn on the device.
2. Set the desired temperature through the large screen LCD
3. Start circulating pump and Stir system
4. Monitor the temperature display, and the device automatically adjusts to the set value
5. Turn off the power and clean the equipment after use
Notice
• Check whether the power supply and grounding are normal before use
• Make sure the Tank is clean and free of debris
Avoid operating in humid or flammable environments
• Regularly check the refrigeration system and protective devices
• Pay attention to safety when removing the side panels to avoid damage to the internal components
