Overview

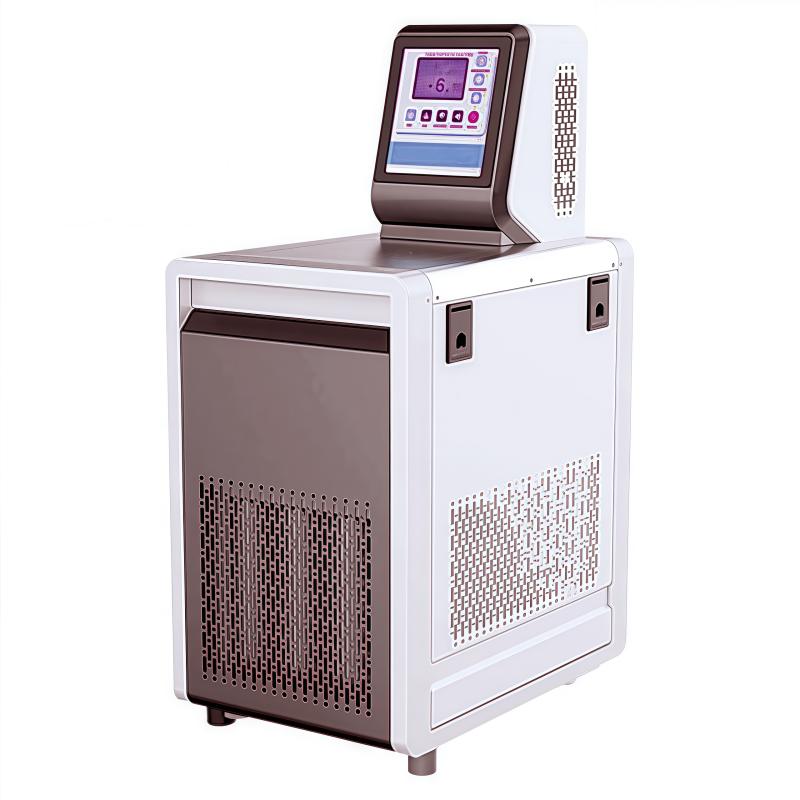

Shangtian Jingyi DHC-2015N High and Low Temperature Circulating Bath is a precision temperature control device with a Temperature range of -20~ 160 ° C and a temperature resolution of 0.1 ° C. Tank volume of 15L, stainless steel 304 material platen and liner, equipped with high-performance Stir circulation system.
Features
1. Adopt a fully enclosed environmentally friendly Compressor refrigeration system, equipped with multiple overheating and overcurrent protection devices
2. Large screen backlit LCD display, clear working status information
3. Equipment instrumentation with temperature calibration and self-tuning functions
4. The control part adopts ABS mold design, the overall Appearance is streamlined
5. High-performance Stirring cycle motor, using non-heat centrifugal circulation pump
6. Plate and liner are made of stainless steel 304 for easy cleaning and durability
7. Refrigeration coil increases positioning and surface preparation process, fine workmanship
8. Motor impeller is fully enclosed to prevent safety hazards
9. The side panels around the equipment can be flexibly disassembled and assembled
10. The circulation interface and drain are made of stainless steel 304 pagoda joints, and the drain valve has a built-in hidden type
11. Standard circulating silicone tube + thermal insulation sleeve, easy to use flexibly
Principle
The equipment realizes temperature control through a fully enclosed environmentally friendly Compressor refrigeration system, and cooperates with a high-performance Stir cycle motor and a heat-free centrifugal circulation pump to ensure uniform and stable temperature in the Tank. The instrument has a self-tuning function to automatically optimize temperature control parameters.
Applications
Laboratory temperature control experiment, industrial thermostatic test, material performance research, electronic component aging test
Steps
1. Connect the power supply and turn on the device.
2. Set the required temperature parameters
3. Start circulating pump and Stir system
4. Monitor temperature stability
5. Turn off the equipment and drain it after use
Notice
• Power frequency meets requirements before use
• Regularly clean stainless steel liners and platens
• Avoid removing the side panels while the equipment is running
• Pay attention to check the status of the refrigeration system protection device
• Use standard insulation jackets to improve energy efficiency
