Overview

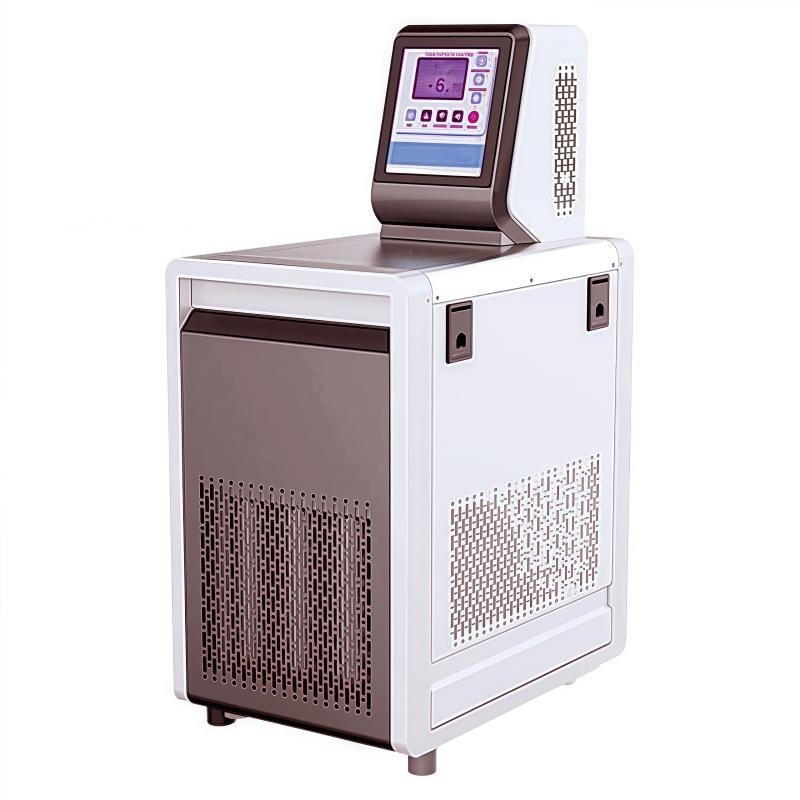

The DHC-2020N High and Low Temperature Circulating Bath is a precision temperature control device with a Temperature range of -20~ 160 ° C and a temperature resolution of 0.1 ° C. Tank volume of 20L, stainless steel 304 material, equipped with a high-performance Stir circulation system, suitable for temperature control needs in laboratories and industrial fields.
Features
1. Adopt a fully enclosed environmentally friendly Compressor refrigeration system with multiple overheating and overcurrent protection devices
2. Large screen backlit LCD display, clear working status information display
3. Equipment instrumentation with temperature calibration and self-tuning functions
4. Control part adopts ABS mold design, Overall Appearance streamline design
5. High-performance Stirring cycle motor, using non-heat centrifugal circulation pump
6. Plate and liner made of stainless steel 304, easy to clean and durable
7. Refrigeration coil increases positioning and surface preparation process, fine workmanship
8. The motor impeller is fully enclosed to prevent potential safety hazards
9. The side panels around the equipment can be flexibly disassembled and assembled
10. The circulation interface and drain are all made of stainless steel 304 pagoda joints, and the drain valve is designed with built-in hidden type
11. Standard circulating silicone tube + thermal insulation sleeve, easy for customers to use flexibly
Principle
The equipment realizes temperature control through a fully enclosed environmentally friendly Compressor refrigeration system, and cooperates with a high-performance Stir cycle motor and a heat-free centrifugal circulation pump to ensure uniform and stable temperature in the Tank. The control system precisely maintains the set temperature through temperature correction and self-tuning functions.
Applications
Laboratory, industrial field
Steps
1. Connect the power supply and turn on the device.
2. Set the required temperature parameters through the large-screen LCD display
3. Start the refrigeration system and circulating pump
4. Monitor the operating status of the equipment to ensure stable temperature
5. Turn off the device and disconnect the power after use
Notice
• Please read the instructions carefully before use
• Ensure equipment is placed in a smoothly ventilated environment
• Regularly clean stainless steel liners and platens
• Pay attention to check whether the refrigeration system and electrical protection devices are normal
• Please disconnect the power supply first when removing the side panel
• Pay attention to the use of built-in hidden drain valve when draining
• Pay attention to the firm installation when using the standard thermal insulation sleeve
