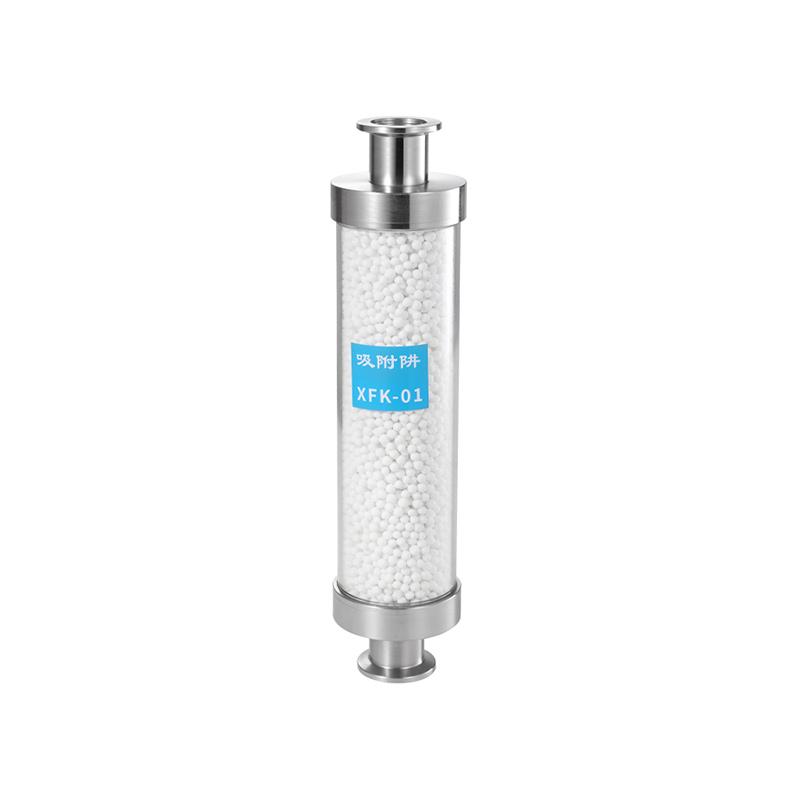

Yonghao vacuum XFK-01 adsorption trap, active aluminum oxide ball adsorption medium oil retention rate 99%

Name: Yonghao vacuum XFK-01 adsorption trap, active aluminum oxide ball adsorption medium oil retention rate 99%
Brand: yonghao vacuum
SKU: NB050201
Price: 144.0 USD
Availability: InStock

$ 144.00Ex works

The activated aluminum oxide ball is used as the adsorption medium, which can adsorption water vapor and chemical corrosion harmful gases, and the oil blocking rate is more than 99%.

Model

XFK-01

Get Quote

Category : Vacuum Pump

Brand : yonghao vacuum

SKU : NB050201

Service :The delivery and service By NBCLab.Com

Overview

The adsorption trap is the XFK-01 model product produced by Yonghao vacuum. It is installed in front of the air inlet of the Vacuumpump. The activated aluminum oxide ball is used as the adsorption medium, which can effectively adsorb the water vapor and chemical corrosion harmful gases in the pumped gas, and at the same time block the Vacuumpump oil and gas from returning to the vacuumed container. The oil retention rate can reach more than 99%. Customers can choose according to the actual use of the Vacuumpump. The activated aluminum oxide ball can be heated to remove water and revive, but it is recommended to use it at one time.

Features

1. Suitable for small rotary vane Vacuumpumps with pumping speed ≤ 6L/s 2. Use the company's special active aluminum oxide ball 3. Replace the active aluminum oxide ball in time according to the actual use 4. Configuring the adsorption trap will slightly affect the pumping speed and Vacuum Level of the Vacuumpump 5. 304/316 stainless steel housing 6. Simple structure and easy operation

Principle

The adsorption trap is installed in front of the air inlet of the Vacuumpump, using the active aluminum oxide ball as the adsorption medium to adsorb the water vapor and chemical corrosion harmful gases in the pumped gas, and at the same time blocking the Vacuumpump oil and gas from returning to the vacuumed container, the oil blocking rate can reach more than 99%.

Notice

• Activated aluminum oxide ball Please use the company's matching special active aluminum oxide ball • Replace the active aluminum oxide ball in time according to the actual use • Configuring the adsorption trap will slightly affect the pumping speed and Vacuum Level of the Vacuumpump • Active aluminum oxide balls can be revived after heating and removing water, but the amount of adsorption trap is small. It is recommended that aluminum oxide balls be used at one time

Size
Ф3-Ф5
micropore diameter
500 um
interface
KF-25
oil retention
99%
shape
small ball
getter
Activated aluminum oxide
dimensions
Ф60*280mm
