Overview

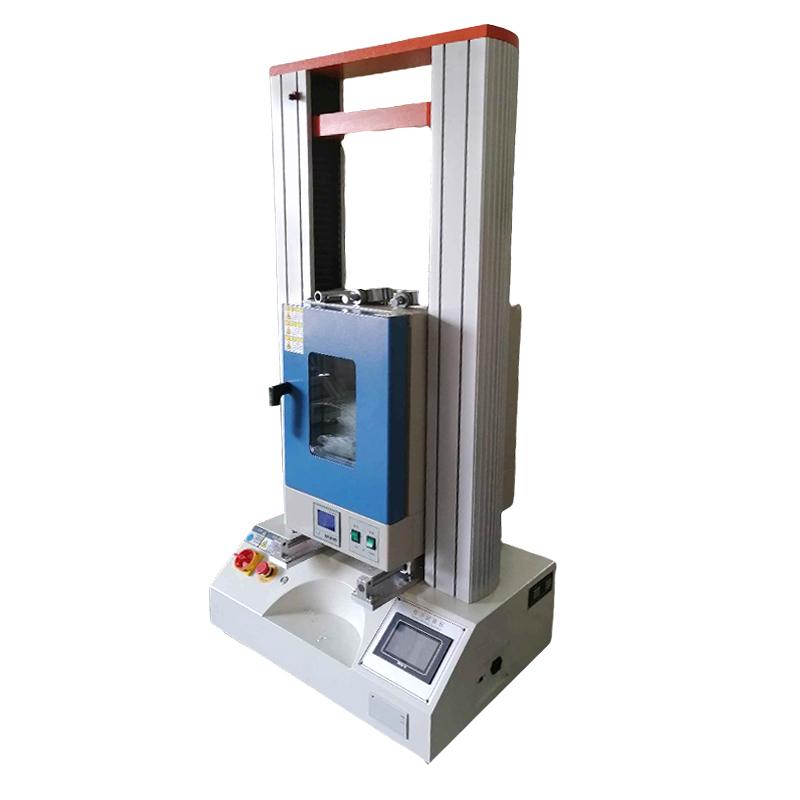

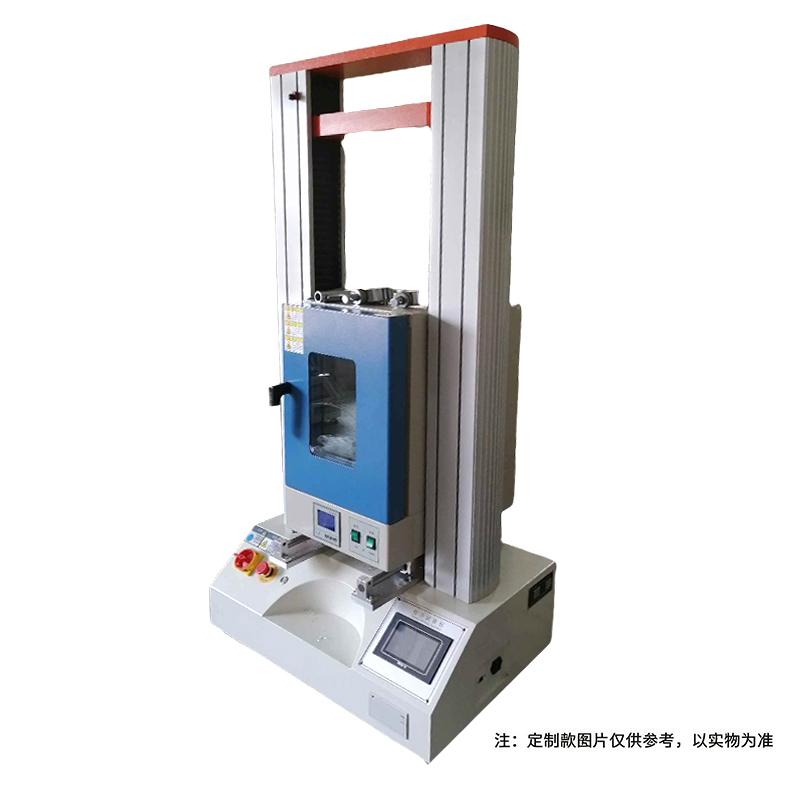

NBC-5000NHX Double Column Universal Testing Machine is a factory direct sales product, suitable for aerospace, Petrochemicals, machinery manufacturing, metal materials and products, Wire and cable, rubber and plastic glue, paper and color printing Encasement, adhesive tape, luggage handbags, Spinning & weaving fibers, food and other industries. It can test the physical performance of various materials and finished products, work in progress, and perform tensile, compression, tensile, compression, bending, tearing, disbonding, adhesion, shear and other tests by purchasing different fixtures.
Features
1. The control system adopts the AC motor with full digital control frequency to ensure the high efficiency of the transmission system, the smooth transmission, the low noise, and the speed accuracy can be controlled within +/- 0.5%.
2. The structure of the machine adopts the aluminum extrusion seal plate treated with paint, which has built-in High Accuracy, Low Resistance, No Gap Double Roller Screw and Guide Column, which improves the load efficiency and structural rigidity.
3. The product performance is stable and reliable, the measurement Accuracy is high, the test software is powerful, and the operation is easy to understand.
Principle
The Universal Testing Machine drives High Accuracy twin roller screws and guide columns through fully digital control AC motors to achieve smooth transmission and precise displacement control. The system can set test parameters, measure force and displacement through Sensor, and use test software for data collection and analysis to complete various physical performance tests.
Applications
Aerospace, Petrochemicals, Machinery Manufacturing, Metal Materials and Products, Wires and cables, Rubber, Plastic, Paper and Color Encasement, Adhesive tapes, Luggage and handbags, Spinning & weaving fibers, Food
Standards
International standards, metric, imperial
Steps
1. Install the required fixtures and adjust the test width.
2. Set test parameters, including maximum force, travel, and speed.
3. Start the test and monitor the data collection.
4. Use emergency stop switches to handle emergencies.
5. Analyze the test results.
Notice
• Set the upper and lower limit protection switches to prevent exceeding the preset Travel.
• The system sets the maximum force value to prevent exceeding the Sensor calibration value.
• There is an emergency stop switch on the right side of the base to handle emergencies.
The test speed range is 1-500mm/min, and it needs to be used within the range.

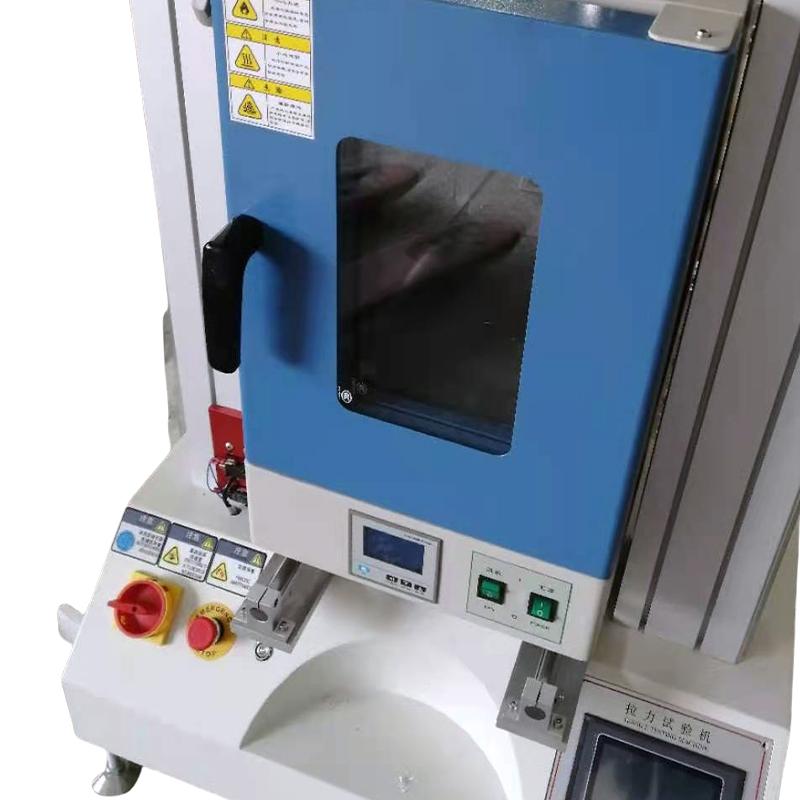

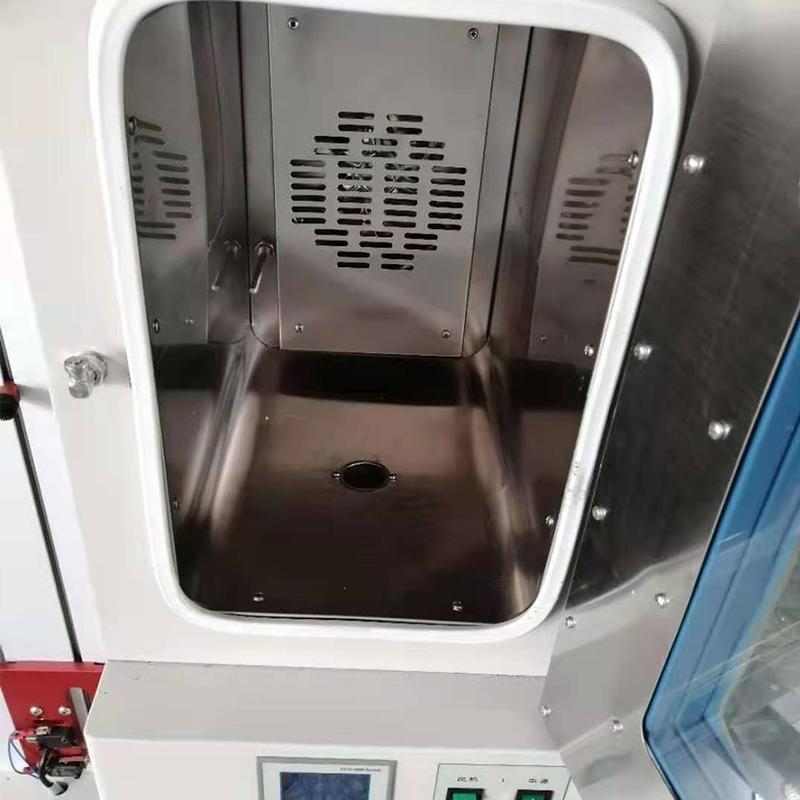

• Oven temperature adjustable range is RT + 10 ℃~ 200 ℃ to avoid over-temperature operation.
