Overview

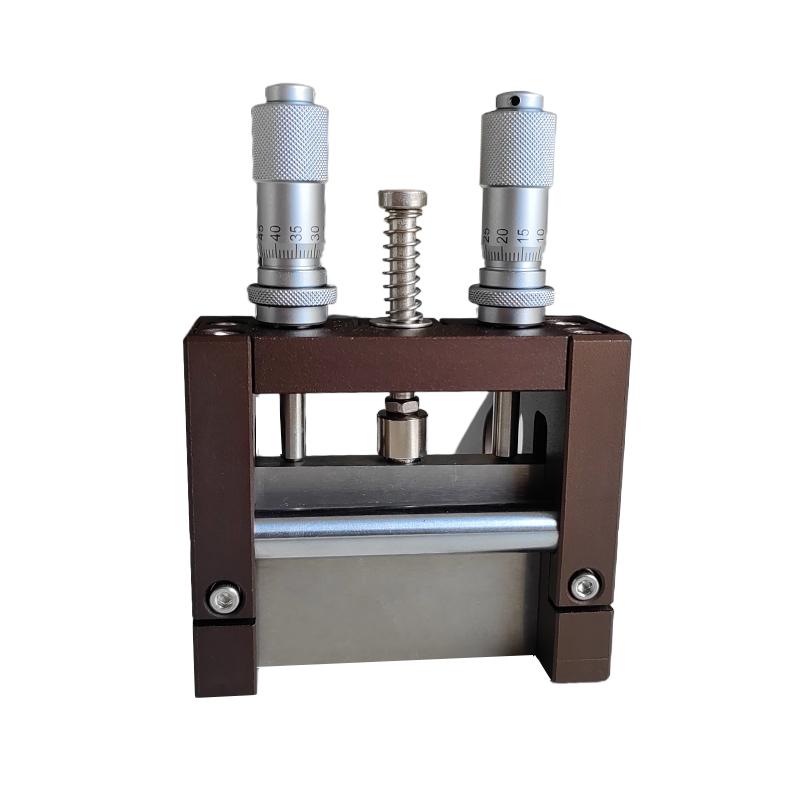

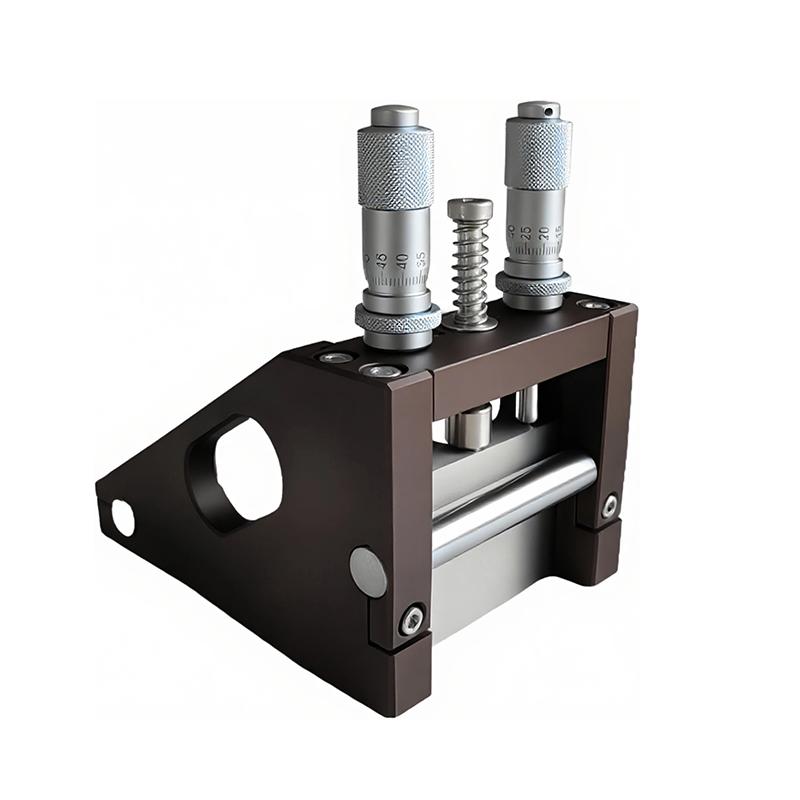

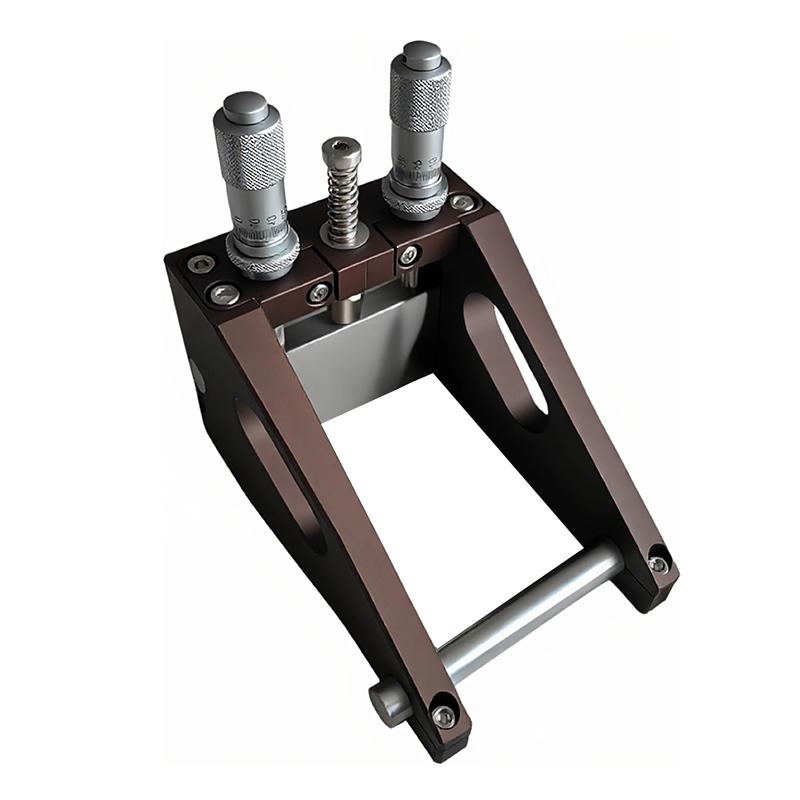

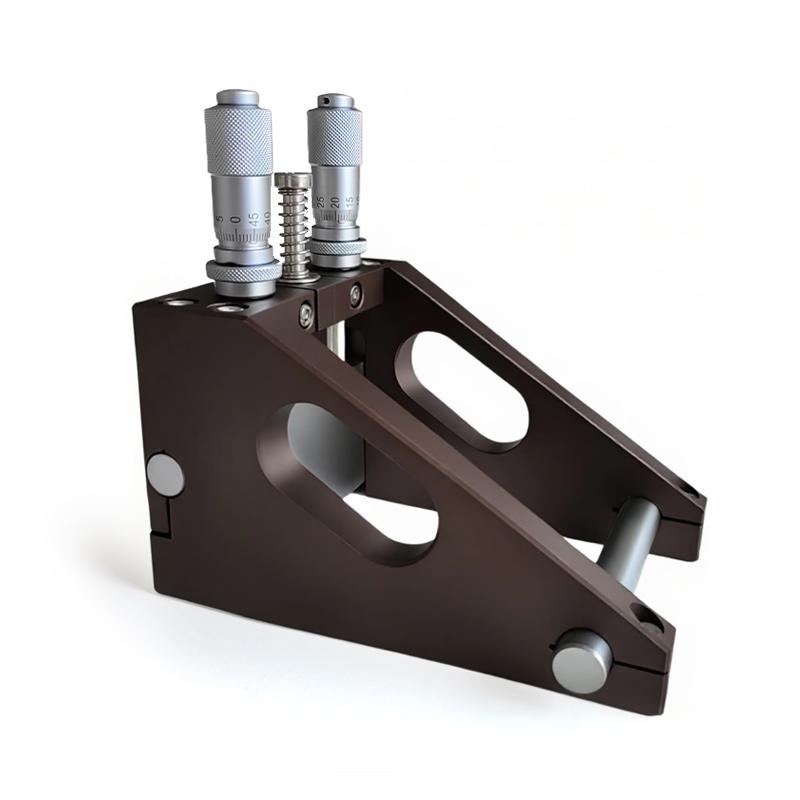

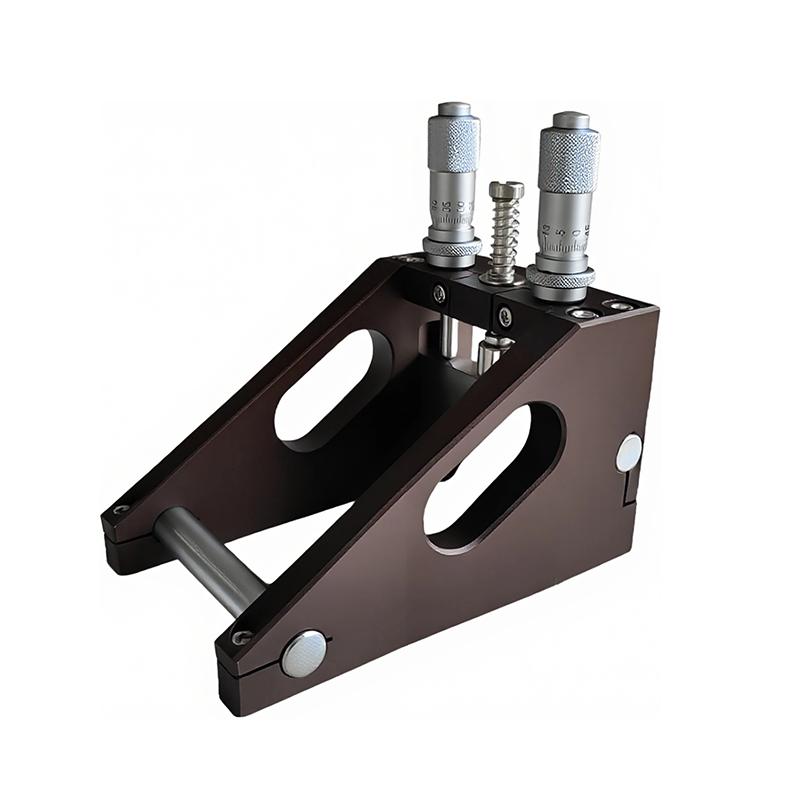

HuiNuo Adjustable Producer KTQ-55 is a film Film thickness adjustable Film Applicator. Adjust the drawdown blade gap through the upper two scale differential heads to control the coating thickness. Graduation of the differential head is 10 μm. The film range of this product is adjustable from 0 to 5000 microns, accuracy +/- 5 μm, the frame is made of aluminum hard oxidation, and the drawdown blade is made of die steel.
Features
1. Non-digital scale differential head, Graduation 10μm
2. Die steel drawdown blade material, with high hardness, Abrasion Resistance and corrosion resistance
3. Large range, adjustable from 0 to 5000 microns
4. Spreader width is 55mm
5. drawdown blade straightness +/- 2μm
Principle
The adjustable fabricator adjusts the drawdown blade up and down to control the gap by adjusting the two differential heads above, and the gap size is the final coating thickness. The KTQ series uses a scale differential head to display Film thickness through scale.
Specifications
Type: removable drawdown blade, wet film thickness: 0~ 5000μm, Spreader width: 55mm, accuracy ： +/- 5μm, rack material process: aluminum hard oxidation, drawdown blade material process: die steel, differential head: scale differential head, drawdown blade Straightness: +/- 2μm, Differential head Graduation: 10μm
