Overview

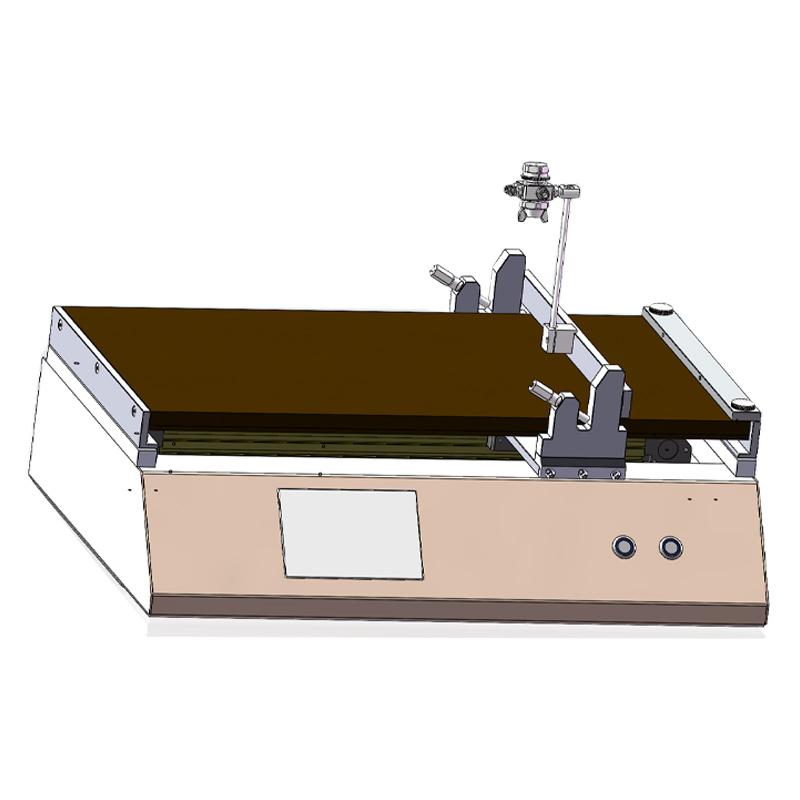

TM1000SPpro automatic lame plating machine has excellent performance, lame plating movement rate 1-300mm/s, accuracy up to +/- 1%, Spreader Travel is flexible, supports up to 600 * 300mm substrate, can spray thickness 0.01~ 13mm (higher customizable). Equipped with 1L stainless steel pressure bucket, Coating discharge volume 60-290L/min, adjustable spray radiation, in line with ASTM D823 standard. 5 inch touch screen control, convenient operation, low energy consumption, to meet various lame plating needs.
Features
1.Wide range of lame plating speed (1-300mm/s) and high accuracy (+/- 1%)
2. Spreader Travel Flexible Adjustable (10~ 400mm)
3. Support large-size substrates (up to 600 * 300mm) and various thicknesses (0.01~ 13mm, higher customizable)
4. Equipped with 1L stainless steel pressure drum, Coating discharge capacity is large (60-290L/min)
5. Wide adjustable range of radiation (50-250mm)
6.5-Inch touch screen control, easy to operate
7. Low energy consumption (100W)
8. Adopt closed-loop motor drive
Principle
The automatic lame plating machine adopts a pressure-fed Coating supply method. The Coating is pressurized to the nozzle through a 1L stainless steel pressure bucket, and the Coating is sprayed (60-290L/min) under the action of air pressure (0.3Mpa). Accurate lame plating is achieved by precisely controlling the movement rate of lame plating (1-300mm/s) and Spreader Travel (10-400mm) through a closed-loop motor.
Applications
Film testing, substrate lame plating, Coating application testing
Steps
1. Connect AC 220V 50Hz power supply
2. Set lame plating parameters (movement rate, Spreader Travel, etc.) through a 5-inch touch screen
3. Mounting substrate (maximum 600 * 300mm)
4. Adjust the spoke size (50-250mm)
5. Start the lame plating program
6. Monitor the lame plating process
7. Turn off the device after finishing lame plating
Notice
• The maximum test cardboard thickness is 10mm
• Maximum test substrate thickness is 10mm
• Maximum width of lame plating is 250mm
• Air usage is 40-170L/min
• The air pressure needs to be maintained at 0.3Mpa
• Equipment Dimension 440 * 660 * 550mm (including nozzle)
• Overall weight is 45kg
