Supports a variety of processes such as extrusion coating, Spreader window width for a variety of viscosity, coating accuracy of +/- 2μm, can be used in glove box argon atmosphere, equipped with vacuum suction plate and Touchscreen control.
Category : Automatic Film Applicator
Brand : TaiGang
SKU : NB050256
Service :The delivery and service By NBCLab.Com

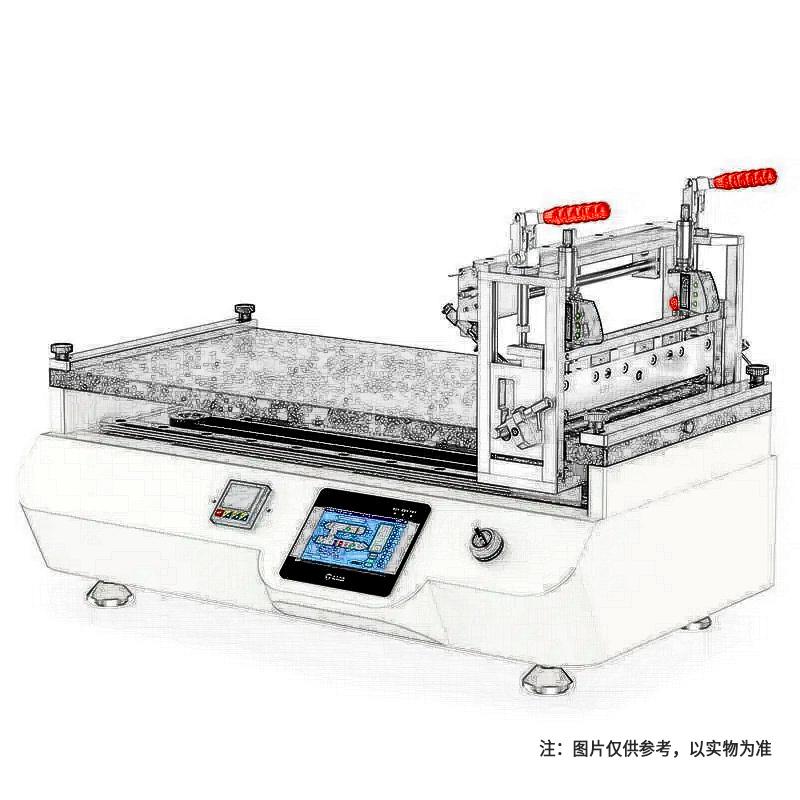

NBC-XF200L extrusion slot-die flat plate Coater is a device applied to the surface coating of sheet substrates. It can be coated with drawdown blade coating, bar coating, slot-die coating, 4-sided Moulding coating and other coating processes. Mainly used for laboratory research and development, it can work in a glove box, and is suitable for surface coating of sheet substrates in various types of glues, lithium battery substrates, OLEDs, solar photovoltaic films and polymer conductive films.
1. Using a variety of coating processes, high coating accuracy and good conformity 2. Spreader window is wide, applicable viscosity 3. Coated substrate optional vacuum suction plate, built-in vacuum pump, substrate can be uniform adsorption on the surface of Spreader plate 4. Can be used in an argon atmosphere in the glove box 5. Touchscreen operation, device parameter adjustment, storage and control are convenient and fast 6. A variety of Coaters are available
Brief description of the principle of the equipment: Different Coaters are installed on the Spreader moving frame, and the frame drives the Coater to evenly coat the slurry on the substrate. Extrusion coating process: After the Coating enters the coating die, it flows out through the discharge port through pressure distribution and coats on the surface of the substrate to form the target coating. The shape and size of the coating are controlled by adjusting the shape and size of the gasket. The Coating thickness size is affected by the feeding speed and the coating speed.
Various types of glue, lithium battery substrate, OLED, solar photovoltaic film, polymer conductive film
1. Select the appropriate applicator to install on the Spreader moving frame 2. Adjust gasket shape and size control coating shape and size 3. Set the feed speed and coating speed 4. Adjust device parameters through Touchscreen 5. Start the equipment for coating operation
• Coating accuracy is affected by various factors such as die accuracy, die adjustment accuracy, Spreader plate flatness, traverse speed accuracy, feeding accuracy and Coating characteristics • The thickness of the gasket should be selected according to the viscosity of the solution • The device can be used in an argon atmosphere in the glove box • Feeding system Pipes and Accessories are made of stainless steel, resistant to acid, alkali and organic solvent corrosion
We recommend considering the Taigang NBC-XF200L extrusion slot-die coater. This equipment is specifically designed for laboratory research and development, featuring a compact size that allows it to operate directly within the argon atmosphere of a glove box. It is particularly suitable for coating atmosphere-sensitive materials such as lithium battery substrates. The device supports multiple processes, including slot-die coating, and offers high coating precision and consistency, meeting the stringent requirements for coating uniformity in R&D applications.
For adhesives with a viscosity ranging from 100 to 7000 mPa·s, the Taigang NBC-XF200L is an excellent choice. It features a wide coating window and is specifically designed to accommodate various viscosities. Particularly, its extrusion coating function, equipped with a precision die head and an adjustable feeding system, ensures stable and uniform application of high-viscosity slurries onto substrates, effectively preventing coating unevenness caused by high viscosity.
If high precision and adjustability of coating thickness are required, it is recommended to choose the extrusion slot coating function of this device. It controls the coating through a high-precision die head (lip straightness ≤3 μm) and a precise gap adjustment mechanism (adjustable from 10 μm to 10 mm, with a maximum precision of 1 μm). Combined with servo motors for precise control of the feeding speed, it can achieve a high coating accuracy of ±2 μm, and the thickness adjustment is highly flexible, making it suitable for scenarios in research and development that require frequent parameter adjustments.
For the precise coating of OLED materials, the Taigang NBC-XF200L is an excellent choice. Its coating accuracy can reach ±2 μm, and it has a wide coating window, capable of handling adhesives or solutions with viscosities ranging from 100 to 7000 mPa·s. It is suitable for coating materials commonly used in OLEDs, such as polymer conductive films. The equipment is equipped with a high-precision die head and adjustable coating parameters, ensuring uniform and smooth coatings to meet the high-standard process requirements of OLED devices.
