Overview

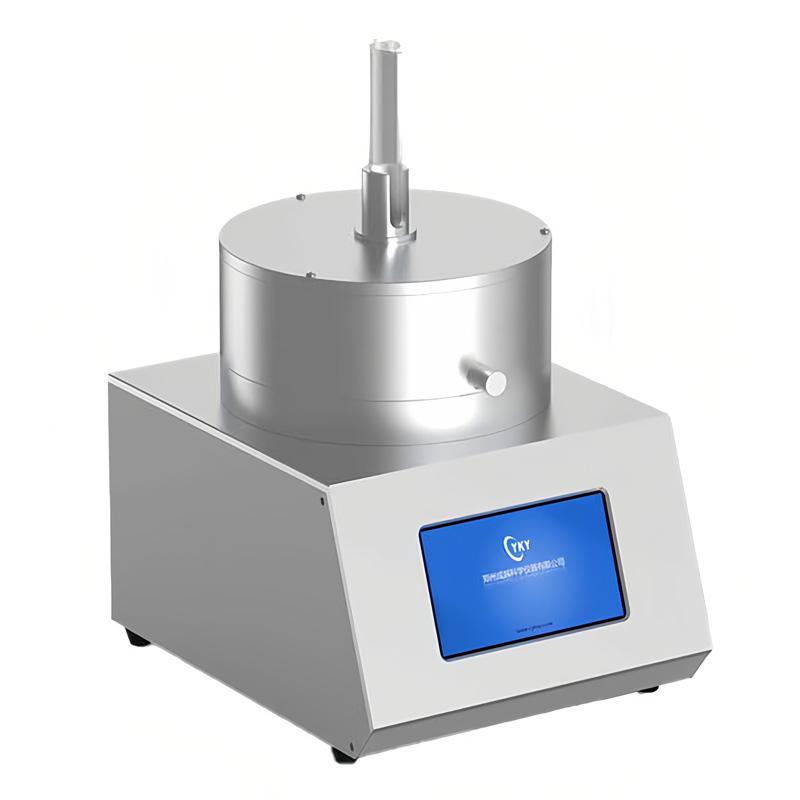

The HN-SPC8-SS heating type spin Coater adopts a stainless steel cavity, which is beautiful and sturdy. The instrument adopts an advanced precision motor, and the Rotation speed can reach 10,000 rpm, which effectively guarantees the uniformity of film formation. In addition to the basic spin coating function, this product is also equipped with a heating component, which can be heated to 200 ° C. It is controlled by an intelligent temperature control meter. The temperature measurement is accurate, and the heating process is completely controllable. In addition, this instrument adopts touch screen control, which can preset Linear dispersion, which greatly simplifies the use process and reduces the learning cost. It is very suitable for laboratory purchase.
Features
1. Adopt stainless steel cavity, beautiful and sturdy
2. Precision motor, Rotation speed up to 10000 rpm, ensure film formation uniformity
3. Equipped with heating components, can be heated to 200 ℃
4. Intelligent temperature control meter, accurate temperature measurement, controllable heating process
5. Touch screen control, Linear dispersion can be preset
6. Can store 5 Linear dispersions, each Linear dispersion 5 segments
7. Applicable substrate diameter ≤ 8 inches (200mm)
8. Equipped with dry mechanical pump, pumping rate 50L/min
Principle
The instrument drives the substrate swirl/spin through a precision motor, and uniformly coats the liquid or colloidal material on the surface of the substrate under the action of centrifugal force to form a thin film. At the same time, the substrate is heated through the upper cover heating component, and the heating temperature is precisely controlled by the intelligent temperature control meter to realize the temperature control during the spin coating process.
Applications
Photoresist spin coating, bio-foster base fabrication, sol-gel method of polymer film fabrication
Steps
1. Prepare the substrate and coating materials
2. Manual glue drop or use precision injection pump glue drop
3. Set the Linear dispersion parameter on the touch screen
4. Start the equipment to spin coating
5. Set the heating temperature as needed
6. Remove the substrate after spinning coating
Notice
• Applicable substrate diameter must not exceed 8 inches (200mm)
• Heating Temperature range from room temperature to 200 ℃
• Power supply voltage AC220V 50/60Hz
• Make sure the air extraction interface is connected correctly before use
• Pay attention to the running status of the equipment during operation
• Regular maintenance of equipment
