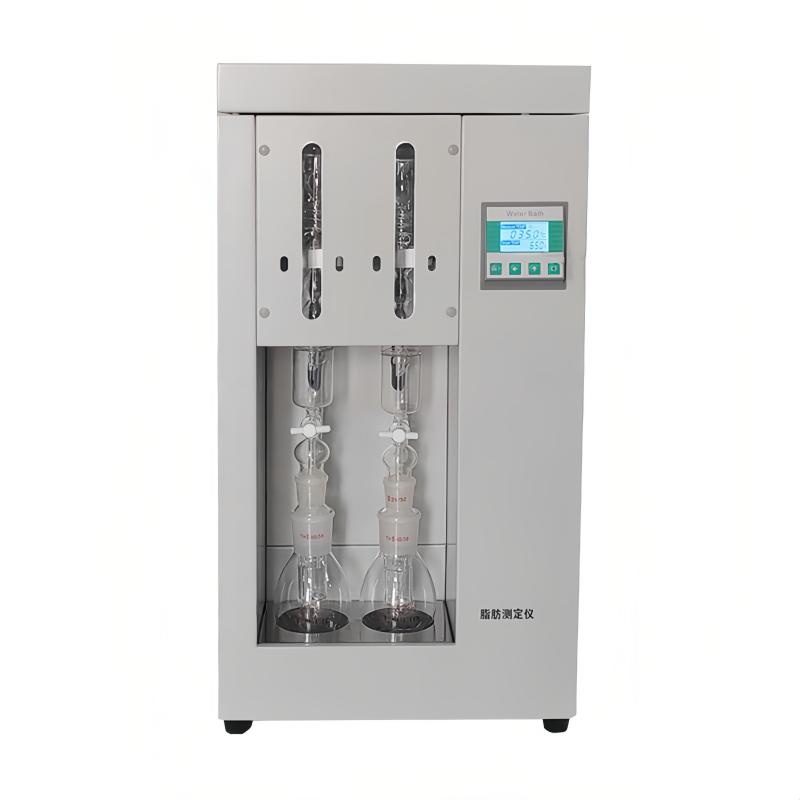

QIWEI QW-SZF-02A fat Meter, crude fat Meter, oil content 0.5-60% measuring range

Name: QIWEI QW-SZF-02A fat Meter, crude fat Meter, oil content 0.5-60% measuring range
Brand: QiWei
SKU: NB050293
Price: 423.0 USD
Availability: InStock

$ 423.00Ex works

The fat content was determined by Soxhlet extraction principle, the measurement range was 0.5% -60%, and two samples could be processed at the same time.

Model

QW-SZF-02A

Get Quote

Category : Other Instruments

Brand : QiWei

SKU : NB050293

Service :The delivery and service By NBCLab.Com

Overview

QW-SZF-02A fat measuring instrument is a product introduced by QIWEI brand with new technology for fat measurement. It has reasonable design, stable performance, high Accuracy, and time-saving and labor-saving operation. The instrument is a reliable equipment for fat measurement in food, fat, feed and other industries. The measurement results meet the national (GB5512-85) standard, and the indicators and performance meet the requirements of imported congeneric products.

Features

1. Reasonable design, stable performance and high Accuracy 2. Operation saves time and effort 3. The measurement results meet the national (GB5512-85) standard 4. All indicators and performance meet the requirements of imported congeneric products 5. Two samples can be determined simultaneously 6. Adjustable heating temperature according to Reagent Boiling Point and Ambient Temperature 7. Glass grinding mouth connection complete set sealing performance is good

Principle

This instrument is based on the principle of Soxhlet extraction and weight determination method to determine fat content. The fat is dissolved in an organic solvent, the fat is separated from the solvent by extraction method, and then dried, weighed, and calculated fat content. It is mainly composed of three parts: digital electric heating and constant temperature water bath heating extraction, solvent condensation recovery, and digital automatic temperature control. The sample is extracted with anhydrous ether or petroleum ether and other solvents and then evaporated to remove the solvent to obtain fat or crude fat.

Applications

Food, fat, feed, oil, fat products

Standards

GB5512-85

Steps

1. Adjust heating temperature according to solvent boiling point and Ambient Temperature 2. Manually move the condenser up and down separately 3. Samples are extracted with solvents such as anhydrous ether or petroleum ether 4. Steam off the solvent to obtain fatty substances 5. Drying, weighing, and calculating fat content

Notice

• Pay attention to the safe use of solvents during operation • Adjust heating temperature according to Reagent Boiling Point and Ambient Temperature • Ensure that the condenser, extractor, extraction bottle Glass grinding connection and sealing are good • Power supply voltage AC220V, 50HZ

Measurement Range
Grain, feed, oil and various fat products with an oil content in the Range of 0.5% to 60%
Determination sample
2
Heating power
Water bath heating 350W
Temperature Range
Room temperature + 5~ 100℃
Power supply Voltage
AC 220V 50HZ
Dimension
380*240*700mm
weight
16Kg
