Overview

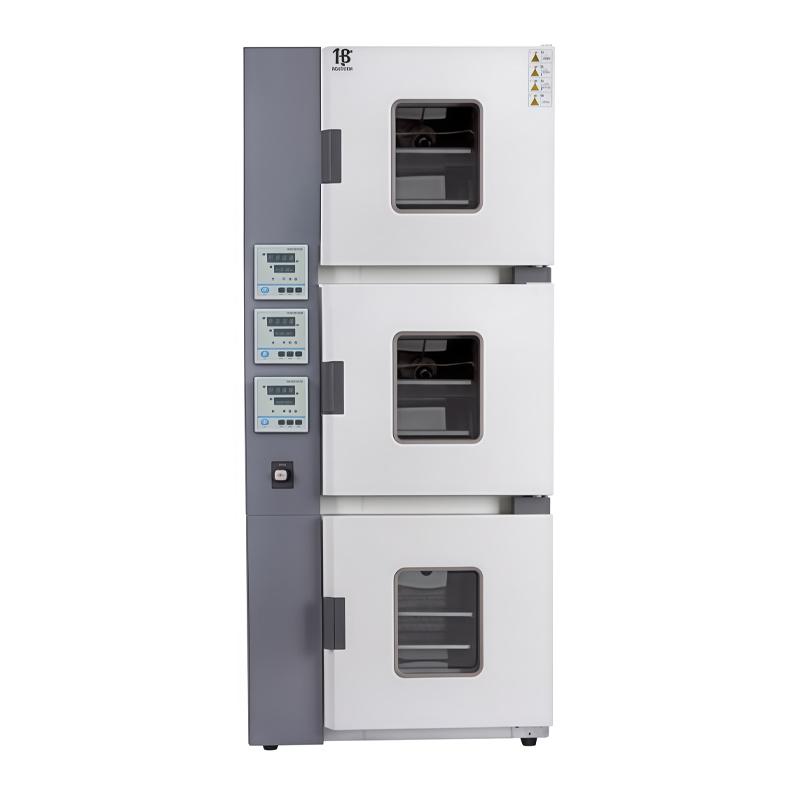

BENTING CBGL-100B-3 superimposed oven adopts vertical design, the box is made of 1.5mm thick high-quality steel plate and high-luminance mirror finished coated lame plating, and the studio is made of 1.5mm thick 201 #stainless steel with anti-corrosion treatment, which is highly durable. Blow heating and vertical hot air circulation on the back of the fan ensure uniform temperature distribution.
Features
1. Adopt vertical design, the box is 1.5mm thick high-quality steel plate, surface high-luminance mirror finish coating lame plating, Appearance exquisite and bright.
2. The studio is made of 1.5mm thick 201 #stainless steel and treated with anti-corrosion technology, resulting in a significant improvement in durability.
3. The four corners are in a circular arc transition, and the Shelf spacing is adjustable up and down.
4. Blow heating design on the back of the fan, vertical hot air circulation, so that the temperature distribution in the working room is more uniform.
5. The box door adopts a new structure, with good thermal insulation effect, double-decked tempered Glass large viewing window in the middle, and high temperature silicone sealing strip to ensure good sealing to prevent heat loss.
6. The heating method adopts 304 #stainless steel with heat sink heating tube.
7. PID liquid crystal display temperature controller, microcomputer temperature control, accurate temperature control, dedicated function keys to achieve temperature setting, auxiliary menu to achieve over-rise alarm, deviation correction, menu confirmation.
8. Specifications include Power supply voltage 380V/50HZ, Temperature range RT~ 200 ℃, thermostatic Fluctuation +/- 1.0 ℃, Temperature resolution 0.1 ℃, Temperature Uniformity +/- 3, Heating power 1600W * 3, Inner Chamber dimensions (580 * 450 * 400) * 3mm, Shelf number 2 pieces (single box) * 3, shelf load 50KG, lock door handle, Timer Range 1-9999min.
Principle
Oven through the fan back blower heating and vertical hot air circulation system, so that the hot air in the studio forced convection to ensure uniform temperature distribution. 304 #stainless steel with heat sink heating tube for heating, PID liquid crystal display temperature controller and microcomputer system to precisely control the temperature.
Steps
1. Connect the power supply and ensure that the voltage is 380V/50Hz.
2. Use the dedicated function keys to set the required temperature.
3. Adjust Shelf spacing as needed.
4. Start the fan and heating system.
5. Monitor the temperature through the PID liquid crystal display temperature controller.
6. Set Timer Range 1-9999min.
7. Use the locking door handle to close the box door.
