Overview

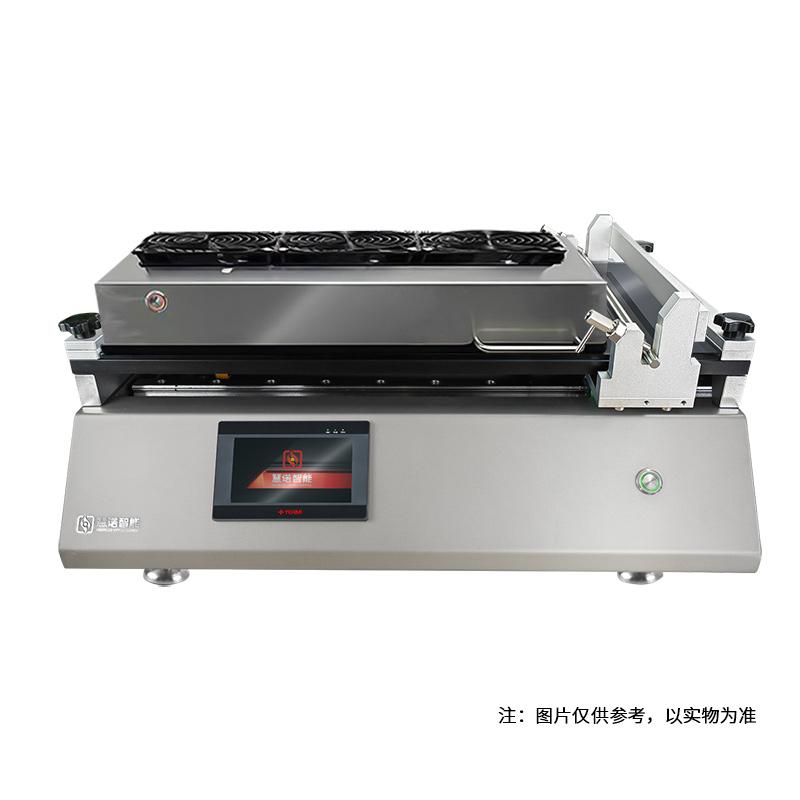

Automatic Film Applicator is a device for intermediate coating film in laboratories. It replaces manual film and automatically films to improve film accuracy and efficiency. This Film Applicator is a basic bar Coater. It adopts a new bar Installation method with speed control and application length adjustment functions. It is suitable for High Accuracy automatic film in laboratories and Moulding proofing in laboratories such as university research institutes, New material, and lithium batteries.
Features
1. Glass countertop is 3c certified national standard genuine all tempered Glass plate, gold crystal original sheet, heat resistance 600 ℃, scratch resistance
2. High Accuracy Film Applicator, high accuracy of original imported bar film
3. Aluminum alloy hard oxidation surface preparation Spreader baseplate, wear-resistant flat, with Smoothness accuracy calibrated certificate
4. Touchscreen control panel, easy to operate
5. Free adjustment of application length and Spreader speed
Principle
The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Polymer materials, pharmaceuticals and other film samples
Steps
1. Fix the substrate on the Spreader table
2. Set application length and Spreader speed parameters through Touchscreen
3. Select and install the right bar Film Applicator
4. Start the device for automatic filming
5. Optional UV light curing function for subsequent processing
Notice
• Glass countertop heat resistance 600 ℃, avoid overtemperature use
• The meyer rod coating accuracy is +/- 0.001mm, and the bar specification needs to be selected correctly
• The coating table material can be selected from aluminum alloy or Glass table, which needs to be confirmed with customer service
• Device power 600w, need to use 220V/50HZ power supply (can be customized 110V/60HZ)
• Pay attention to safety protection when using UV light curing function
• Optional features include drawdown blade, heating, Vacuum chuck, depending on requirements
