Overview

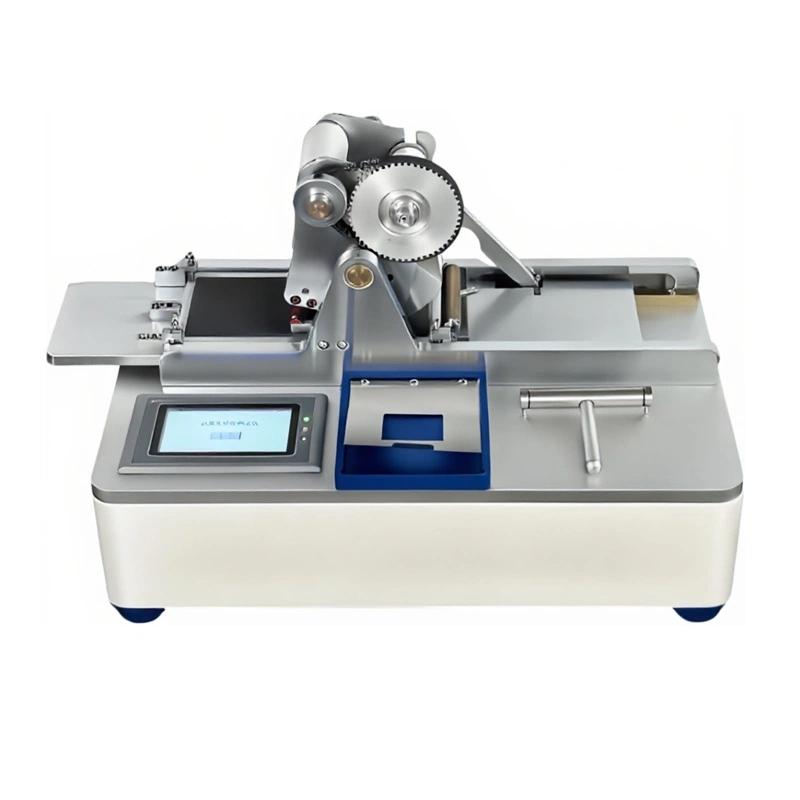

JH-YXS-A type printing Ink Absorption tester is an instrument for measuring the absorption performance of standard inks on paper or Cardboard over a certain time and area. Ink Absorption of paper and Cardboard refers to the acceptance of inks by paper and the absorption capacity of vehicles in inks, which directly affects the penetration of inks to paper and conjunctiva, and affects the drying and surface performance of paper ink film.
Features
1. Adopt 4.3 "color Touchscreen control, easy to operate
2. The ink wiping speed is precisely controlled to 15 +/- 0.5cm/min
3. The opening area of the ink-coated platen is accurate to 20 +/- 0.4cm ²
4. The ink absorption time is precisely controlled to 120 +/- 5s
5. Strong environmental adaptability, Temperature range 20 +/- 10 ℃, Humidity < 85%
Principle
This instrument applies standard inks on the surface of paper or Cardboard by inking platen, and under the specified time (120 +/- 5 seconds) and area (20 +/- 0.4cm ²) conditions, determines the absorption performance of the sample to inks, reflecting the acceptability of the paper to inks and the absorption capacity of the vehicle.
Applications
Paper making, printing, Encasement inks Absorption performance
Standards
QG/T1 2911-91 Determination of Absorbency of Cardboard inks
Notice
• Operating Ambient Temperature should be kept within the range of 20 +/- 10 ° C
• Environmental humidity should be less than 85%
• 220V +/- 10% power requirements at 50Hz
• The instrument weight is 33kg, pay attention to safety when handling
• Check whether the thickness of the ink-coated platen is 0.1mm before use
