Overview

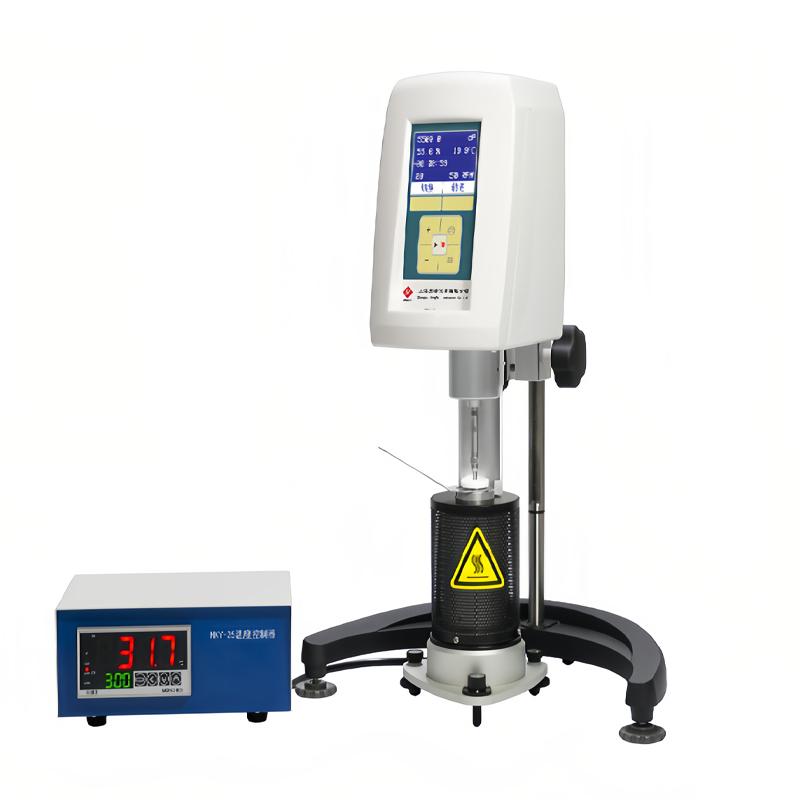

The FANGRUI LV-SSR-H Viscometer is an SSR series digital rotational viscometer with a coaxial cylindrical structure and a small sample adapter. Only 7ml-13ml of sample is required per measurement (21ml for No. 0 rotor). Optional thermostatic water jacket with circulation, with Thermostatic bath to control the temperature of the sample. The product is easy to operate and accurate in measurement, especially for viscosity measurement of precious and small samples.
Features
1. The front design of the horizontal bubble, the level can be adjusted by sitting, and the operation is convenient
2. With timing measurement function
3. Adopt coaxial cylindrical structure
4. Measurement accuracy to two decimal places
5. Easy and reliable operation
6. Use a small number of sample adapters, with minimal test sample requirements
7. Equipped with two RS232 interfaces, it can be directly connected to micro thermal printers and computers
Principle
The SSR series digital rotational viscometer uses a coaxial cylindrical structure to measure viscosity values by the resistance of the rotor swirling/spinning in the sample. With a small sample adapter, accurate measurements can be completed with a small number of samples.
Applications
Grease, paints, Coatings, Stock, Spinning & weaving, Food, Adhesives, Cosmetics
Steps
1. Adjust the horizontal bubble to the horizontal position
2. Choose the right rotor and Rotation speed
3. Add 7-13ml of sample (21ml for rotor 0)
4. Start measurement, select timing function
5. Read and record viscosity data
6. Can be connected to a printer or computer through RS232 interface to output data
Notice
• Ensure the level of the instrument before measurement
• The sample volume should be controlled within the range of 7-13ml according to the rotor type (21ml for No. 0 rotor)
• measurement error of +/- 2% (Newtonian liquid)
• Sexual repeability error of +/- 1% (Newton fluid)
• Optional thermostatic water jacket for temperature control
• Pay attention to the maintenance of stainless steel rotors when cleaning
