Overview

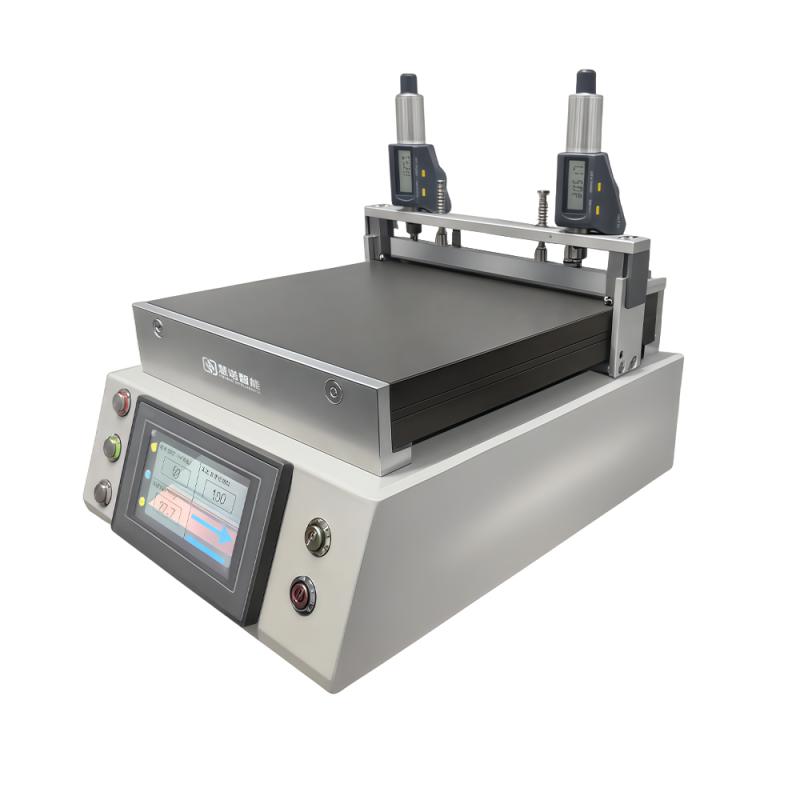

Automatic Film Applicator is a device for intermediate coating film in the laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. This Film Applicator is a small film Applicator that can be used in glove boxes. It adopts bar and drawdown blade double coating method. The separable tool holder is designed to be easy to clean. The magnetic drawdown blade realizes quick replacement. The closed-loop motor drive precisely controls the scraping distance and speed. The planetary gear reducer + rack and pinion drive is more reliable and durable.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Separable tool holder for easy cleaning, magnetic drawdown blade for easy replacement
4. Equipped with High Accuracy Film Applicator, the original imported bar film has high uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. Vacuum chuck and heating
8. Close-loop motor drive precisely controls scraping distance and speed
9. Planetary gear reducer + rack and pinion drive is more reliable and durable
Principle
The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate (e.g. Glass, cardboard, fabric) and fix it on the coating table
2. Choose the bar or Blade Coating method as needed
3. Set application length and Spreader speed parameters through Touchscreen
4. Start the device for automatic filming
5. Clean up the Spreader head and countertop after the Spreader is completed
Notice
• Make sure that the power supply of the equipment meets the requirements before use (100V~ 220V/50~ 60HZ)
• Pay attention to the heating temperature of the coating table during operation to avoid burns
• Regularly clean the separable tool holder and coating table
• When replacing drawdown blades, use magnetic suction design to ensure firm installation
• Vacuum chuck function ensures that the substrate is placed flat when used
• Customized parameters need to confirm the equipment support range in advance
