Overview

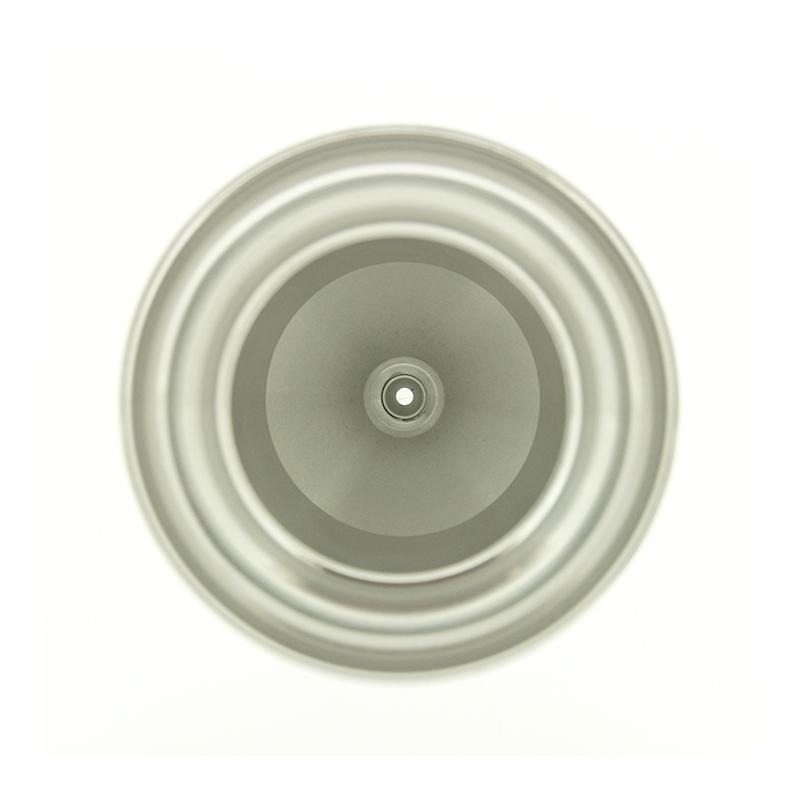

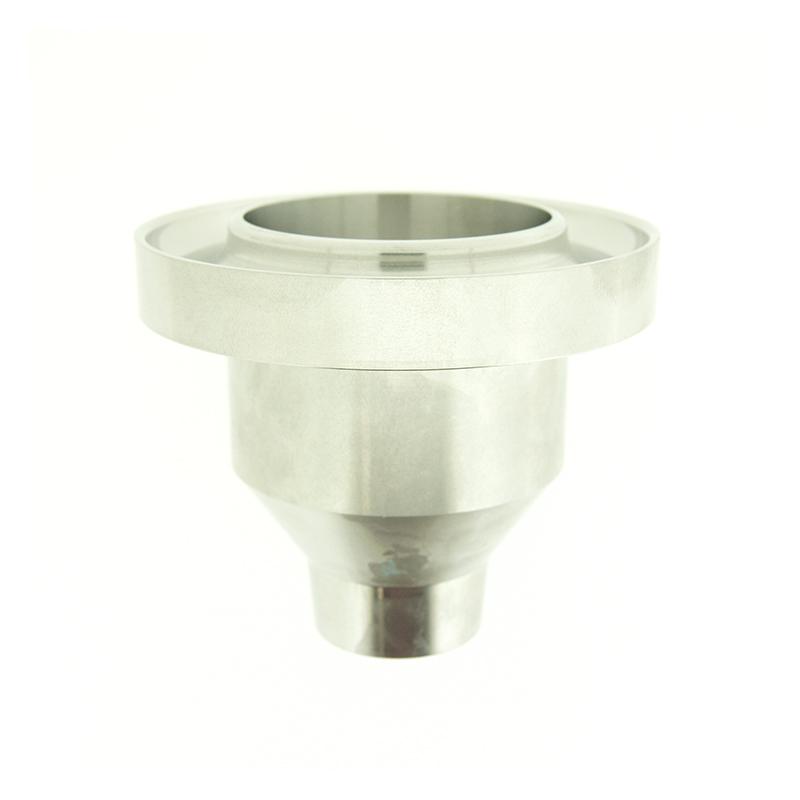

The TQC VF2015 stainless steel DIN cup is a viscosity measurement tool according to the DIN 53211 international standard, with a filter diameter of 4mm and made of stainless steel. The product is suitable for industries such as Coatings, paints, inks, etc. Each cup has a unique serial number and is designed to quickly assess the viscosity and conformity of Newtonian or near newtonian fluids such as Coatings, paints, inks, pigments.
Features
Compliance with DIN 53211 international standards
2. Filter diameter 4mm, high accuracy
3. Stainless steel material, strong durability
4. Each product is engraved with a unique serial number
5. Suitable for Coatings, paints, inks and other industries
6. Designed for rapid viscosity assessment
Principle
Viscosity cup evaluates viscosity by measuring the time it takes for the liquid to flow out of the bottom hole of the cup. The liquid outflow process is used to calculate kinematic viscosity, usually recording the outflow time in seconds, which is then converted into dynamic viscosity units by the disc viscosity calculator, so it is also called flow cup. This method is suitable for concentration testing of similar products such as Coatings, paints, etc.
Applications
Coatings, paints, inks, pigments
Steps
1. It is recommended to buy a standard viscosity cup with calibrated certificate to ensure accuracy
2. When measuring, compare the product to be tested with the standard viscosity cup measurement results
3. Draw correction charts
4. Correct the outflow time through the chart to obtain the correct test results
Notice
It is recommended to use a standard viscosity cup with calibrated certificate to ensure accurate measurement
• Measurement results need to be corrected by comparing standard samples
• Pay attention to the recording and chart correction of outflow time
