Factory direct sales Rjy-00/1000 immersion coil Coater dip coating double roll extrusion automatic tension control

Name: Factory direct sales Rjy-00/1000 immersion coil Coater dip coating double roll extrusion automatic tension control
Brand: Factory
SKU: NB050508
Price: 31945.0 USD
Availability: PreOrder

$ 31945.00Ex works

Using the immersion coating method, Spreader thickness 0.3-10 mm adjustable, mechanical speed 1.2m/min, built-in glue circulation system to ensure uniform and stable Spreader.

Model

Rjy-00/1000

Get Quote

Category : R2R Coater

Brand : Factory

SKU : NB050508

Service :The delivery and service By NBCLab.Com

Overview

Rjy-00/1000 immersion coil Coater is a factory-sold drum substrate Spreader production winding equipment, using immersion coating method, suitable for Spreader processing of PET or Miscellaneous non-breakable materials.

Features

1. Single-station unwinding unit, equipped with inflatable shaft and automatic tension Control system 2. The front traction unit adopts a double-roll anti-roll structure, with a rigid and flexible combination 3. The bath has a built-in circulation system, which can be exchanged and filtrated with external solvents 4. The extrusion unit adopts double-roll extrusion method, and the thickness of the Spreader can be adjusted 5. Equipped with Teflon guide roller and bearing platform to ensure neat coiling edges

Principle

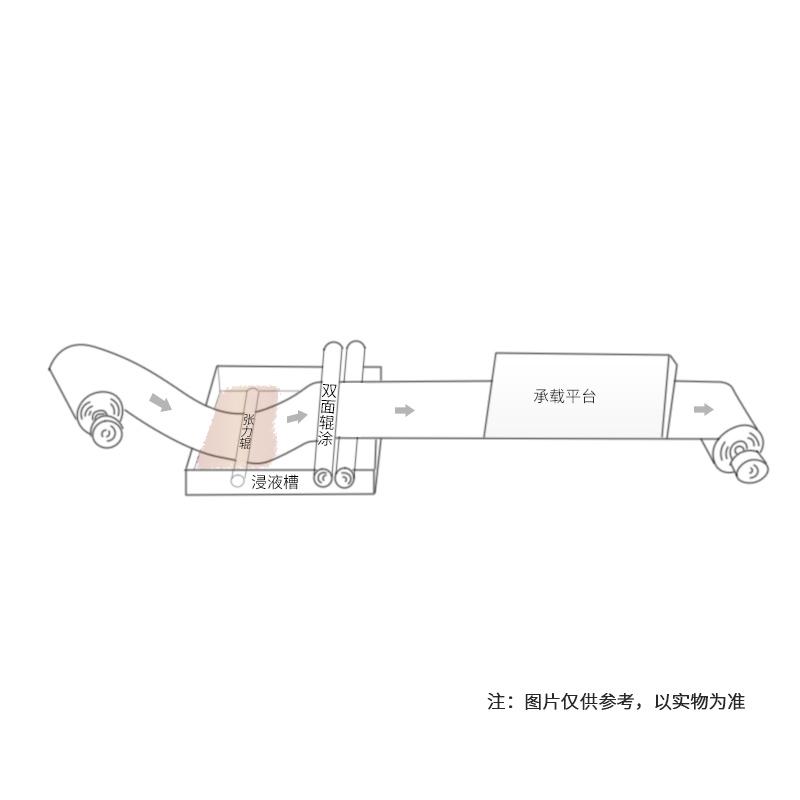

The equipment adopts the process of unwinding → dipping coating (built-in glue circulation system) → double-roll extrusion → pulling out the bearing platform. The substrate enters the soaking tank through the unwinding unit for Spreader, and then passes through the double-roll extrusion to control the thickness of the Spreader, and finally completes the winding through the bearing platform.

Applications

Spreader Production of Reel Substrate

Steps

1. Unwinding: Install the reel substrate to the unwinding unit 2. dip coating: Spreader the substrate through the bath 3. Extrusion: Spreader thickness controlled by twin roll extrusion 4. Winding: Complete the winding through the carrying platform

Notice

• The solution cannot chemically react with the material of the bath • The production speed needs to be adjusted according to specific process requirements • Device size and weight are subject to actual customization • Total installed Power is subject to actual customization • Make sure the power supply is three-phase five-wire 380V 50Hz before use

Spreader process
Unwinding → dip coating → double roll extrusion → winding
main substrate
PET or other non-breakable materials
glue
Water-based paints, solar-based paints and Miscellaneous
Spreader thickness Range
Adjustable according to the process (formed)
coating method
soak
Bath Size
1500Mm length * 1000mm width * 300mm depth (built-in circulation system, can be exchanged with external solvents to filtrate)
Bath material
Resistant corrosion stainless steel (note, the solution cannot react chemically with the material)
Dip tank guide roller
2 sticks
Effective application width
Max.1000mm
substrate width
Less than 1000mm
Roll surface width
1000mm
Extrusion method
Double roll extrusion
Extrusion adjustable Range
0.3-10mm
Squeeze Spreader Adjustment
Handwheel adjustment, dial indicator display
Mechanical speed
1.2M/min (0.1~ 1m/min production speed, depending on the process) The speed can be adjusted slowly
unwinding diameter
≤ Φ 400mm (paper core 3\
winding diameter
≤ Φ 500mm (paper core 3\
Reel the edges neatly
±3.0mm
Total Power
About 5kW (subject to actual customization)
Dimension
(L x W x H) According to process changes and final design drawings
Teflon roller
4 pieces (installed in front of the Spreader head)
Power supply Voltage
Three-phase five-wire 380V 50Hz
unwinding Type
Single station
Effective unroll width
1000mm
Effective unwinding diameter
≤Φ400mm
Put the scroll
3\
Unwinding tension control
Automatic tension control, magnetic particle brake, tension controller
Front traction steel roller
Φ42x1000mm
Front traction motor
SEND/0.75Kw (servo control)
conclusion
1 meter bearing platform
Dimension
About L5000mm x W1300mm x H1500mm (Note: subject to actual customization)
Device weight
About 1t (subject to actual customization)

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
