Overview

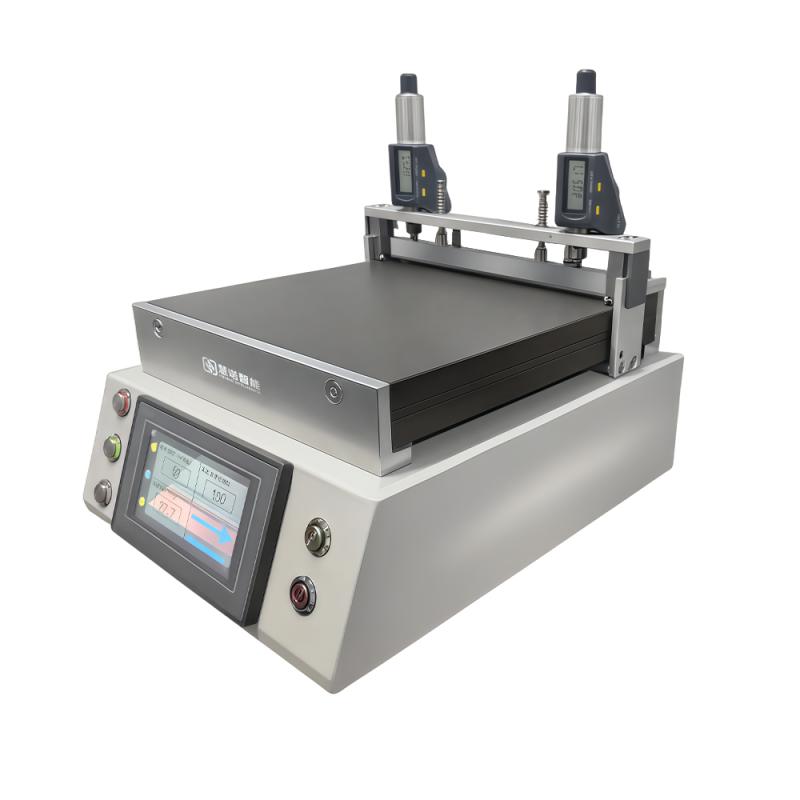

Automatic Film Applicator is a device for intermediate coating film in the laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. This Film Applicator is a small film Applicator that can be used in glove boxes. It adopts bar and drawdown blade double coating method. The separable tool holder is designed to be easy to clean. The magnetic drawdown blade realizes quick replacement. The closed-loop motor drive precisely controls the scraping distance and speed. The planetary gear reducer + rack and pinion drive is more reliable and durable.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Separable tool holder for easy cleaning, magnetic drawdown blade for easy replacement
4. Equipped with High Accuracy Film Applicator, the original imported bar film has high uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. Vacuum chuck and heating
8. Close-loop motor drive precisely controls scraping distance and speed
9. Planetary gear reducer + rack and pinion drive is more reliable and durable
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. The closed-loop motor is used to precisely control the scraping distance and speed, and the film process is assisted by Vacuum chuck and heating functions.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate and samples
2. Set Spreader parameters (application length, Spreader speed, etc.) through Touchscreen
3. Secure the substrate to the Spreader stage (using Vacuum chuck or fixture)
4. Select coating method (bar or drawdown blade)
5. Start the device for automatic filming
6. Remove the sample after the film is completed
Notice
• Please read the operating instructions carefully before use
• Power supply voltage matches equipment requirements (100V~ 220V/50~ 60HZ)
• The size and weight of the coating table are subject to the actual product
• Pay attention to temperature control when using the heating function
• Regularly clean separable tool holders and coating tables
• Make sure the connection is normal when the vacuum pump is working
• Customized functions need to confirm specifications in advance
