Overview

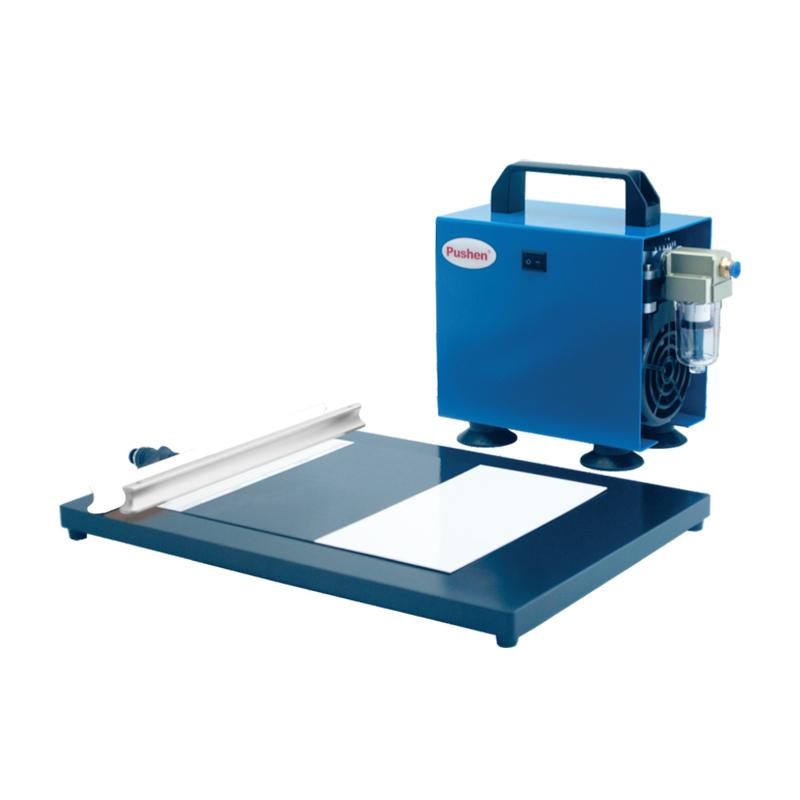

AFA-III vacuum coating table adopts the principle of Vacuum chuck, and the substrate is adsorbed flat on the vacuum Spreader stage for Moulding. Product specifications include Vacuum aperture diameter 1mm, Vacuum hole pitch 18mm, hole number 176mm, vacuum pump voltage 220V, vacuum pump Power 150W, Drawdown Vacuum Plate size 360 * 250mm, vacuum pump size 260 * 210mm.
Features
1. Vacuum chuck principle is used to ensure that the substrate is flat and fixed
2. Factory direct sales model, providing direct procurement channels
3. Precision vacuum hole design, hole diameter 1mm, hole spacing 18mm, a total of 176 holes
4. Equipped with 220V vacuum pump, Power 150W
5. Drawdown Vacuum Plate size 360 * 250mm, moderate working area
Principle
Vacuum chuck the substrate on the surface of the coating table to maintain a flat state and facilitate the Moulding operation.
Steps
1. Place the substrate on the surface of the vacuum coating table
2. Start the vacuum pump to generate adsorption
3. Moulding starts after confirming that the substrate is flat and fixed
4. Turn off the vacuum pump after completing Moulding
5. Remove the processed substrate
Notice
• Make sure the vacuum pump voltage meets the 220V requirement before use
• Pay attention that the vacuum hole is not blocked during operation
• Regularly check the working status of the vacuum pump
• Keep the surface of the coating table clean
Avoid use in humid environments
