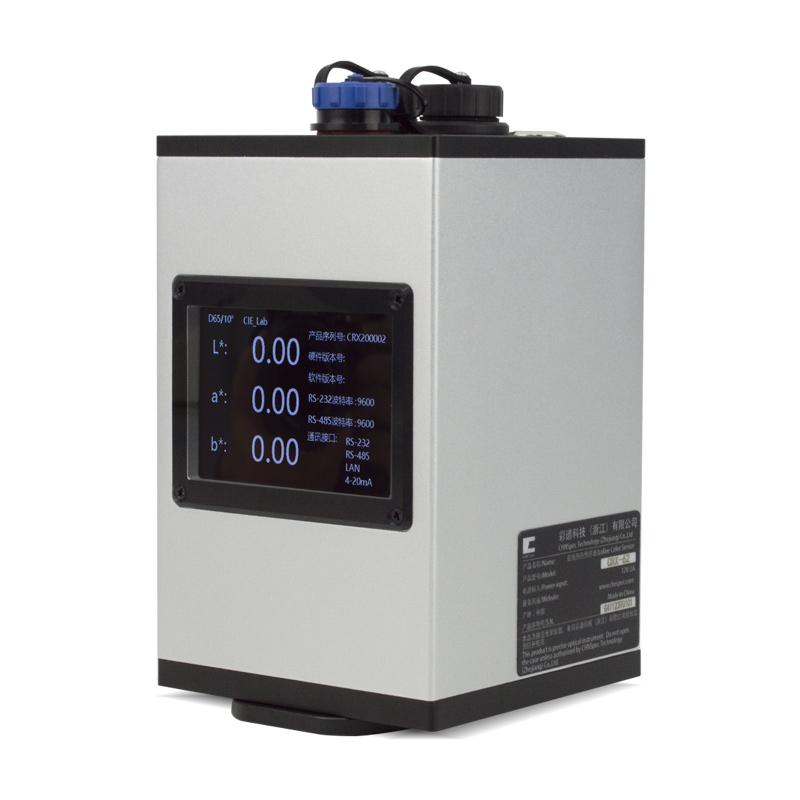

CHNSPEC CRX-66 Online Color Sensor 45/0 Construction, Non-Contact Colorimeter

Name: CHNSPEC CRX-66 Online Color Sensor 45/0 Construction, Non-Contact Colorimeter
Brand: CHNSpec
SKU: NB050543
Price: 3946.0 USD
Availability: InStock

$ 3946.00Ex works

Adopt 45/0 structure, measurement Repeatability dE * ab ≤ 0.02, Inter-instrument Agreement dE * ab ≤ 0.25, support non-contact detection, waterproof and dustproof IP66, multiple communication interfaces, LED Illuminant long life.

Model

CRX-66

Get Quote

Category : Colorimeter

Brand : CHNSpec

SKU : NB050543

Service :The delivery and service By NBCLab.Com

Optical inspection structure
45/0
spectroscopy
grating
Sensor
High Accuracy CMOS Array Sensor
Field of view
2°，10°
Illuminant
Full Band EQ LED Illuminant
Illuminant life
10 years 1 million times
Observational Illuminant
A,B,C,D50,D55,D65,D75,F1-F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2
Wavelength range
400-700nm
wavelength interval
10nm
Measurement caliber
Φ8mm/Φ21mm
Repeatability of chromatic value
dE*ab≤0.02
Inter-instrument Agreement
dE*ab≤0.25
Display accuracy
0.01
Measurement time
Single measurement 50ms
Reflectance measurement range
0-200%
Reflectance resolution
0.01%
Measurement mode
Non-contact, visual observation
Color space
Light spectrum reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB
Color difference formula
ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00
Whiteness/Yellowness/Blackness
Whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube Berger Stensby), Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness (My, dM)
Tint/Metamerism
Tint(ASTM E313-00)
Colour fastness/force/coverage
Dip colour fastness, discoloration fastness
Color density
CMYK(A,T,E,M)
Calibration method
Automatic calibration
Software support
Standard PC data management software
Interface
USB, 485, 232, External trigger, Analog signal output, Ethernet
display screen
Full-color screen, 3.5 inches
Operating language
Simplified Chinese, English
Protection Rating
IP66
Special features
Built-in calibrate, non-contact distance 5mm, support wet-film detection, online Color quality control, waterproof and dustproof

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
