$ 7244.00Ex works
Adopt equilibrate Conditioning Control system, equipped with imported Sanyo Compressor, Temperature Uniformity +/- 1.5-2 ℃, with 50mm test hole and 4-layer tempered Glass observation window, support RS232 remote control.
Category : Temperature Humidity Chamber
Brand : AISRY
SKU : NB050554
Service :The delivery and service By NBCLab.Com

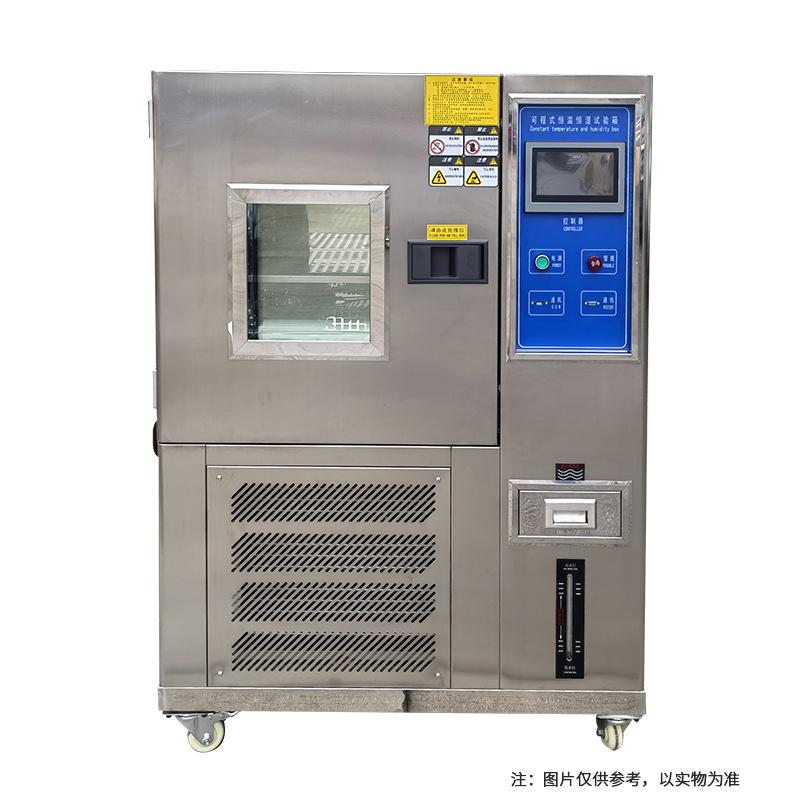

The split constant temperature and humidity testing machine NBC-150L-60/2 is mainly used to detect the performance of materials in various environments, and test the heat resistance, cold resistance, dry resistance and moisture resistance performance of various materials. The equipment is suitable for mass detection of electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, aerospace and other products. The equilibrate Conditioning Control system is used to transmit the actual data in the test Chamber to the controller through the induction system. The controller controls the SSR multi-stage intelligent output and the output power of the equilibrate temperature Humidity system to ensure that the temperature Humidity in the test Chamber is fully stable and has the function of energy saving.
1. The product has beautiful appearance, reasonable structure, precise process, simple and convenient operation and stable and reliable performance. 2. The controller adopts a large-scale color liquid crystal man-machine touch dialog LCD man-machine interface controller, which is easy to operate, easy to learn, stable and reliable. The complete system operation status, execution and setting program Linear dispersion are displayed in both Chinese and English, which can realize RS232 computer interface docking and directly control the instrument remotely through the computer. 3. The refrigeration circulation system adopts the original imported Japanese "Sanyo" brand fully enclosed Compressor, all parts are imported parts, and the refrigerant adopts the American environmentally friendly refrigerant. 4. The left side of the test Chamber has a test hole with a reserved diameter of 50mm. 5, with fully automatic, high-precision system loop, any part action with P.L.C locking processing, all using P.I.D automatic calculation control, the whole area temperature with High Accuracy, High Stability. 6, Specially designed air circulation circulation system and sensing system, out of the trend in the return air sensor detection and control, to ensure that the test Chamber Temperature Uniformity, to avoid any dead angle. 7. Adopt enlarged observation window, 4 layers of whole empty tempered Glass, wider field of vision. 8, the instrument has a comprehensive protection system, including power overload protection, leakage protection, control loop overload, short circuit protection, Compressor protection, grounding protection, over-temperature protection, alarm sound prompts, etc., any abnormal situation occurs automatically display fault points and causes and automatic shutdown.
The equilibrate Conditioning Control system is adopted, and the induction system transmits the actual data in the test Chamber to the controller. The controller controls the SSR multi-stage intelligent output, and the output power of the equilibrate temperature and Humidity system ensures that the temperature and Humidity in the test Chamber are fully stable. The heating system adopts multi-stage heating pipes with PID modules to ensure temperature stability; the humidification system adopts a circular split humidifier to avoid freezing during low temperature testing; the refrigeration system uses imported Compressors and components to realize forced refrigeration and thermostatic refrigeration segmented control; the air circulation system uses high-resistance motors and multi-wing fan blades to ensure uniform temperature.
Electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, aerospace
1. Remote control the instrument setting program through the controller or computer Linear dispersion. 2. Place the sample to be tested on the shelf and adjust the layer spacing as required. 3. Start the equipment, and the system automatically executes the Temperature and Humidity Control Program. 4. Monitor the test process and automatically shut down if there is any abnormality, displaying fault information. 5. After the test is completed, remove the sample and turn off the equipment.
• Miscellaneous items should not be placed within 60CM of the instrument. • The installation ground should not be severely tilted. • Ambient Temperature should be in the range of 0~ 30 ℃. • Guaranteed performance Ambient Temperature 5~ 25 ℃. The allowable voltage variation is +/- 10%. • The load of a single-layer rack should not exceed 20KG.
Recommend the NBC-150L-60/2 split-type constant temperature and humidity testing machine. It offers a wide temperature control range from -60℃ to 150℃ and humidity control from 20% to 98% RH, making it suitable for simulating harsh environments that electronic products may encounter, such as high temperature and humidity or low temperature and dry conditions. The device adopts a balanced temperature and humidity control system, which can accurately and stably control the temperature and humidity inside the chamber, ensuring reliable test results. Additionally, it is equipped with test ports for convenient connection to external test cables.
Suitable. This model features a split design, with the compressor and other refrigeration components housed separately. This effectively reduces noise and heat dissipation from the main chamber, making it ideal for laboratories with limited space. The inner chamber has a capacity of 150L, offering a moderate size that can accommodate a significant number of automotive components for heat, cold, and humidity resistance testing. The device is structurally robust, with sturdy shelves that offer good load-bearing capacity and adjustable spacing, allowing for flexible placement of samples of varying sizes. Additionally, it comes equipped with a comprehensive safety protection system, ensuring stable and reliable operation.
It can meet the requirements. This testing machine is specifically designed for high and low temperature humidity thermal cycling tests, capable of achieving complex temperature and humidity variation curves. The controller features a color touchscreen that supports programming, allowing you to directly set the required temperature and humidity cycle programs. It employs PID automatic calculation control and a special air circulation system, ensuring uniform temperature and humidity inside the chamber, avoiding testing dead spots, and guaranteeing the accuracy and repeatability of material testing. The refrigeration system uses imported compressors, providing stable cooling rates and efficiently completing the cooling phases in cyclic tests.
