Overview

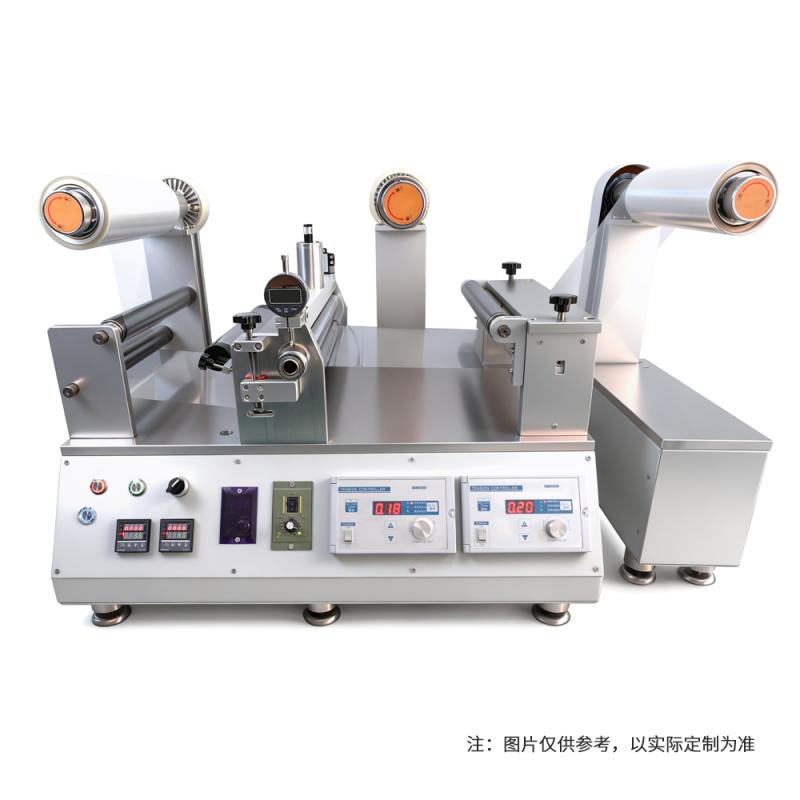

HuiNuo JTM-0.5/300 small continuous Coater (with heating curing) is a high Accuracy modular Spreader station Modular assembly laboratory mini hot-melt adhesive Coater, using continuous coating method, can be separated from the winding module, the whole machine is fully electric control without external gas source. The equipment can directly Spreader the hot melt Pressure sensitive adhesive on the heat-resistant substrate or release paper and then rotate the picture to fit to different surfaces. It can also increase the curing module single top coating film, equipped with electronic control precision tension control to adapt to paper, plastic model metal film and other materials.
Features
1. High Accuracy Modular Spreader Station Structure, Modular Assembly Separable Winding Module
2. Fully electric control, no external air source required

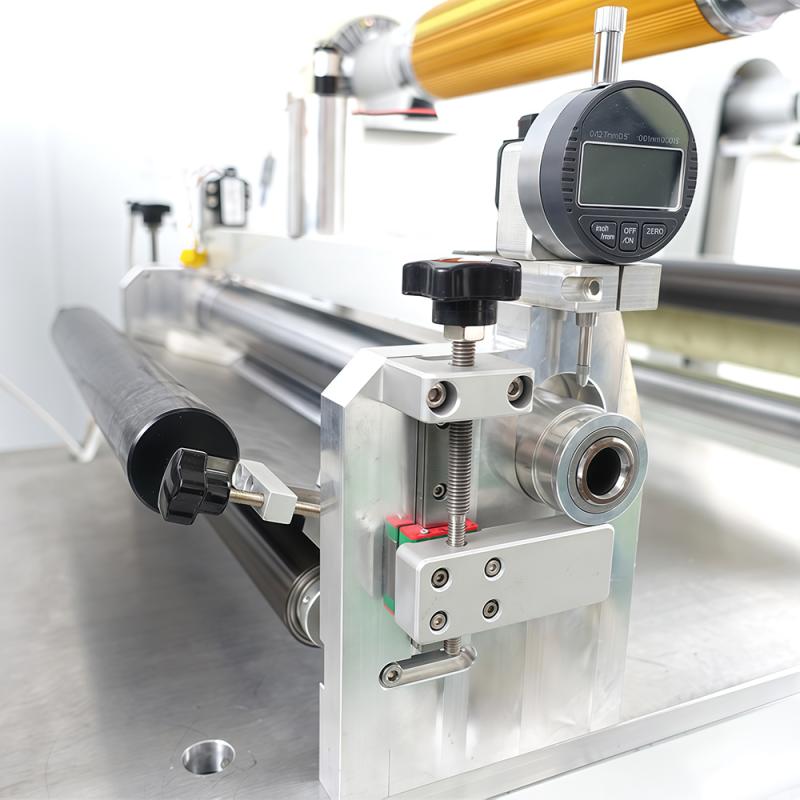

3. The dial meter indexing head precisely fine-tunes the upper and lower rubber wheel Spreader clearance control thickness, the minimum glue thickness is 0.01mm.
4. Electric push rod provides downforce to prevent gap change
5. Maximum Spreader width 300mm (effective 280mm), unlimited length Spreader automatic rewinding
6. Positive and reverse stepless speed change, Spreader speed 2-4.5 m/min adjustable, precision electronic control discharge reel to precisely adjust the tension
7. Quick-release glue slot, the upper rubber wheel and glue slot can be quickly disassembled to remove residual glue
Principle
The equipment adopts continuous scraping and roller painting mode, controls the thickness of the Spreader through the gap between the upper and lower rubber wheels, and provides the downforce of the electric push rod to keep the gap stable. During the Spreader process, the electronically controlled precision tension Control system adapts to different material requirements, and is equipped with a heating device to carry out heating curing on the chute and drying tunnel area to achieve accurate Spreader and curing treatment of hot-melt adhesives and other materials.
Applications
Hot-melt adhesive, gel, hydrocolloid dressing, water-based glue, solvent glue, lithium battery, glue, silicone oil, UV, inks, cataplasm, plaster, Stock
Steps
1. Adjust the PEEK baffle in the glue slot to set the Spreader width
2. Fine-tune the upper and lower rubber wheel clearance to control the Spreader thickness through the dial meter indexing head
3. Set the Spreader speed to adjust through the control panel knob
4. Start the device for continuous Spreader operation
5. Quickly disassemble the glue tank and upper rubber wheel after use to remove the residual glue
Notice
• Spreader thickness and accuracy depending on Stock characteristics, reference material requirements
• Machine size and weight are subject to actual customization
• Pay attention to the heating device during operation Temperature range RT +~ 200 ℃
• Make sure the power supply is AC220V single-phase 50Hz
• Regularly clean the glue tank and rubber wheel to prevent the accumulation of residual glue
