Overview

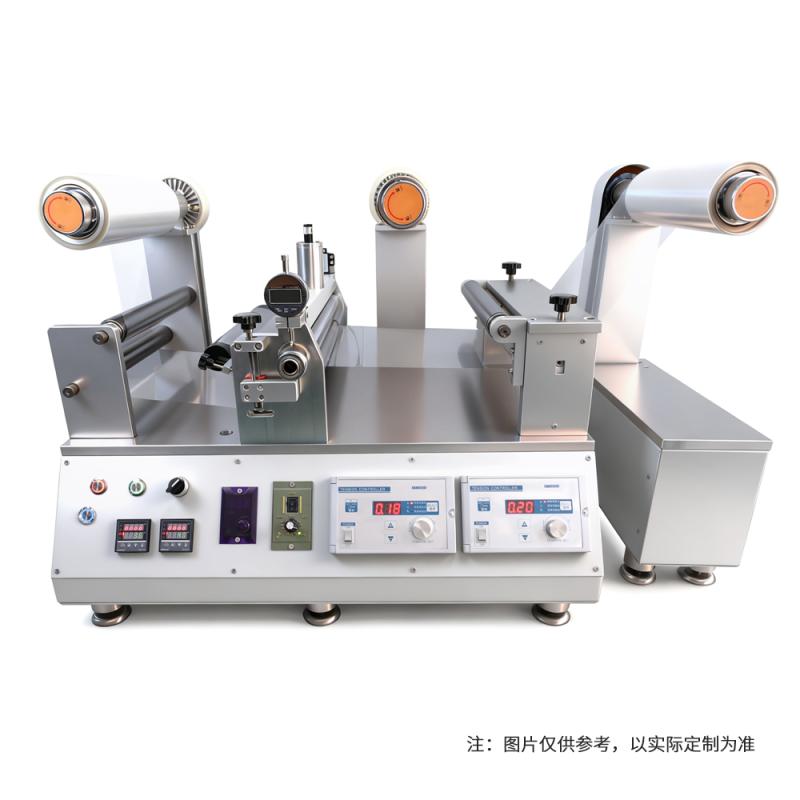

HuiNuo JTM - 0.5/300 UV small continuous Coater is a laboratory mini hot-melt adhesive Coater, using High Accuracy modular Spreader station mechanism Modular assembly, all-electric control without external air source. The device can directly Spreader the hot melt Pressure sensitive adhesive on the heat-resistant substrate or release paper, and then transfer the picture to fit to different surfaces. It supports electronic control and precision tension control, suitable for paper, plastic model metal film and other materials.
Features
1. High Accuracy Modular Spreader Station Structure, Modular Assembly Separable Winding Module, Modules can be added as needed
2. Fully electric control, no external air source required
3. Use the dial meter as the indexing head to precisely fine-tune the thickness of the Spreader gap control, the minimum gluing thickness is 0.01mm.
4. Maximum Spreader width 300mm, effective application width 280mm, unlimited length Spreader gluing and automatic winding
5. Positive and reverse stepless speed change, Spreader speed 2-4.5 m/min adjustable, precision electronically controlled discharge tension continues to maintain
6. Quick-release rubber groove and rubber wheel can be quickly disassembled to remove residual glue
7. Equipped with heating device and UV curing function, drying temperature RT +~ 200 ℃, UV curing is completed instantly
Principle
The device realizes continuous scraping and roller painting through the Modular Spreader station, uses a dial meter indexing head to precisely fine-tune the gap between the upper and lower rubber wheels to control the thickness of the Spreader, and an electric push rod provides downforce to prevent the gap from changing. During the Spreader process, the electronic control system precisely adjusts the discharge tension. After the material passes through the heating chute and the drying tunnel area, the optional UV curing lamp source is used for instant curing to complete the Spreader and curing process.
Applications
Hot-melt adhesive, gel, hydrocolloid dressing, water-based glue, solvent glue, lithium battery, glue, silicone oil, UV, inks, cataplasm, plaster, Stock
Steps
1. Adjust the PEEK baffle in the glue slot to set the Spreader width as needed
2. Use the dial meter indexing head to fine-tune the upper and lower rubber wheel clearance to set the Spreader thickness
3. Adjust Spreader speed and discharge tension through the control panel knob
4. Start the device for continuous Spreader, and automatically rewind to complete the operation
5. After the Spreader, use the quick disassembly function to disassemble the glue slot and upper rubber wheel to remove the residual glue.
Notice
• Spreader thickness and accuracy depending on Stock characteristics, reference material requirements
• The size and weight of the machine are subject to the actual customization. Before use, confirm that the power supply is AC220V single-phase 50Hz.
• Pay attention to the high temperature area of the heating device and drying tunnel during operation to avoid burns
• Regularly clean the quick-release rubber tank and the rubber wheel to prevent the accumulation of residual glue from affecting the performance
