Overview
HuiNuo JTM - 0.6/300 UV small continuous Coater is a laboratory mini hot-melt adhesive Coater, using High Accuracy modular Spreader station mechanism Modular assembly, can be separated from the winding module, the whole machine is fully electric control without external air source. The equipment is suitable for hot melt Pressure sensitive adhesive Spreader directly to heat-resistant substrates or release paper, and can be transferred to different surfaces. It can also add a single top coating film for curing modules. Electronically controlled precision tension control adapts to paper, plastic model metal film and other materials.
Features
1. High Accuracy Modular Spreader Station Structure, Modular Assembly
2. Fully electric control, no external air source required
3. The dial meter indexing head precisely fine-tunes the upper and lower rubber wheel Spreader clearance control thickness
4. The minimum gluing thickness is 0.01mm, and the electric push rod provides downforce to prevent the gap from changing
5. Maximum Spreader width 300mm (effective 280mm), unlimited length Spreader glue automatic winding
6. Positive and reverse stepless speed change, Spreader speed 2-4.5 m/min adjustable, precision electronically controlled discharge tension
7. Quick-release glue slot, the upper rubber wheel and glue slot can be quickly disassembled to remove residual glue
Principle

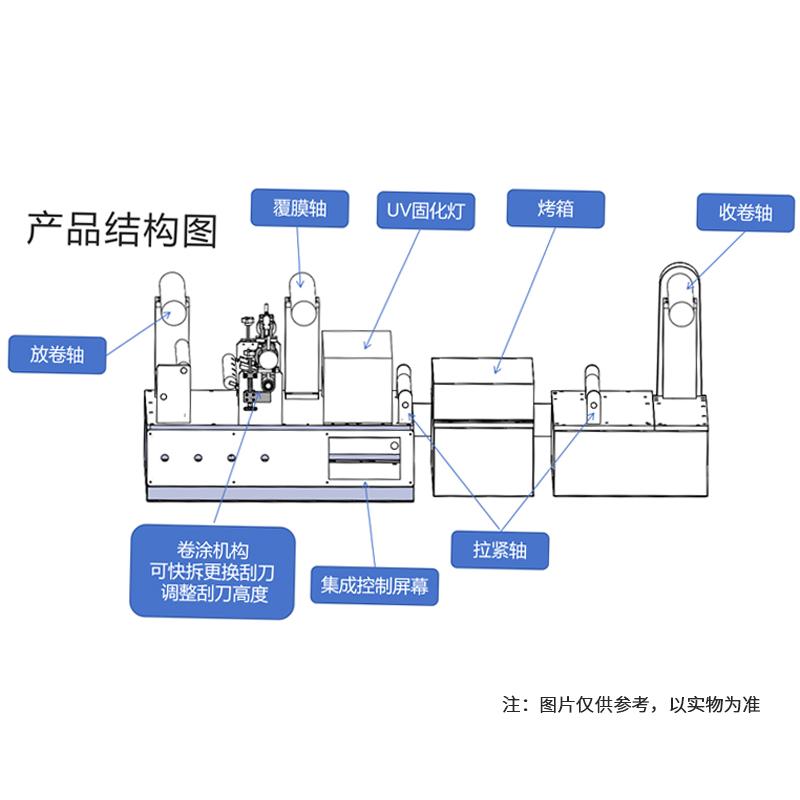

The equipment adopts a continuous scraping process, the process is unwinding → scraping (trough heating) → Laminating → UV curing → drying → rewinding. The thickness of the Spreader is controlled through the gap between the upper and lower rubber wheels, the trough heating and drying tunnel provide temperature control, the UV curing lamp source realizes instant curing, and the electronic control system precisely adjusts the discharge tension and Spreader speed.
Applications
Hot-melt adhesive, gel, hydrocolloid dressing, water-based glue, solvent glue, lithium battery, glue, silicone oil, UV, inks, cataplasm, plaster, Stock
Steps
1. Adjust the PEEK baffle in the plastic slot to set the width of the Spreader
2. Use the dial meter to fine-tune the upper and lower rubber wheel clearance to control the thickness of the Spreader
3. Set the heating temperature of the chute and drying tunnel
4. Adjust the control panel knob to set the discharge tension and Spreader speed
5. Start the device for Continuous Spreader
6. After the Spreader is completed, the glue tank can be quickly disassembled to remove the residual glue
Notice
• Minimum gluing thickness 0.01mm depends on Stock characteristics
• Coating surface density ≤ +/- 1.5% (including substrate, excluding edge abnormal areas)
• Film accuracy +/- 0.003mm Depending on Stock characteristics

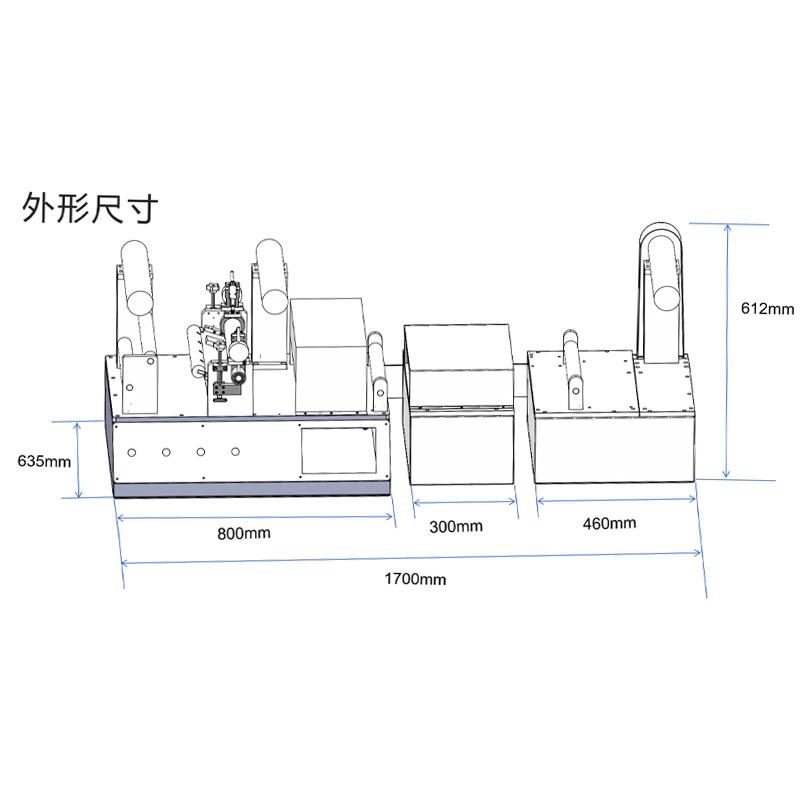

• Machine size and weight are subject to actual customization
• Confirm that the power supply is AC220V single-phase 50Hz before use
• Pay attention to high temperature protection of heating device during operation
