Overview

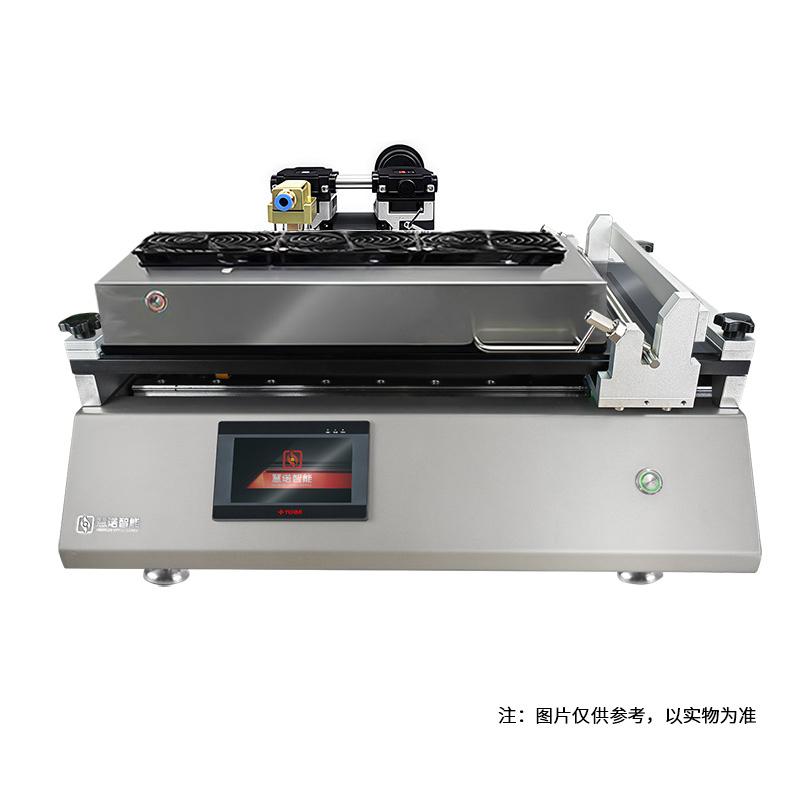

Automatic Film Applicator is a device for intermediate coating films in laboratories. It replaces manual film and automatically films to improve film accuracy and efficiency. This Film Applicator is a bar type Automatic Film Applicator with Vacuum chuck function and UV UV curing. It adopts the innovative bar Installation method, supports speed control and application length adjustment, and is suitable for laboratory High Accuracy automatic film.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. With heating and Vacuum chuck function
4. Equipped with High Accuracy Film Applicator, the original imported bar film has high uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. High Accuracy automatic film is realized by using bar coating method, driven by servo motor, and fixed with Vacuum chuck.
Applications
Moulding proofing in research institutes of universities, New materials, lithium batteries, glues, Resin and other laboratories, suitable for film sample preparation such as Coatings, inks, paints, Stock, lithium batteries, Resin, glues, polymer materials, pharmaceuticals, etc
Steps
1. Prepare the substrate and place it on the Spreader stage
2. Vacuum chuck function fixed substrate
3. Set application length and Spreader speed parameters through Touchscreen
4. Install the right bar Film Applicator
5. Start the Spreader program for automatic filming
6. For curing, turn on UV UV curing function
Notice
• Power supply voltage meets equipment requirements (220V/50HZ)
• Pay attention to the correct use of Vacuum chuck function when operating
• Bar Film Applicators should be cleaned in time after use
• Pay attention to safety protection during UV curing
• Customized parameters need to be confirmed with the supplier in advance
