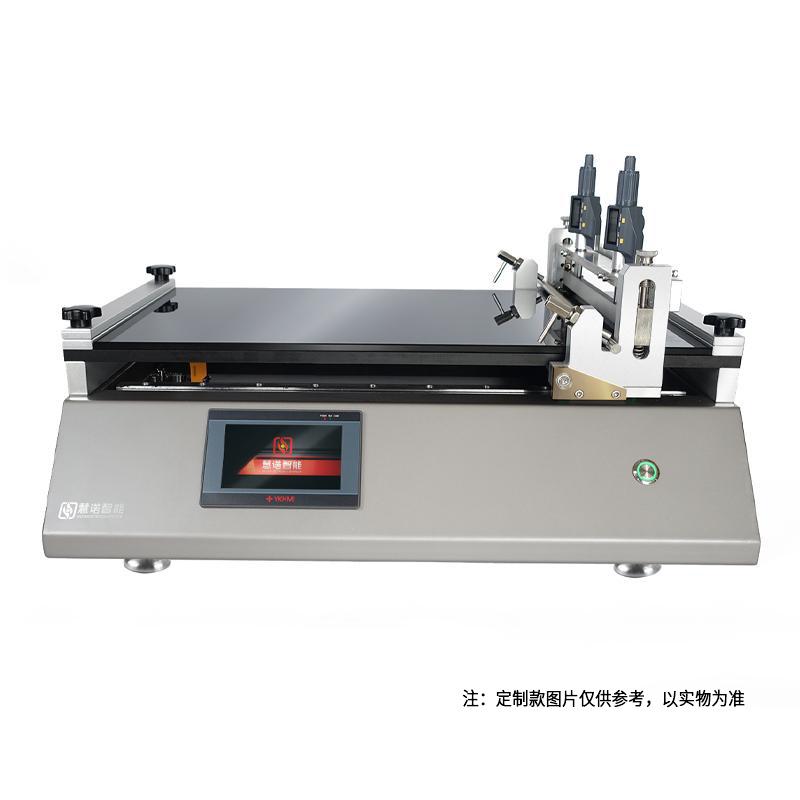

HuiNuo TM2000Pro/05 Automatic Film Applicator Drawdown blade Automatic film applicator High Accuracy Laboratory Moulding

Name: HuiNuo TM2000Pro/05 Automatic Film Applicator Drawdown blade Automatic film applicator High Accuracy Laboratory Moulding
Brand: HuiNuo
SKU: NB050631
Price: 6205.0 USD
Availability: PreOrder

$ 6205.00Ex works

Adopt adjustable Blade Coating, high film thickness control accuracy, application length and speed can be adjusted freely, equipped with heat-resistant and scratch-resistant tempered Glass countertop, easy to clean and easy to operate.

Model

TM2000pro/05

Get Quote

Category : Automatic Film Applicator

Brand : HuiNuo

SKU : NB050631

Service :The delivery and service By NBCLab.Com

Product Overview

The automatic film coating machine is a device used in laboratories for coating thin films, replacing manual coating to automate the process and improve the precision and efficiency of film application. This coating machine is a blade-type automatic coater that utilizes an adjustable blade coating mechanism with a comma blade. It features speed control and coating length adjustment functions, making it suitable for high-precision automatic film coating in laboratories. It is ideal for film preparation and sampling in university research institutes, as well as laboratories focusing on new materials, lithium batteries, adhesives, resins, and more.

Product Features

1. The glass tabletop is a 3C certified national standard genuine fully tempered glass panel made from Jinge Crystal original sheet, heat-resistant up to 600°C, scratch and abrasion resistant. 2. High-precision differential regulator from a major brand ensures superior film thickness control. 3. Blade coating head for easy cleaning. 4. Touchscreen control panel for simple operation. 5. Coating length and coating speed are freely adjustable.

Working principle

The working principle of an automatic experimental coating machine is to uniformly apply a sample onto a substrate by controlling the coating head and coating parameters, thereby forming the desired thin film.

Application field

University Research Institutes, New Materials, Lithium Batteries, Adhesives, Resins, and other laboratories.

Complies with standards

3C Certification National Standard

coating method
Comma scratch
Effective application width
400mm
Effective application length
400mm
Coating table size
640*430mm
Coating table material
3C certification national standard genuine all tempered Glass plate, gold crystal original
coating speed
1~ 300Mm/s stepless speed regulation
Speed Control mode
Touchscreen control
Drawdown blade type
Comma drawdown blade
Drawdown blade material
Die steel
Drawdown blade application width
400mm
Blade Coating Thickness Range
0~10mm
Blade Coating accuracy
±3μm
Control mode
Touchscreen control
Operating language
Chinese (can be customized in English)
display screen
Color LCD Touchscreen
Host size
Subject to the actual product
Host power supply
100V~220V/50~60HZ
optional feature
Heating Vacuum chuck
