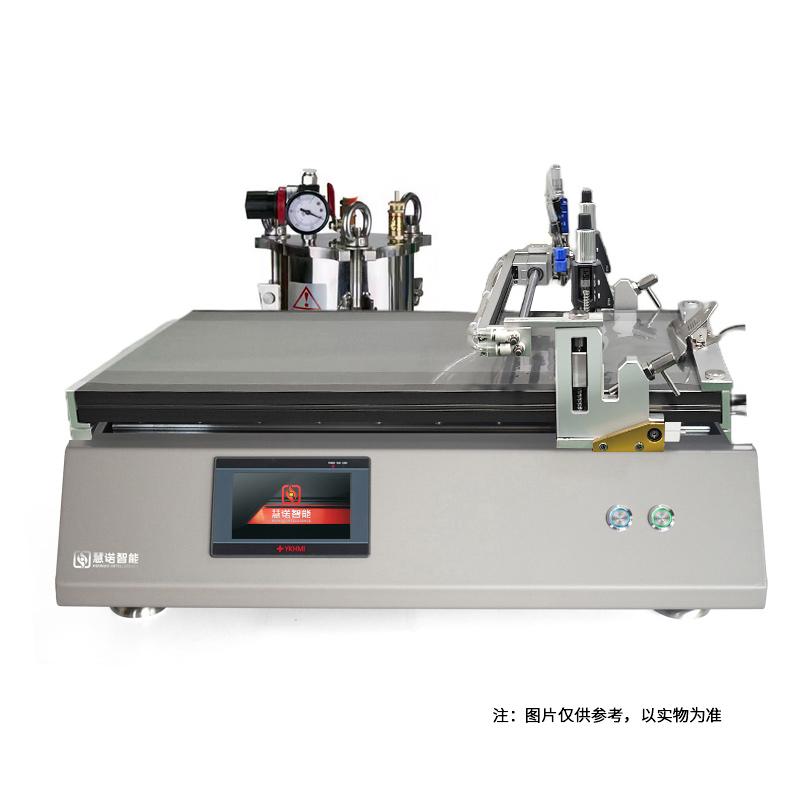

Huinuo TM3200proAF/02 Automatic Film Applicator with Automatic Feeding Wire Rod Coater

Name: Huinuo TM3200proAF/02 Automatic Film Applicator with Automatic Feeding Wire Rod Coater
Brand: HuiNuo
SKU: NB050636
Price: 7403.0 USD
Availability: PreOrder

$ 7403.00Ex works

It supports both wire rod and blade coating methods, with adjustable speed and length, high precision in film thickness control, and features vacuum adsorption for easy handling of flexible substrates and convenient cleaning.

Model

TM3200proAF/02

Get Quote

Category : Automatic Film Applicator

Brand : HuiNuo

SKU : NB050636

Service :The delivery and service By NBCLab.Com

Product Overview

The automatic film applicator is a device used for coating films in the laboratory, replacing manual coating to automate the process, thereby improving the precision and efficiency of film application. This TM3200proAF/02 automatic film applicator is a wire rod and blade coater, featuring two coating methods using wire rods and blades, and equipped with vacuum adsorption functionality. The innovative wire rod installation method and flip-top blade head significantly enhance coating efficiency, facilitate cleaning, support speed control and coating length adjustment, making it suitable for high-precision automatic film application in the laboratory.

Product Features

1. The work surface is made of aluminum alloy with a hard surface treatment, offering high hardness and wear resistance. The flatness of the work surface is inspected using imported high-precision instruments. 2. Equipped with a high-quality differential adjuster for precise film thickness control. 3. Flip-top blade coating head for easy cleaning. 4. Includes a high-precision film applicator, featuring an original imported wire-wound bar for uniform and high-precision coating. 5. Touchscreen control panel for simple operation. 6. Coating length and speed can be freely adjusted. 7. Features a vacuum adsorption function, suitable for coating on soft substrates such as films.

Working Principle

The working principle of an automatic experimental coating machine involves controlling the coating head and parameters to uniformly apply the sample onto the substrate, forming the desired film.

Application Fields

University research institutes, new materials, lithium batteries, adhesives, hot melt adhesives, etc., conduct film sample preparation in laboratories.

Coating method
Wire Bar + Doctor Blade
Coating speed
1~300mm/s stepless speed adjustment (customizable)
Substrate fixation method
Vacuum adsorption + Fixture
Coating table material
Surface Hardened Aluminum Alloy
Coating table dimensions
840*430mm
Effective coating area
600*400mm (customizable)
Wire rod coating thickness range
Different rod numbers have varying thicknesses, paired with high-precision imported wire rods.
Wire Rod Coating Accuracy
±0.003mm
Doctor blade coating thickness range
0.1~10mm (flip-top design for easy cleaning)
Blade material
Mold Steel
Doctor Blade Coating Width
400mm
Doctor Blade Coating Accuracy
±0.003mm
Vacuum Adsorption Size
680*360mm (customizable)
Vacuum aperture
Φ0.8mm
Vacuum hole pitch
20*20mm
Vacuum pump pumping speed
5.4m³/h
Ultimate vacuum
50KPa
Vacuum pump power
180W
Vacuum pump weight
7.1kg
Drive motor
Servo Motor
Customized Functions
Automatic Feeding System
Feeding principle
Pneumatic pressure feeding
Feeding motion mode
Reciprocating linear motion
Feeding reciprocating movement speed
2-150mm/s
Spitting volume
Adjustable (by adjusting air pressure and the operating speed of the discharge port)
Feeding system air source
The customer provides their own compressed air at 0.6 MPa.
Power
600w
Operating language
Chinese (Customizable English)
Display screen
Color LCD Touchscreen
Mainframe Power Supply
220V/50Hz (customizable to 110V/60Hz)
External dimensions
860*540*430mm (subject to actual customization)
