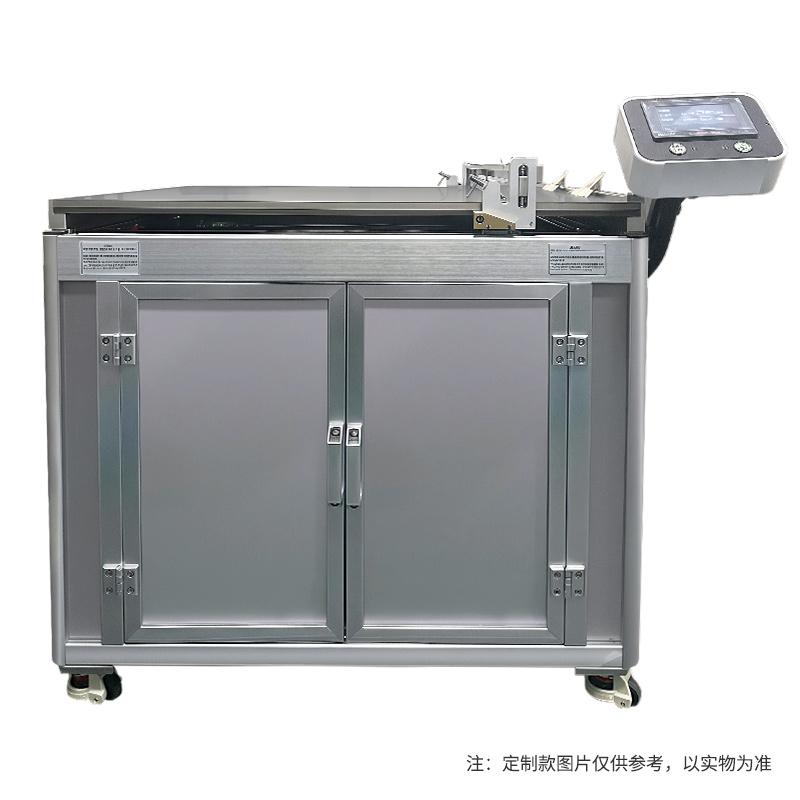

HuiNuo TM3200Pro/15D Automatic Film Applicator drawdown Bar & blade coater Vacuum chuck 100 * 70cm

Name: HuiNuo TM3200Pro/15D Automatic Film Applicator drawdown Bar & blade coater Vacuum chuck 100 * 70cm
Brand: HuiNuo
SKU: NB050669
Price: 12337.0 USD
Availability: PreOrder

$ 12337.00Ex works

Drawdown blade and bar two coating methods, with Vacuum chuck function, easy to clean, support speed and application length adjustment, film thickness control accuracy, suitable for soft substrates.

Model

TM3200pro/15D

Get Quote

Category : Automatic Film Applicator

Brand : HuiNuo

SKU : NB050669

Service :The delivery and service By NBCLab.Com

Product Overview

The automatic film applicator is a device used in laboratories for coating thin films, replacing manual coating to automate the process, thereby improving the precision and efficiency of film application. This film applicator is a wire rod and doctor blade coater, utilizing both wire rod and blade coating methods, and features vacuum adsorption functionality. The innovative wire rod installation method and flip-top doctor blade head significantly enhance coating efficiency, facilitate cleaning, support speed control and coating length adjustment, making it suitable for high-precision automatic film coating in laboratory settings.

Product Features

1. The aluminum alloy tabletop is treated with a surface hardening process, offering high hardness and wear resistance. Its flatness is tested using imported high-precision instruments. 2. Equipped with a well-known brand differential regulator for high-precision film thickness control. 3. Features a flip-up blade coating head for easy cleaning. 4. Comes with a high-precision coating applicator and original imported wire rods, ensuring uniform and high-precision coating. 5. Touchscreen control panel for simple operation. 6. Coating length and speed can be freely adjusted. 7. Equipped with a vacuum adsorption function, suitable for coating flexible substrates such as films.

Working Principle

The working principle of an automatic experimental film applicator is to uniformly coat a sample onto a substrate by controlling the coating head and coating parameters, thereby forming the desired thin film.

Application Areas

University research institutes, new materials, lithium batteries, adhesives, hot melt adhesives, and other laboratories conduct film preparation and sampling.

coating method
Bar + drawdown blade
Effective application width
700mm
Effective application length
1000mm
Coating table size
1240×730mm
Coating table material
Surface hard treatment aluminum alloy
coating speed
1~ 300Mm/s stepless speed regulation
Motor type
Servo motor
Speed Control mode
Touchscreen control
Drawdown blade type
Flip drawdown blade
Drawdown blade material
Die steel
Drawdown blade application width
700mm
Blade Coating Thickness Range
0.1~10mm
Blade Coating accuracy
±3μm
Drawdown blade fixed form
clamshell
Bar Specifications
High Accuracy bar
meyer rod coating thickness range
Different bar numbers have different thicknesses.
meyer rod coating accuracy
±0.003mm
Vacuum chuck area
1080×660mm
Vacuum aperture diameter
Φ0.8mm
Vacuum hole pitch
20×20mm
Vacuum Pump Power
180W
Vacuum pump weight
7.1kg
Ultimate vacuum degree
50KPa
Control mode
Touchscreen control
Operating language
Chinese (can be customized in English)
display screen
Color LCD Touchscreen
Host size
1260×840×940mm
Host power supply
220V/50Hz (110V/60Hz can be customized)
Accessories
Width adjustment accessories
optional feature
Coating speed, effective coating area, Vacuum Area, Operating language, Host power supply can be customized

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
