Product Overview

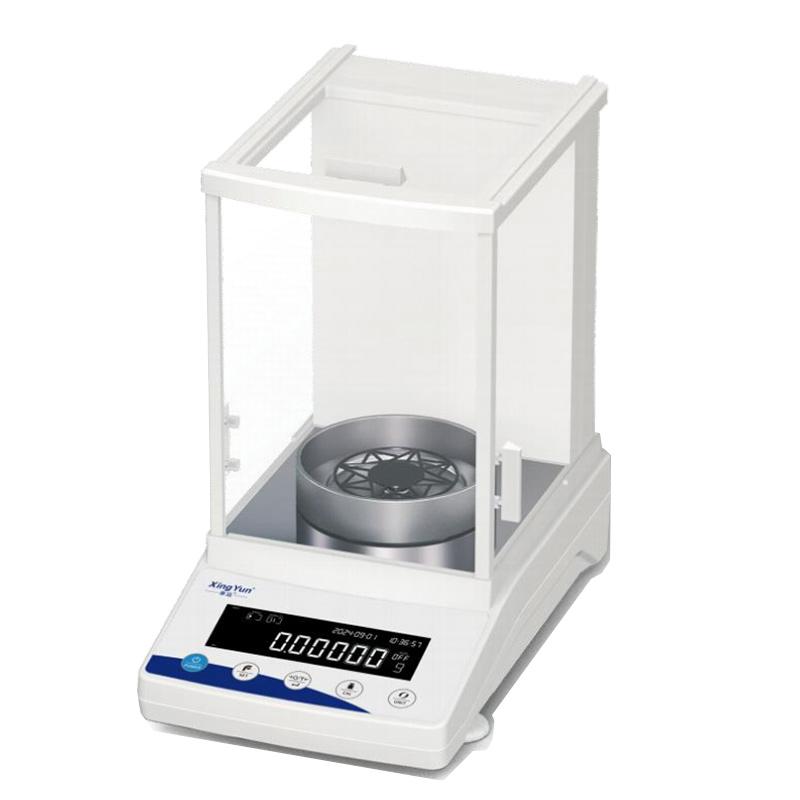

The FA22105N-SEM is a multifunctional internal calibration semi-micro analytical balance launched by Lucky Electronics. It employs an electromagnetic force balance sensor and features fully automatic timed internal calibration. With high levels of intelligence and standardization, along with traceable data, it is suitable for customers with high demands for efficiency, accuracy, and compliance.
Product Features
1. Fully automatic timed internal calibration with one-touch calibration support.
2. Internal non-magnetic weights ensure calibration accuracy.
3. Negative display LCD screen with clear interface.
4. Anti-static transparent glass effectively isolates static electricity.
5. Hollow star-pattern weighing pan reduces airflow impact and improves weighing precision.
6. Equipped with a windshield ring to minimize wind interference during side-door operation.
7. RS232 communication serial port for connecting printers, computers, or industrial control devices.
8. Supports common unit conversions (g/mg/ct/oz).
9. Adjustable baud rates (1200, 2400, 4800, 9600, 19200, 38400, etc.) to meet various needs.
10. Printing function with configurable baud rate and output modes (continuous real-time, continuous stable, single-point output).
11. Hardware configuration and power supply design located in the rear cavity to effectively shield the sensor from motherboard interference.
12. Supports full-range tare and zero functions, with overload/underload display and fault alarm features.
13. Includes temperature compensation, time and temperature display, Good Laboratory Practice (GLP) functionality, and automatic zero tracking settings.
14. Provides 14 function settings, including display speed adjustment, factory reset, internal calibration time setting, peak hold, print settings, stability adjustment, external calibration, Beijing time setting, zero tracking settings, GLP settings, counting function, percentage function, temperature display toggle, and baud rate setting.
Working Principle
This balance employs electromagnetic force balance sensor technology for weighing measurements. It utilizes a fully automatic timed internal calibration system, which calibrates using internal non-magnetic weights to ensure the accuracy and traceability of the measurement results.
Application Fields
Suitable for laboratories, research and development, quality control, and other fields that require high efficiency, precision, and compliance.
Operating Steps
1. Power on and preheat.
2. Perform automatic timed internal calibration or one-touch manual calibration as needed.
3. Place the sample on the hollow star-shaped weighing pan for weighing.
4. Use functions such as tare and zero reset.
5. Data output or printing can be achieved by connecting external devices via the RS232 interface.
Precautions
• Before use, ensure that the balance is placed on a level surface.
• Pay attention to the use of the draft shield to reduce the impact of airflow on weighing.
• Perform internal calibration regularly to ensure accuracy.
• When connecting external devices, confirm that communication parameters such as the baud rate are set correctly.
• Avoid overload use, and be mindful of overload, underload prompts, and fault alarms.
