Product Overview

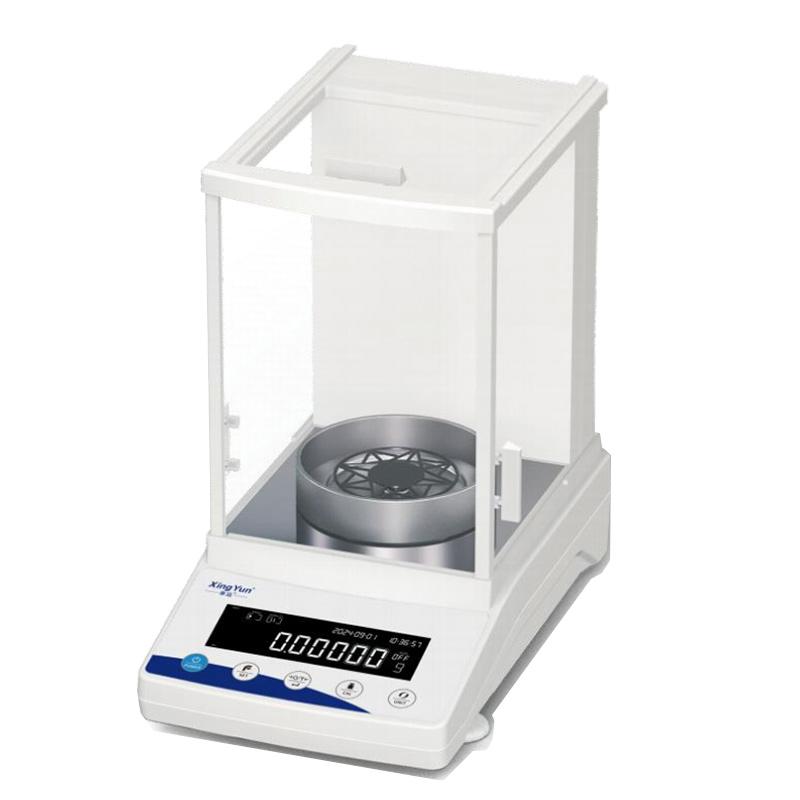

The FA22125N-SEM is a versatile internal calibration semi-micro analytical balance launched by the Lucky Electronics brand. This product utilizes an electromagnetic force balance sensor, features fully automatic timed internal calibration, and offers a high level of intelligence and standardization. With traceable data, it is suitable for customer groups with high demands for efficiency, accuracy, and compliance.
Product Features
1. Fully automatic timed internal calibration with one-key calibration support.
2. Internal use of non-magnetic weights ensures calibration accuracy.
3. Negative display LCD screen with a clear interface.
4. Equipped with anti-static transparent glass to effectively isolate static electricity.
5. Hollow star-pattern weighing pan reduces airflow impact and improves weighing accuracy.
6. Wind ring design minimizes the effect of side-door opening on the weighing pan and balance.
7. RS232 communication serial port for connecting to printers, computers, or industrial control devices.
8. Supports common unit conversions (g, mg, ct, oz).
9. Adjustable baud rates (1200, 2400, 4800, 9600, 19200, 38400, etc.) to meet various needs.
10. Printing function with configurable baud rates and switchable output modes: continuous real-time, continuous stable, and single-point output.
11. Hardware configuration and power supply design located in the rear cavity, effectively shielding and protecting the sensor from motherboard interference.
12. Supports tare and zeroing across the full range, with overload/underload display and fault alarm functions.
13. Features temperature compensation, time and temperature display, Good Laboratory Practice (GLP) functions, and automatic zero tracking settings.
14. Offers 14 configurable functions, including display speed adjustment, factory reset, internal calibration time setting, peak hold, print settings, stability adjustment, external calibration, Beijing time setting, zero tracking settings, GLP settings, counting function, percentage function, temperature display toggle, and baud rate setting.
Working principle
This balance operates based on the principle of an electromagnetic force balance sensor. During weighing, the sensor generates an electromagnetic force that counterbalances the gravitational force of the object being measured. By precisely measuring the magnitude of this electromagnetic force, the mass of the object is accurately determined. Its intelligent system supports fully automatic periodic internal calibration, ensuring long-term accuracy and stability of measurement results.
Application Field
Suitable for fields requiring precise weighing, such as laboratories, research and development institutions, and quality control departments with high demands for efficiency, accuracy, and compliance.
Complies with standards
Supports GLP (Good Laboratory Practice).
Operating Steps
1. Power on and warm up.
2. Perform automatic or manual internal calibration as needed.
3. Place the sample on the weighing pan.
4. Read or record the measurement result once the reading stabilizes.
5. Use functions such as tare, zero, and unit conversion.
6. Connect external devices via the RS232 interface for data output.
Precautions
• Place the balance on a stable, vibration-free, and level surface without strong airflow interference.
• Avoid using it in environments with strong static electricity, or ensure that the anti-static glass is effective.
• When opening the side door, be mindful of the protective role of the wind ring and minimize airflow disturbance.
• When making external connections (e.g., to a printer or computer), ensure that parameters such as the communication baud rate are correctly set.
• Pay attention to the weighing range of the balance to avoid overload or underload.
• Perform regular internal calibration to ensure accuracy and follow relevant GLP specifications for data recording and management.
