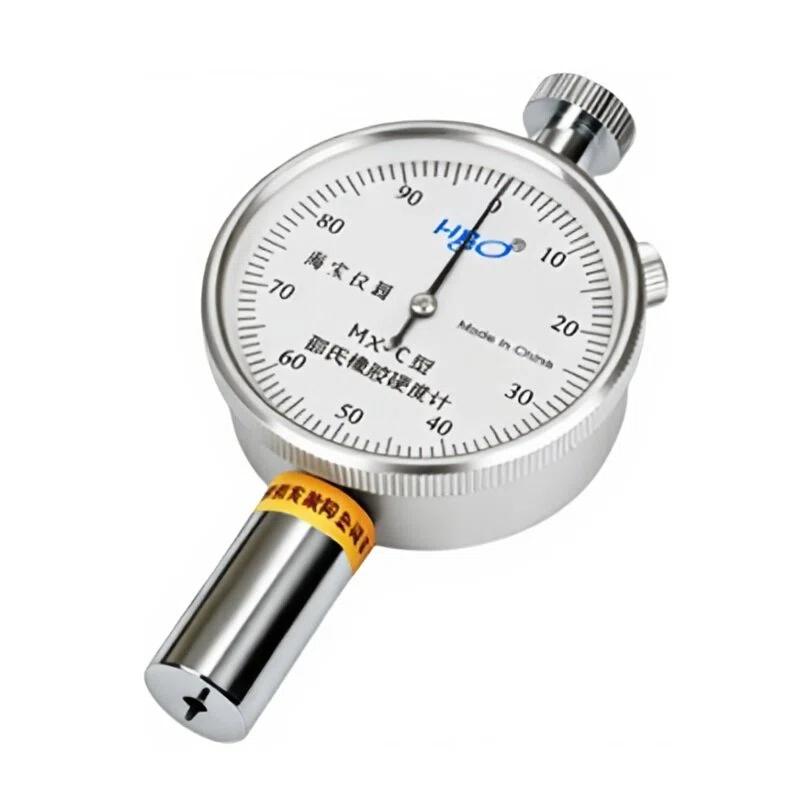

Haibao Instrument MX-C Type C Rubber Hardness Tester, Handheld Fixed Load Stand Applicable, Complies with ASTM D2240 Standard.

Name: Haibao Instrument MX-C Type C Rubber Hardness Tester, Handheld Fixed Load Stand Applicable, Complies with ASTM D2240 Standard.
Brand: HBO
SKU: NB050717
Price: 176.0 USD
Availability: InStock

$ 176.00Ex works

Suitable for medium-hardness rubber, thermoplastic elastomers, and plastics, with a measurement range greater than 90 HB and less than 20 HD, compliant with ASTM D2240 standard, and supports both handheld and benchtop usage modes.

Model

MX-C

Get Quote

Category : Shore Durometer

Brand : HBO

SKU : NB050717

Service :The delivery and service By NBCLab.Com

Product Overview

The MX-C Type Hardness Tester is a C-type rubber hardness tester launched by Haibao Instruments. It is suitable for hardness measurement of medium-hardness rubber, thermoplastic elastomers, medium-hardness plastics, and thermoplastics. This model is recommended when the material hardness is greater than 90 HB and less than 20 HD. The hardness tester is designed with flexibility in mind, allowing it to be used either handheld or in conjunction with a fixed-load test stand.

Product Features

1. Suitable for rubber, thermoplastic elastomers, and plastics within the medium hardness range. 2. The measurement range covers materials with hardness greater than 90 HB and less than 20 HD. 3. Flexible usage, supporting handheld operation or use with a fixed-load testing stand.

Working principle

This durometer is designed in accordance with the American ASTM D2240 standard, corresponding to the working principle of a Type C durometer. It characterizes the hardness of materials by measuring the penetration depth of the indenter under a specific pressure.

Complies with standards

ASTM D2240 Standard

Measurement range
0-100HC
Division value
1HC
Indication error
≤±1HC
Pressure needle stroke range
0-2.5mm
Pressure at the tip of the indenter
0-44.45N
Overall Dimensions
113*60*24mm
Weight
0.2kg
Optional accessories
LD-J Hardness Tester Stand, ASTM C-Type Standard Hardness Block

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
