Product Overview

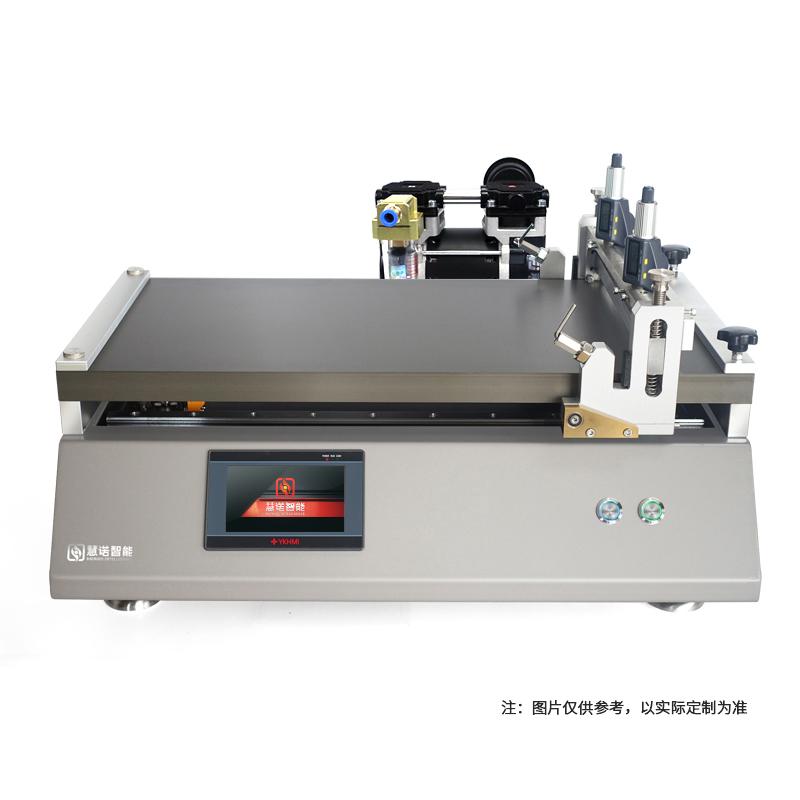

The automatic film applicator is a device used in laboratories for coating thin films, replacing manual coating with automated operation to improve the precision and efficiency of the coating process. This multifunctional film applicator supports two coating methods: wire rod coating and blade coating, making it suitable for materials with high, medium, or low viscosity. It features heating and vacuum adsorption functions to meet the coating requirements of various materials. The innovative and simplified wire rod installation method and the flip-top magnetic blade head significantly enhance coating efficiency and facilitate cleaning. Controlled via a touchscreen, it offers simple operation and allows for free adjustment of coating speed and length. It can also be customized for coating dimensions and functions based on experimental needs.
Product Features
1. Aluminum alloy hard anodized surface coating substrate, with good wear resistance and high flatness.
2. High-quality brand differential regulator, providing high precision in controlling coating thickness with the doctor blade.
3. Simple snap-on wire rod groove, easy to install and remove, preventing wear on the wire rod.
4. Innovative flip-top magnetic doctor blade design, facilitating quick and easy cleaning.
5. Equipped with a high-precision film applicator, original imported wire rod ensures uniform and high-precision coating.
6. Touchscreen control panel, simple and user-friendly operation.
7. Coating length and speed freely adjustable.
8. Features heating and vacuum adsorption functions.
9. Utilizes a servo motor for more stable operation and higher coating precision.
Working Principle
The working principle of an automatic experimental film coater involves controlling the coating head and coating parameters to uniformly apply the sample onto a substrate, thereby forming the desired thin film.
Application Field
Coating film sample preparation for inks, pastes, lithium batteries, adhesives, hot melt adhesives, gels, resins, glues, polymer materials, macromolecular materials, pharmaceutical preparations, etc.
