Product Overview

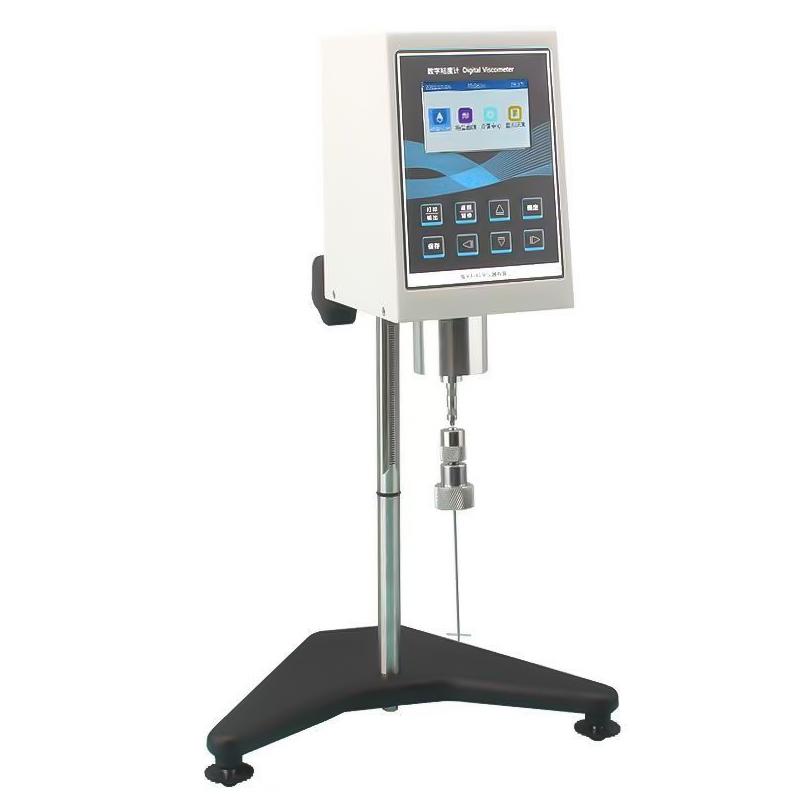

The Pingxuan PX-T Viscometer is a professional measuring instrument equipped with a high-definition color screen and a high-speed chip processor. It features simple operation and rapid data processing, capable of displaying core information such as viscosity curves and temperature in real time. Constructed with a full metal housing, it offers strong anti-interference capabilities. Additionally, it is equipped with a PT100 high-precision temperature sensor and a high-strength small shaft, ensuring accurate measurements and long-lasting durability.
Product Features
1. Equipped with a high-definition color screen and high-performance processor, the interface is simple and user-friendly with rich information display, making it easy for new users to operate.
2. Featuring an all-metal shell design, it offers strong anti-interference capabilities, superior to plastic materials.
3. Equipped with a PT100 high-precision temperature sensor for accurate temperature measurement.
4. Built-in high-speed chip processor ensures fast data processing.
5. Utilizes high-strength small shafts for a sturdy and durable structure.
6. Includes an RS232 printing interface, allowing direct connection to a computer or micro-printer for data printing.
7. Equipped with a timing function to automatically complete non-Newtonian fluid measurements, ensuring data consistency.
8. Capable of real-time display of viscosity curves, viscosity values, temperature, and other information.
9. Supports automatic range display, indicating the maximum measurable viscosity under the current rotor and speed combination.
10. The instrument features data storage functionality, facilitating easy access and comparison of historical data.
11. Provides an optional USB PC interface, supporting computer control and automatic data acquisition.
Working Principle
The viscometer drives a rotor to rotate in the fluid via a motor, and the viscous resistance experienced by the rotor is proportional to the fluid's viscosity. The sensor inside the instrument converts the resistance into an electrical signal, which is then processed by a high-speed chip processor. Finally, the viscosity value, temperature, and change curve are displayed in real-time on the screen.
Application Fields
Ink, glue, latex, solvent-based adhesives, paints and coatings, petroleum, cosmetics, dairy products, fruit juices, pastes, solder paste, red adhesive.
Operating Steps
1. Install and select an appropriate rotor.
2. Place the sample into the measuring container.
3. Immerse the rotor into the sample up to the specified marking.
4. Turn on the instrument power and set the measurement parameters (such as rotational speed) via the color touchscreen interface.
5. Start the measurement; the instrument will operate automatically and display viscosity and temperature data in real time.
6. After the measurement is completed, data can be stored in the instrument or output via an interface connected to a printer or computer.
Precautions
• Ensure the instrument is placed horizontally before use.
• Select the appropriate rotor and speed combination based on the sample's viscosity range.
• The rotor immersion depth must be accurate, avoiding contact with the container walls and bottom.
• When measuring non-Newtonian fluids, it is recommended to use the timing function to obtain consistent data.
• Regularly calibrate the instrument using standard fluids to ensure measurement accuracy.
• Clean the rotor gently to avoid damaging its surface or shape.
• Optional dedicated temperature-controlled baths are available for precise viscosity measurements at constant temperatures.
