$ 9755.00Ex works
Adopt High Accuracy modular Spreader station structure, all-electric control without external air source; Spreader thickness can reach a minimum of 0.01mm, accuracy +/- 0.003mm; equipped with UV LED curing module, instant curing; Spreader width 400mm, speed 2-4.5 m/min adjustable, forward and reverse stepless transmission.
Category : R2R Coater
Brand : HuiNuo
SKU : NB050784
Service :The delivery and service By NBCLab.Com

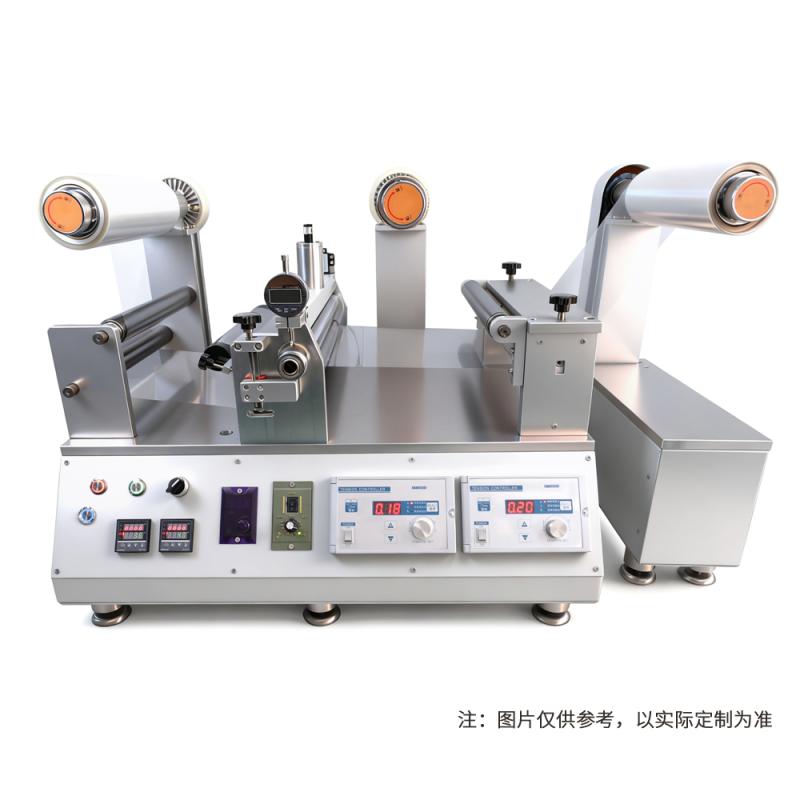

The Hinuo JTM-400UV is a compact continuous coater equipped with UV curing functionality. Designed as a high-precision modular coating station, it features a modular assembly structure and a detachable winding module, allowing for additional modules as needed. The entire machine operates with full electric control, eliminating the need for an external air source. It serves as a laboratory mini hot-melt adhesive coater suitable for continuous coating sampling or small-scale production. It can directly apply hot-melt pressure-sensitive adhesive onto heat-resistant substrates or onto release paper, with the adhesive film then transferred and laminated onto various facing materials. Additionally, a curing module can be added for single-sided coating. The device employs electronically controlled precision tension management, enabling compatibility with diverse materials such as paper, plastic films, and metal foils.
1. It adopts a high-precision modular coating station structure, with modular assembly and a separable winding module, allowing for module addition as needed. 2. The entire machine is fully electric-controlled, eliminating the need for an external air source. 3. The coating thickness is precisely controlled by fine-tuning the gap between the upper and lower adhesive rollers using a dial gauge as an indexing head. 4. The minimum adhesive thickness is 0.01mm. After thickness setting, an electric actuator provides downward pressure to prevent gap changes. 5. The maximum coating width is 400mm (effective coating width 400mm). The width is adjusted using two PEEK baffles inside the adhesive tank. It supports infinite-length coating and automatic winding. 6. It features forward and reverse stepless speed adjustment, with a coating speed of 4.5m/min (adjustable between 2-4.5m/min). The precision electric-controlled unwinding shaft allows precise adjustment of the unwinding tension via a control panel knob and maintains it consistently. 7. The quick-release adhesive tank allows the adhesive roller and tank to be rapidly detached from the machine for easy residual adhesive removal.
This device controls the coating thickness through the precise gap between the upper and lower adhesive rollers, with the gap being finely adjusted via a dial indicator indexing head. The coating material (such as hot melt adhesive) is placed in the adhesive tank and applied to the substrate through the adhesive rollers. The coating process is driven by an electric system, enabling continuous and automatic coating and winding. The device is equipped with a UV curing module, which can cure specific materials after coating.
Hot melt adhesive, gel, hydrocolloid dressing, water-based adhesive, solvent-based adhesive, etc.
1. Adjust the two PEEK baffles in the glue tank according to the coating width. 2. Use the dial indicator indexing head to precisely fine-tune the coating gap between the upper and lower glue rollers, setting the desired coating thickness (minimum 0.01mm). 3. Set the coating speed (adjustable from 2-4.5 m/min) and direction (forward/reverse). 4. Adjust the tension of the precision electronically controlled unwinding shaft using the knob on the control panel. 5. Install the substrate and begin continuous coating and automatic rewinding. 6. After coating is completed or when cleaning is required, the glue tank and upper glue roller can be quickly disassembled to remove residual adhesive.
• The equipment is fully electric-controlled and does not require an external air source. Please ensure the power supply is functioning properly. • When adjusting the coating gap, use a dial indicator for precise micro-adjustments. Once set, the electric actuator will provide downward pressure to prevent gap changes. • The maximum coating width is 400mm, adjustable via the PEEK baffle inside the glue tank. Do not exceed this range. • The coating speed can be continuously adjusted within the range of 2-4.5 m/min. Please select an appropriate speed based on the material characteristics. • When using the quick-release function to clean the glue tank and glue roller, ensure the equipment is stopped and powered off, and pay attention to operational safety. • The equipment is suitable for the listed application materials. Consult and confirm compatibility before using other materials.
