Overview

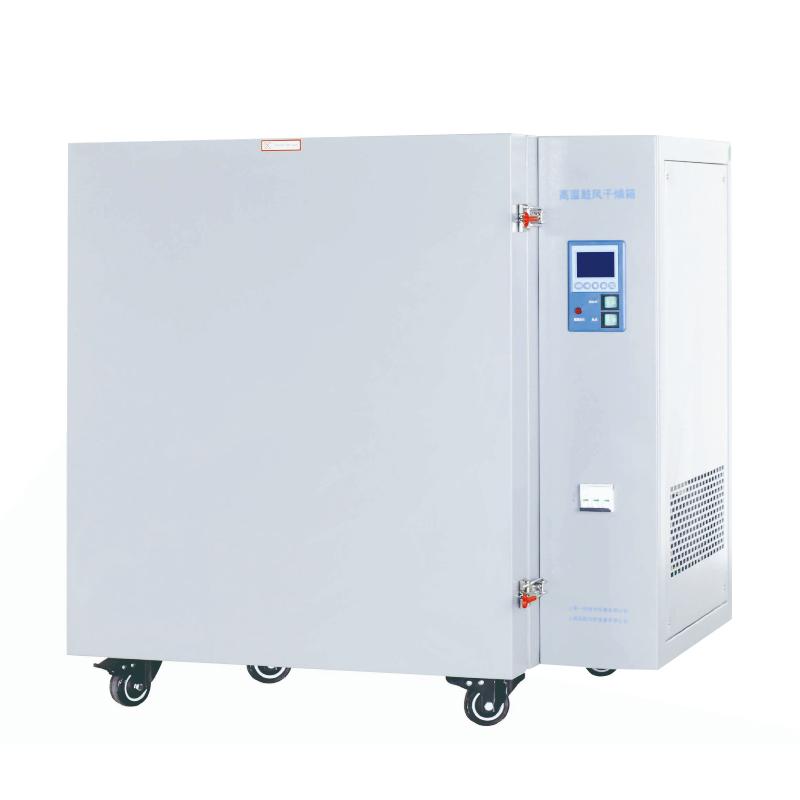

YIHENG BPG-9200AH high temperature blast drying oven is a laboratory blast drying oven with ceramic fiber liner, Temperature range is RT + 20~ 400 ℃, liner size is 600 × 600 × 600mm, Power is 4900W.
Features
1. Mirror stainless steel liner, four corners semicircular arc transition, shelf bracket can be freely loaded and unloaded, easy to clean.
2. Adopt the new P.I.D fuzzy logic processing controller to quickly reach the set value and operate accurately and stably.
3. The door seal is made of ceramic fiber, which can operate at high temperature for a long time and has a long service life.
4. 7 groups of 63 steps can be preset to program, each group of 9 steps, each set time 0~ 5999 minutes, can be preset start and shut down time, circulating fan Rotation speed adjustable.
5. Multi-stage programmable control, Menu Operating interface, simplifies the complex experimental process, realizes automatic control and operation.
6. It is equipped with an independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment (optional).
7. Can be equipped with a printer or RS485 interface to record temperature parameter changes (optional).
Principle
The drying oven is heated by high temperature blast system, using ceramic fiber liner and mirror stainless steel material, combined with P.I.D fuzzy logic controller to precisely adjust the temperature, realize fast and stable heating and programmable automatic control.
Steps
1. Connect the power supply and turn it on.
2. Operating interface settings through the menu temperature, time and other parameters.
3. Optional presets can be programmed or manually adjusted.
4. Start operation and monitor temperature changes.
5. Shut down and clean the liner after operation.
Notice
• Power supply voltage AC380V 50HZ.
• Ambient Temperature at RT + 5~ 40 ℃.
• Independent temperature limit alarm system is optional and requires additional configuration to ensure safety.
• Regularly clean the liner to avoid residues affecting performance.
• Pay attention to weight when handling, Net weight 145kg, gross weight 185kg.
