Overview

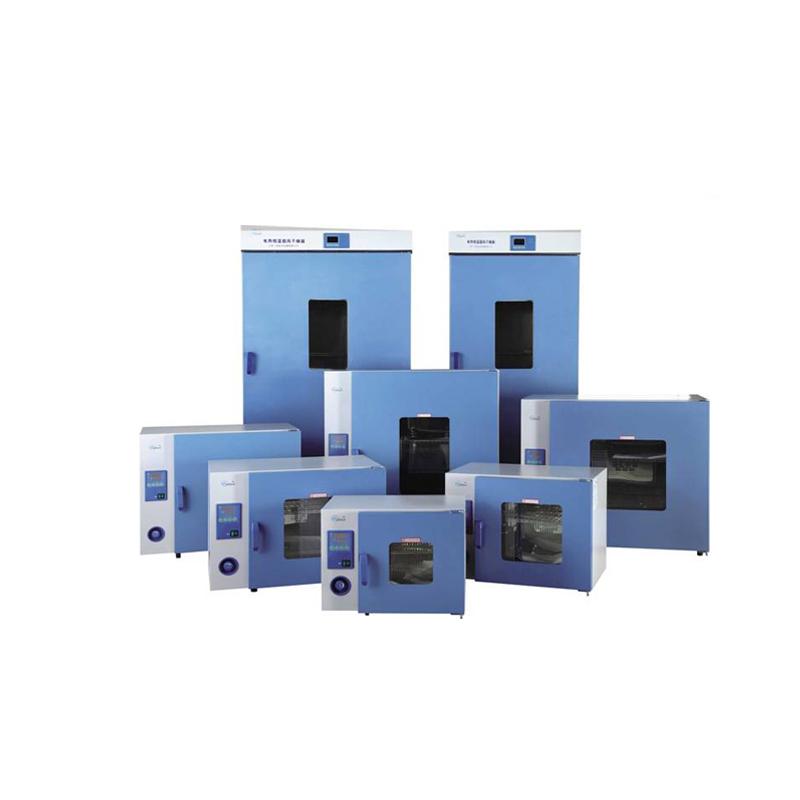

YIHENG DHG-9420A blast drying oven adopts professional laser and numerical control processing equipment to produce, which is used by industrial and mining enterprises, laboratories, R & D institutions for drying, baking wax melting and sterilizing.
Features
1. The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of good steel plate, which is beautiful and novel
2. Adopt microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display, with timing function, accurate and reliable temperature control
3. The hot air circulation system consists of fans that can operate continuously at high temperatures and suitable air ducts to improve the Temperature Uniformity in the working room
4. Adopt a new type of synthetic silicon sealing strip, which can operate at high temperature for a long time, has a long service life, and is easy to replace
5. The air inlet and exhaust volume in the box can be adjusted from the temperature control panel
6. Independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents (optional)
7. Can be equipped with a printer or RS485 interface, used to connect to a printer or computer, and can record changes in temperature parameters (optional)
Principle
The hot air circulation system is used, which is composed of a fan that can operate continuously at high temperature and a suitable air duct. The temperature is accurately controlled by a microcomputer P.I.D temperature controller to realize functions such as drying and baking.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Connect power supply AC380V 50HZ
2. Set the required temperature through the temperature control panel (RT + 10~ 200 ° C)
3. Adjust the air inlet and exhaust volume in the box as needed
4. Set the timing function (0~ 9999min)
5. Start the device and start working
Notice
• Ambient Temperature should be kept at 20 ℃
• Environmental humidity should be kept at 50% RH
• When the temperature limit is exceeded, the independent temperature limit alarm system will be automatically interrupted to ensure safety
• Optional functions need to be configured separately
• Net weight of equipment 185kg, pay attention to safety when handling
