Overview

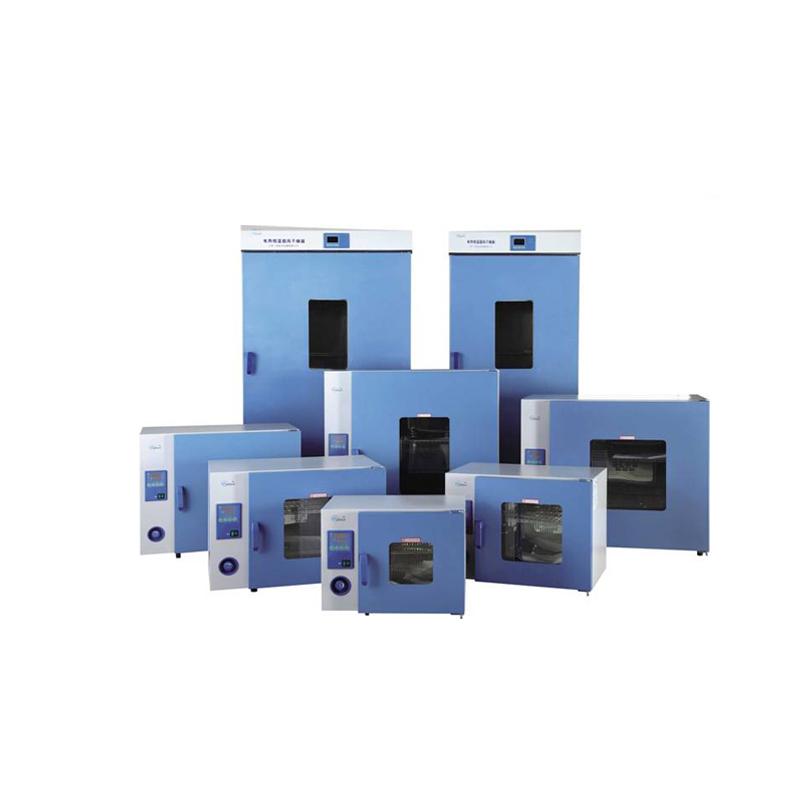

YIHENG DHG-9620A blast drying oven adopts professional laser and numerical control processing equipment to produce, which is used by industrial and mining enterprises, laboratories, R & D institutions for drying, baking wax melting and sterilizing.
Features
1. The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of good steel plate, which is beautiful and novel
2. Adopt microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display, with timing function, accurate and reliable temperature control
3. The hot air circulation system consists of fans that can operate continuously at high temperatures and suitable air ducts to improve the Temperature Uniformity in the working room
4. Adopt a new type of synthetic silicon sealing strip, which can operate at high temperature for a long time, has a long service life, and is easy to replace
5. The air inlet and exhaust volume in the box can be adjusted from the temperature control panel
6. Independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents (optional)
7. Can be equipped with a printer or RS485 interface, used to connect to a printer or computer, and can record changes in temperature parameters (optional)
Principle
The temperature in the box is precisely controlled by the microcomputer P.I.D temperature controller, and the hot air circulation system is composed of a fan and an air duct to ensure uniform temperature distribution in the working room and realize functions such as drying and baking.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Connect power supply AC220V 50HZ
2. Set the required temperature (RT + 10~ 200 ° C) and timing time (0~ 9999min) through the temperature control panel
3. Adjust the air inlet and exhaust volume in the box as needed
4. Start the device and start working
5. Turn off the power after the work is completed
Notice
• Equipment Ambient Temperature should be kept at 20 ℃, Humidity 50% RH
• Check whether the Power supply voltage meets the requirements of AC220V before use
• Note that the maximum input Power of the device is 4000W
• Regularly check the condition of the sealing strip and replace it in time if necessary
• When the temperature limit is exceeded, the independent temperature limit alarm system will automatically interrupt the work
• Optional functions require separate purchase of corresponding accessories
