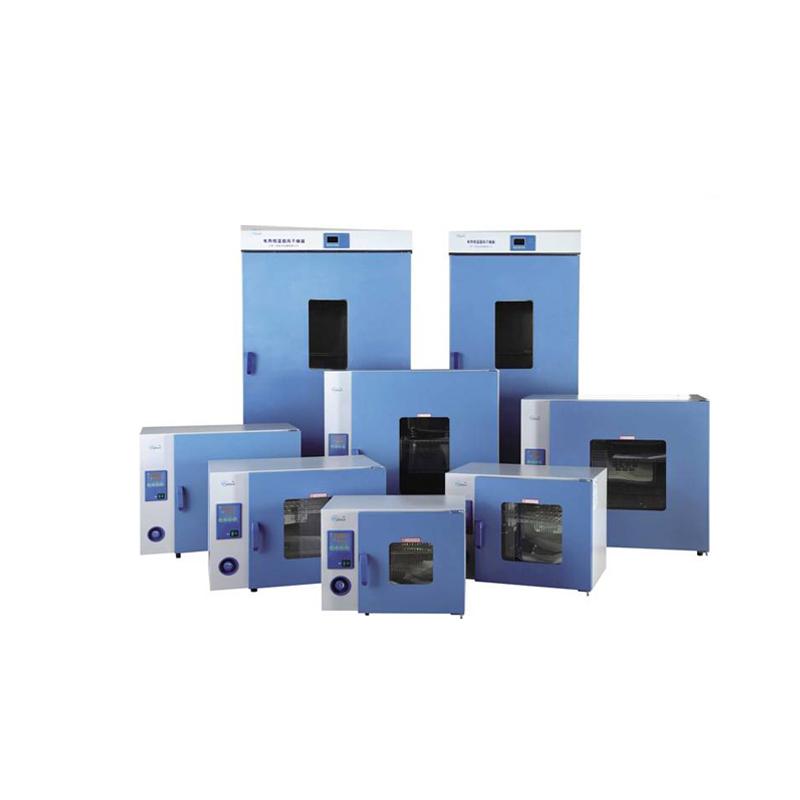

YIHENG DHG-9425A Drying Oven blast Drying Oven mirror stainless steel studio

Name: YIHENG DHG-9425A Drying Oven blast Drying Oven mirror stainless steel studio
Brand: YiHeng
SKU: NB005087
Price: 2017.0 USD
Availability: InStock

$ 2017.00Ex works

Temperature range RT + 10~ 300 ℃, Temperature Fluctuation +/- 1.0 ℃, using hot air circulation system to improve Temperature Uniformity, can adjust the air inlet and exhaust from the panel, with over temperature deviation protection and independent temperature limit alarm function.

Model

DHG-9425A

Get Quote

Category : Drying Oven

Brand : YiHeng

SKU : NB005087

Service :The delivery and service By NBCLab.Com

Overview

YIHENG DHG-9425A blast drying oven adopts professional laser and numerical control processing equipment to produce, which is used by industrial and mining enterprises, laboratories, R & D institutions for drying, baking wax melting and sterilizing.

Features

1. The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of good steel plate, which is beautiful and novel 2. Adopt microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display, with timing function, accurate and reliable temperature control 3. The hot air circulation system consists of fans that can operate continuously at high temperatures and suitable air ducts to improve the Temperature Uniformity in the working room 4. Adopt a new type of synthetic silicon sealing strip, which can operate at high temperature for a long time, has a long service life, and is easy to replace 5. The air inlet and exhaust volume in the box can be adjusted from the temperature control panel 6. Independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents (optional) 7. Can be equipped with a printer or RS485 interface, used to connect to a printer or computer, and can record changes in temperature parameters (optional)

Principle

The temperature is precisely controlled by the microcomputer P.I.D temperature controller, and a uniform temperature field is formed in the studio with the hot air circulation system to realize functions such as drying and baking.

Applications

Industrial and mining enterprises, laboratories, R & D institutions

Power supply Voltage
AC 220V 50HZ
Temperature Range
RT+10~300℃
Temperature Fluctuation
±1.0℃
Temperature resolution
0.1℃
Temperature Uniformity
+/- 3% (test point is 100℃)
Operating temperature
+5~40℃
Input Power
3100W
Volume
420L
Liner Size
640*585*1355mm
Dimension
780*730*1780mm
shelf (std.)
3 pieces
Timer Range
0~9999min
