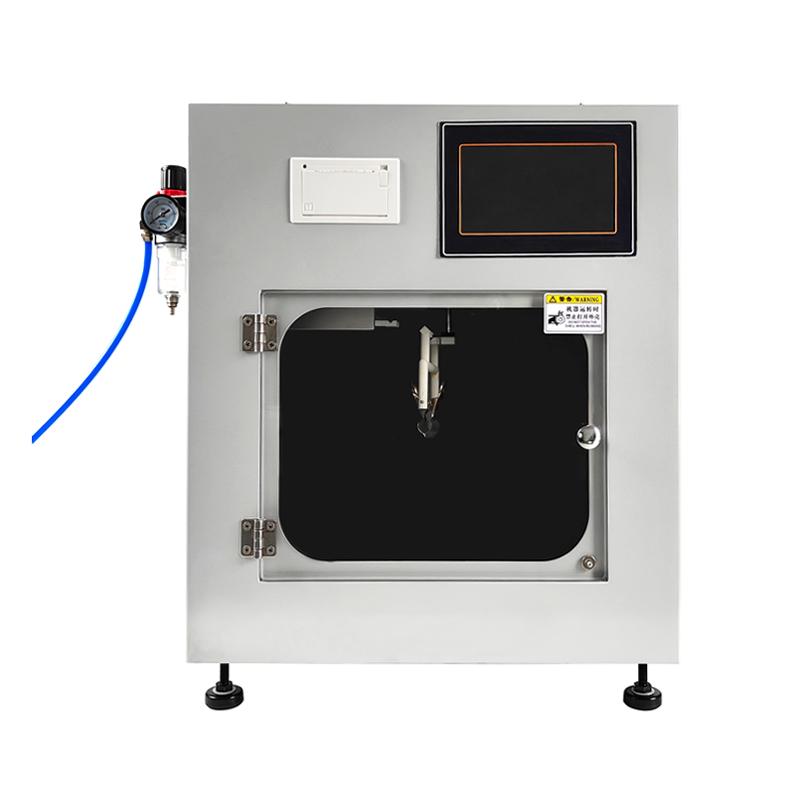

Yante YT-DFL Toilet Paper Dusting Rate Tester, Dusting Rate Detector, Pneumatic Clamping Fully Automatic Measurement.

Name: Yante YT-DFL Toilet Paper Dusting Rate Tester, Dusting Rate Detector, Pneumatic Clamping Fully Automatic Measurement.
Brand: YanTe
SKU: NB050874
Price: 3059.0 USD
Availability: InStock

$ 3059.00Ex works

Featuring a Cotex-M4 ARM processor, it employs pneumatic sample clamping and an integrated weighing mechanism to achieve fully automated measurement. The oscillation frequency is adjustable from 50 to 200 times per minute, with a weighing resolution of up to 0.001g.

Model

YT-DFL

Get Quote

Category : Other Instruments

Brand : YanTe

SKU : NB050874

Service :The delivery and service By NBCLab.Com

Product Overview

The tissue paper dusting rate tester (Model: YT-DFL) is a professional testing instrument developed in accordance with relevant standards, suitable for measuring the dusting rate of various tissue papers. Its working principle involves securing the sample on a holder and swinging it for a specified period, after which the mass change before and after swinging is precisely measured to calculate the dusting rate.

Product Features

1. Equipped with a Cortex-M4 ARM processor for stable performance. 2. Test data can be exported via a USB drive for convenient data management. 3. Both the system and screen software support upgrades via network or USB drive. 4. Supports multiple communication methods; the companion software (sold separately) can communicate via Wi-Fi or USB. 5. Test data can be uploaded to a cloud server. Combined with the QMS Paper Quality Management System (sold separately), paper testing data can be monitored in real time. 6. Features pneumatic clamping and a built-in weighing mechanism for fully automated measurement.

Working Principle

Fix the prepared long end of the sample onto the sample clamp, start the instrument, swing for a certain period of time and then stop, precisely weigh the mass before and after swinging, and calculate the powder loss rate based on the mass difference.

Application Fields

Toilet paper

Complies with standards

GB/T20810

Operating procedures

1. Prepare the specimen. 2. Fix the long end of the specimen onto the specimen holder. 3. Start the instrument and perform the swing test. 4. After the swing test is completed, stop the instrument. 5. Weigh the specimen mass before and after the swing.

Precautions

• Ensure the instrument is used in an environment that meets standards. • Please carefully read the relevant standards and the instrument manual before operation. • Regularly maintain and calibrate the instrument to ensure measurement accuracy. • The online software and QMS Paper Quality Management System are optional purchases.

Power supply voltage
AC(100～240)V，(50/60)Hz，100W
Working environment
Temperature (10～35)℃, relative humidity ≤85%
Display
7-inch IPS HD screen with 1024*600 resolution capacitive touch.
Number of swings
(180±2) times/minute (50~200 times/minute)
Swing distance
（100±5）mm
Standard swing time
2 minutes (0.1~60 minutes)
Weighing range
0~200g (excluding the sample holder)
Air supply pressure
0.2~0.3MPa
Resolution
0.001g
Data Storage
50 test data points
Data Export
USB Flash Drive Data Export
Print output
Thermal printer
Communication Interface
USB、WIFI（2.4G）
Overall Dimensions
570×320×630 mm
Net weight
Approximately 34kg
