Product Overview

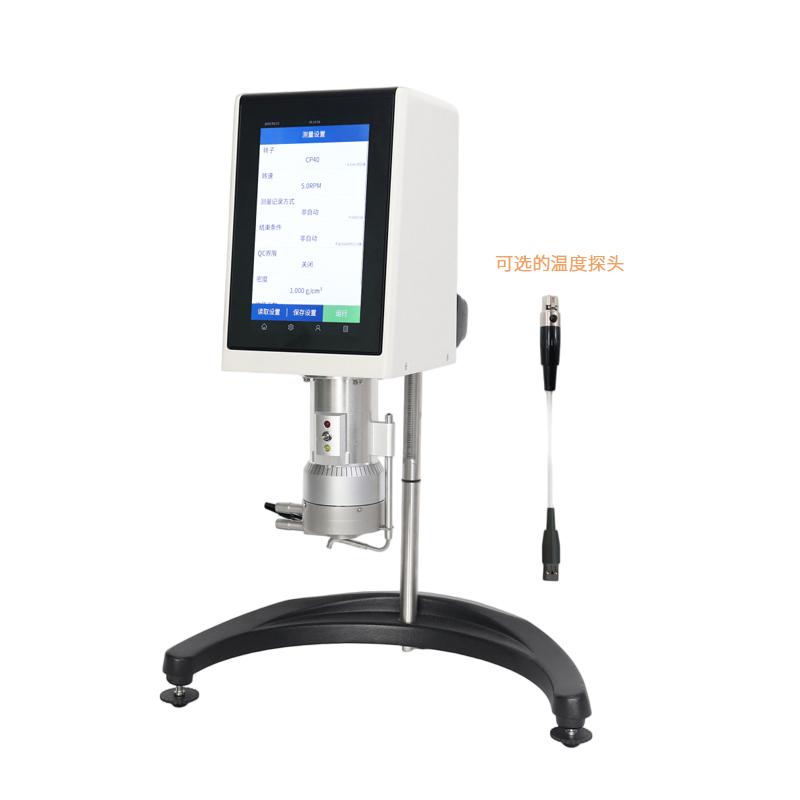

The DV-IICPHA Cone-Plate Viscometer from Pingxuan is a precision instrument designed for viscosity measurement of small sample volumes, requiring only 0.5–2.0 mL of sample. It features an advanced CORTEX-A7 core and a LINUX operating system, equipped with a 7-inch color LCD touchscreen. The user interface is intuitive and straightforward, allowing users to quickly set up tests and collect data, while also offering programming capabilities and result analysis functions. Test data can be transferred to a computer, printed via a mini printer, or exported via a USB drive, with support for remote control.
Product Features
1. 7-inch full-color touchscreen display, supporting multiple language interfaces including Chinese, English, Japanese, and Korean, with real-time trend display.
2. Enhanced safety control, supporting customizable user permissions, test date and time recording, and portable login settings.
3. Built-in temperature control, timed measurement, user-defined speed/rotor lists, and programmable QC upper/lower limits/alarm functions.
4. Capable of displaying viscosity (cP, mPa·s), kinematic viscosity (cSt or mm²/s), temperature (°C or °F), shear rate/shear stress, % torque-speed/rotor, and program step status.
5. Designed for small sample volumes, requiring only 0.5–2.0 mL of sample, with minimal sample consumption and rapid temperature stabilization.
6. Equipped with USB/RS232 interfaces, with optional PC control software or direct connection to a micro printer.
7. Optional temperature probe (built into the sample cup) and viscometer-specific constant-temperature water bath for direct sample temperature measurement and control.
8. Provides precise shear rates for determining sample rheological curves.
9. Test accuracy up to ±1.0%, with temperature control range of 5°C–80°C.
Working Principle
The cone-plate viscometer operates based on the principle of cone-plate rheometry. The instrument drives a conical rotor to rotate on a fixed flat plate (or sample cup), creating a precise narrow gap between the cone and plate to accommodate the sample. As the rotor rotates at a set speed, the sample undergoes shear, and the instrument measures the torque required to maintain this rotation. Based on known geometric parameters (cone angle, gap), rotational speed, and the measured torque, the instrument can accurately calculate rheological parameters of the sample, such as viscosity, shear stress, and shear rate.
Application Areas
Suitable for fields requiring viscosity measurement with small sample quantities, such as research and development and quality control in industries like coatings, inks, adhesives, cosmetics, food, pharmaceuticals, and petrochemical products.
Compliant with standards
The specific compliance standards are not mentioned in the materials.
Operating steps
Detailed operating procedures are not provided in the materials.
Precautions
No specific precautions are provided in the materials.
