Featuring a CORTEX-A7 core and LINUX system, it is equipped with a 7-inch color touchscreen and supports multi-language operation. The sample volume required is only 0.5-2.0 mL, with a testing accuracy of ±1.0% and a temperature range of 5°C to 80°C. It can measure rheological curves and supports remote control and data export.
Category : Rotational Viscometer
Brand : PingXuan
SKU : NB050878
Service :The delivery and service By NBCLab.Com

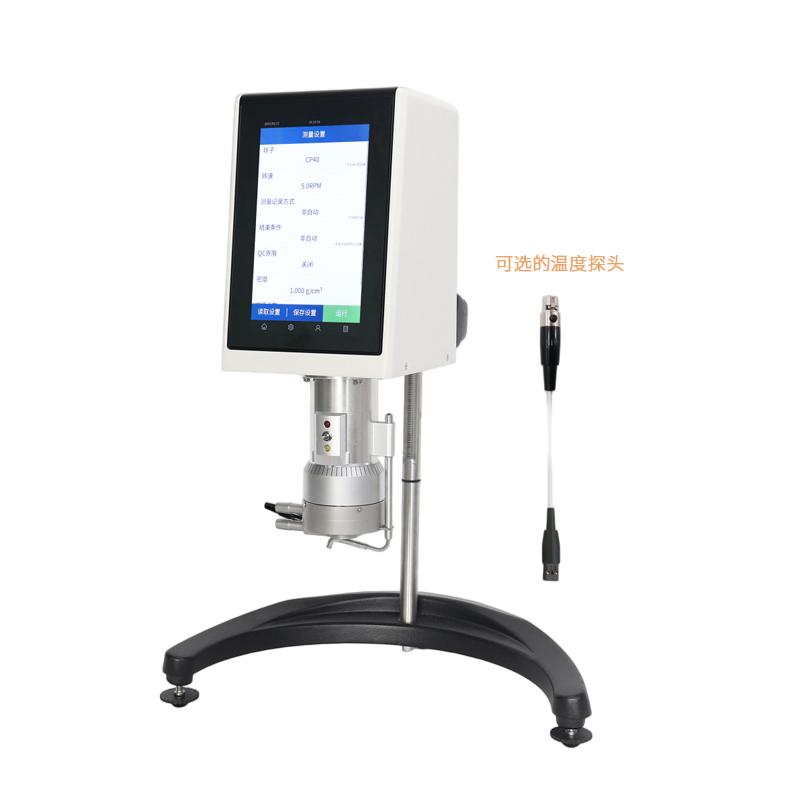

The Pingxuan DV-IICPHB Cone and Plate Viscometer is a precision instrument suitable for measuring the viscosity of small sample volumes, requiring only 0.5–2.0 mL of sample. Equipped with an advanced CORTEX-A7 core and the LINUX operating system, it features a 7-inch color LCD touchscreen with a user-friendly interface that quickly guides users through test setup and data collection. The instrument offers robust programming and analysis capabilities, supports data averaging and QC upper/lower limit alarms, and enables data transmission and export through multiple methods. It also supports remote control via computer.
1. Equipped with a 7-inch full-color touchscreen, supporting multi-language interfaces for intuitive operation. 2. Enhanced security controls, supporting customizable user permissions, test date and time logging, and portable login. 3. Built-in rich functional options, including temperature control, timed measurement, customizable speed/rotor lists, and programmable QC alarms. 4. Comprehensive display information covering viscosity, kinematic viscosity, temperature, shear rate/shear stress, torque percentage, and program status. 5. Specifically designed for small sample volumes, requiring only 0.5-2.0 mL, with fast and constant temperature. 6. Provides USB/RS232 interfaces, with optional computer control software and a mini printer. 7. Optional temperature probe (built into the sample cup) and dedicated constant temperature water bath for precise temperature measurement and control. 8. Delivers precise shear rates for measuring sample rheological curves. 9. High testing accuracy (±1.0%) and a wide temperature range (5°C~80°C).
The cone-plate viscometer shears the sample through the gap between a rotating conical rotor and a stationary flat plate. The instrument precisely controls the rotational speed of the rotor (i.e., the shear rate) and measures the torque required to maintain this motion (i.e., the shear stress). Based on the measured relationship between torque and rotational speed, combined with known geometric parameters (cone angle and gap), the absolute viscosity of the sample (such as cP or mPa·s) and other rheological parameters can be calculated.
Suitable for fields requiring viscosity measurement with small sample volumes, such as research and development and quality control in industries like coatings, inks, adhesives, cosmetics, food, pharmaceuticals, and petrochemicals.
Not mentioned
1. Power on and log in to the system (based on user permissions). 2. Select or create a test program on the touchscreen according to the sample characteristics (settings include speed, rotor, temperature, QC limits, etc.). 3. Install the selected cone rotor. 4. Take 0.5-2.0 mL of the sample and inject it into the sample cup (if temperature control is required, connect a constant-temperature water bath; if temperature measurement is needed, a sample cup with a probe can be selected). 5. Properly install the sample cup and rotor onto the instrument. 6. Start the test program. The instrument will automatically perform measurements and display real-time data and trends. 7. After the test is completed, data can be viewed, transmitted to a computer via an interface, printed using a micro printer, or exported via a USB drive. 8. Optional remote control software is available for automatic instrument control and data acquisition and analysis via a computer.
* The instrument must be used in a stable, vibration-free environment. * Select the appropriate cone rotor based on sample characteristics (such as viscosity range, presence of particulate matter). * The sample volume should be controlled within the recommended range of 0.5-2.0 mL, and ensure the sample fills the cone-plate gap while avoiding bubbles. * If precise temperature control or measurement is required, please select the dedicated constant temperature water bath and sample cup with a temperature probe. * Clean the rotor and sample cup promptly after use to prevent sample residue from affecting subsequent measurement accuracy. * Regularly calibrate the instrument using standard solutions to ensure measurement accuracy. * When operating the software, set reasonable QC upper and lower limit alarm values to promptly identify issues. * The remote control software is an optional accessory and must be purchased separately if needed.
