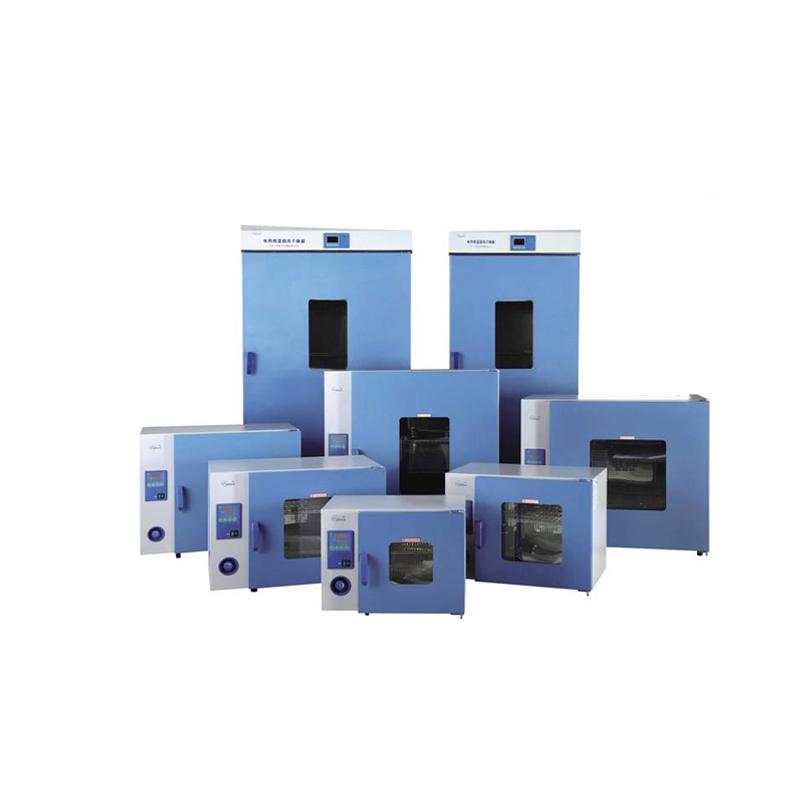

YIHENG DHG-9625A Drying Oven baking wax sterilized mirror stainless steel argon arc welding

Name: YIHENG DHG-9625A Drying Oven baking wax sterilized mirror stainless steel argon arc welding
Brand: YiHeng
SKU: NB005088
Price: 2327.0 USD
Availability: InStock

$ 2327.00Ex works

Temperature range RT + 10~ 300 ℃, Temperature Fluctuation +/- 1.0 ℃, using microcomputer P.I.D temperature controller, hot air circulation system to improve Temperature Uniformity, independent temperature limit alarm to ensure safety.

Model

DHG-9625A

Get Quote

Category : Drying Oven

Brand : YiHeng

SKU : NB005088

Service :The delivery and service By NBCLab.Com

Overview

YIHENG DHG-9625A drying oven adopts professional laser and numerical control processing equipment, which is used for drying, baking and melting wax and sterilizing in industrial and mining enterprises, laboratories and R & D institutions.

Features

1. The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of good steel plate, which is beautiful and novel. 2. Adopt microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display, with timing function, accurate and reliable temperature control. 3. The hot air circulation system consists of a fan that can operate continuously at high temperature and a suitable air duct to improve the Temperature Uniformity in the working room. 4. Adopt a new type of synthetic silicon sealing strip, which can operate at high temperature for a long time, has a long service life, and is easy to replace. 5. The air inlet and exhaust volume in the box can be adjusted from the temperature control panel. 6. Independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents. (optional) 7. Can be equipped with a printer or RS485 interface, used to connect to a printer or computer, and can record changes in temperature parameters. (optional)

Principle

The drying oven precisely controls the temperature through a microcomputer P.I.D temperature controller, and the hot air circulation system is composed of a fan and an air duct to ensure uniform temperature distribution in the working room and realize functions such as drying and baking.

Applications

Industrial and mining enterprises, laboratories, R & D institutions

Power supply Voltage
AC 220V 50HZ
Temperature Range
RT+10~300℃
Temperature Fluctuation
±1.0℃
Temperature resolution
0.1℃
Temperature Uniformity
+/- 3% (test point is 100℃)
Operating temperature
+5~40℃
Input Power
4000W
Volume
620L
Liner Size
840*600*1355mm
Dimension
980*800*1880mm
shelf (std.)
4 pieces
Timer Range
0~9999min
