Key parameters include inter-instrument agreement ΔE*ab ≤ 0.25 and chromaticity value repeatability ΔE*ab ≤ 0.02, with features such as automatic aperture recognition, high-definition camera positioning, a damping handle, and four UV measurement modes.
Category : Colorimeter
Brand : CHNSpec
SKU : NB050880
Service :The delivery and service By NBCLab.Com

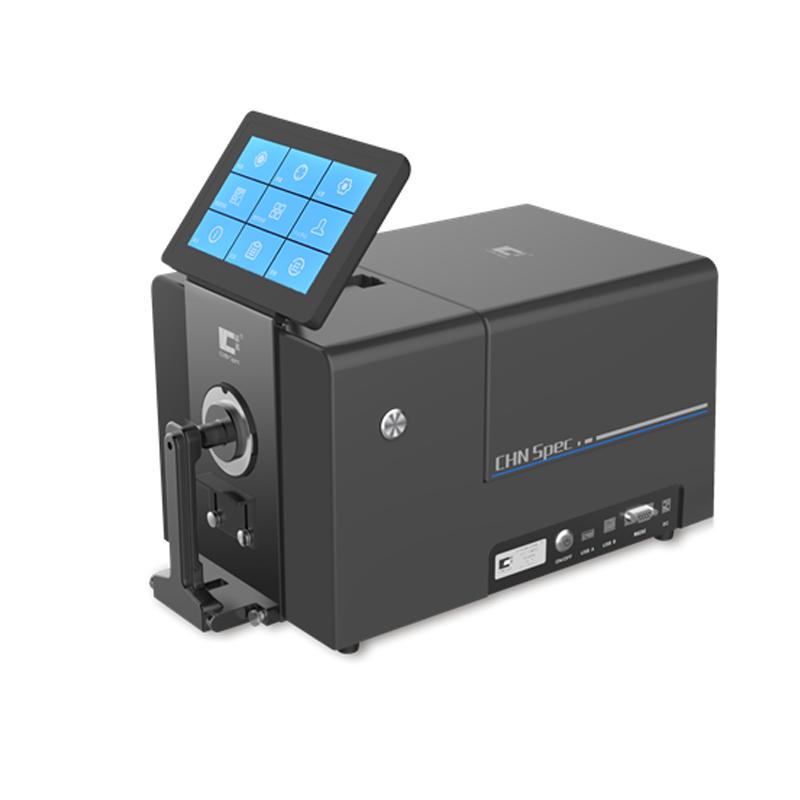

The CS-820P is a benchtop spectrophotometer featuring dual-beam spectral analysis technology, providing true inter-instrument agreement parameters. It is equipped with the Android operating system and a rotatable capacitive touchscreen, supporting one-button startup and guided navigation for beginners to quickly get started. The instrument offers both reflectance and transmittance measurement modes, is compatible with SCI/SCE measurements, and delivers excellent stability and accuracy.
1. Provide true inter-instrument agreement, without exaggerating specifications. 2. Equipped with a green calibration plate for long-term accuracy verification. 3. Automatically recognizes aperture size when switching, avoiding errors. 4. High-definition preview camera for clear positioning of the measurement area. 5. One-button startup with guided instructions— no training required. 6. User-friendly software interface with clear, easy-to-read data display. 7. Dampened measurement handle for slow rebound, preventing sample damage. 8. Transmission D/0 and reflection D/8 optical geometries. 9. Dual-beam spectral analysis technology, capturing both sample and internal environmental reference data simultaneously. 10. Compatible with SCI/SCE measurements, supporting rapid simultaneous tests with a measurement time of less than 4 seconds. 11. Android operating system with a rotatable capacitive touchscreen. 12. Open transmission sample chamber, accommodating large-sized samples. 13. Rich accessory selection: 15 standard accessories and 12 optional ones. 14. Built-in accessory drawer in the instrument for convenient storage and protection. 15. Four UV measurement modes.
The CS-820P adopts the D/8 illumination and observation condition (reflection) and D/0 structure (transmission) recommended by the International Commission on Illumination. Utilizing dual-beam spectral analysis technology, it simultaneously acquires measurement sample data and internal environmental reference data to ensure measurement accuracy and long-term stability. The instrument is equipped with a pulsed xenon lamp and LED as light sources, uses a concave grating for spectral dispersion, and employs a silicon photodiode array sensor. It supports both specular component included (SCI) and specular component excluded (SCE) measurements.
Color measurement, color difference analysis, quality control, scientific research experiments, coatings, plastics, textiles, printing, food, cosmetics, automotive, universities, and third-party testing institutions.
CIE LAB, CIE LUV, LCh, Hunter Lab, Yxy, XYZ, Munsell, s-RGB, βxy, ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc, ΔE*94, ΔE*00, ΔEab (Hunter), 555 Hue Classification, WI (Multiple Standards), YI (ASTM D1925, etc.), Tint (ASTM E313-00), Metamerism Index Milm, Stain Resistance, Color Change Fastness, Hiding Power, Tinting Strength, Strength, A Density, T Density, E Density, M Density, Haze, Total Transmittance
1. One-key startup with instrument startup wizard guidance. 2. Select measurement mode (reflectance or transmittance) and aperture size according to the guidance (instrument automatically identifies). 3. Use the high-definition preview camera to locate the measurement area. 4. Perform white, black cavity, and green plate calibration. 5. Place the sample at the measurement position and press the measurement handle to take the measurement. 6. View spectral data, chromaticity data, color difference charts, and other results on the touchscreen. 7. If data needs to be saved, use the Android system storage or export via USB.
- Calibrate with white, black cavity, and green tiles before use. - Ensure the working temperature is between 5–40°C, with relative humidity below 80% (at 35°C) and no condensation. - Storage temperature range: -20–45°C. - The measurement handle features a damping design for slow rebound; avoid pressing forcefully. - The instrument automatically recognizes when switching apertures; ensure corresponding aperture plates are replaced accordingly. - The thickness of transmission samples should not exceed 50mm. - The accessory drawer is used to store and protect accessories, preventing loss. - Avoid direct strong light or electromagnetic interference during operation.
