Product Overview

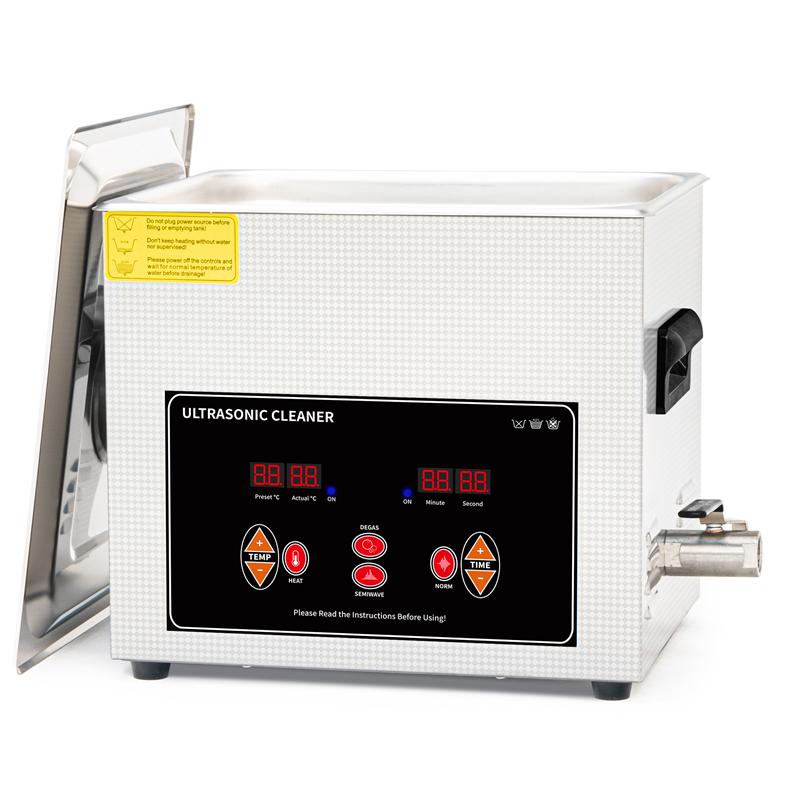

Dekang Ultrasonic Cleaner Model 410HTDS is a 10L digital timed heating cleaning device with an inner tank size of 300×240×150mm, equipped with 4 transducers, ultrasonic power of 240W, frequency of 40KHz, and a heating power of 300W. It supports LCD digital timing from 0 to 99 minutes and temperature control from 0 to 80°C, featuring a 1/2″ drain valve, cleaning basket, and soundproof cover. Compatible with dual voltages of 110V/60Hz and 220V/50Hz, it ensures deep, no-dead-angle cleaning, easy operation, stable performance, and long-lasting durability.
Product Features
1. Equipped with 4 ultrasonic transducers, ultrasonic power 240W, frequency 40KHz.
2. 300W heating power, supports temperature control from 0 to 80°C.
3. Digital LCD screen, supports timing from 0 to 99 minutes.
4. Equipped with a 1/2″ water valve for easy drainage.
5. Includes a cleaning basket and a soundproof lid.
6. Supports dual voltage adaptation: 110V/60Hz and 220V/50Hz.
7. Deep and thorough cleaning with no blind spots, easy to operate, stable and durable.
Working Principle
The device generates high-frequency electrical signals through an ultrasonic generator, driving the vibrator (transducer) at the bottom of the cleaning tank to convert electrical energy into mechanical vibrations, creating a cavitation effect in the cleaning liquid. The cavitation bubbles rapidly collapse on the surface of objects, generating tiny impact forces that dislodge attached dirt, achieving deep and thorough cleaning. The heating function accelerates the dissolution of stains in the cleaning liquid, enhancing the cleaning effectiveness.
Application Areas
Multi-scenario usage (e.g., laboratories, medical devices, industrial parts, jewelry, eyewear, hardware components, and other areas requiring precision cleaning).
Compliant with standards
Not mentioned.
Precautions
- Ensure the voltage matches the device rating before use.
- Keep the cleaning solution below the maximum water level line inside the tank to avoid overflow.
- Do not activate the ultrasonic function when the tank is empty to prevent damage to the transducer.
- Pay attention to temperature settings when heating to avoid overheating or damaging heat-sensitive items.
- Drain and clean the inner tank promptly after cleaning is complete.
- The soundproof cover is used to reduce noise; ensure it is sealed properly during use.
- Regularly check the power cord and drainage valve, and keep the equipment dry.
