Product Overview

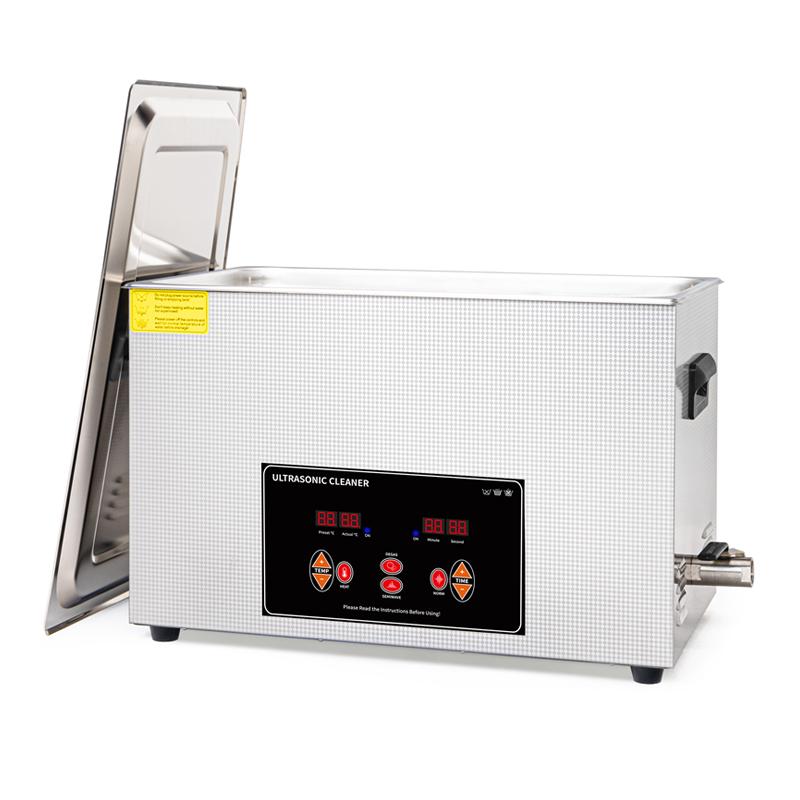

1030H TDS Digital Timing Heating Ultrasonic Cleaner with a capacity of 30L, inner tank dimensions of 500*300*200mm, equipped with 10 transducers, ultrasonic power of 600W, and frequency of 40KHz. This device features a heating power of 500W, supports digital LCD timing from 0 to 99 minutes and temperature control from 0 to 80℃, is equipped with a 1/2-inch water valve for easy drainage, and comes with a cleaning basket and a sound-dampening cover. It is compatible with dual voltage adaptations of 110V/60Hz and 220V/50Hz, enabling deep and thorough cleaning without dead angles. Convenient to operate, stable, and durable, it is suitable for use in multiple scenarios.
Product Features
1. Equipped with 10 transducers, ultrasonic power of 600W, and frequency of 40KHz, enabling deep and thorough cleaning without死角.
2. Supports digital LCD timer from 0-99 minutes and temperature control from 0-80°C to meet various cleaning needs.
3. Features a 1/2-inch water valve for convenient drainage.
4. Includes a cleaning basket and a soundproof cover to enhance the user experience.
5. Compatible with dual voltages—110V/60Hz and 220V/50Hz—suitable for different regions.
6. Easy to operate, stable, and durable.
Working Principle
Ultrasonic cleaners generate ultrasonic waves through high-frequency oscillations, creating a cavitation effect in the liquid that produces numerous tiny bubbles. These bubbles rapidly collapse on the surface of objects, generating powerful impact forces that strip away dirt and impurities, achieving deep cleaning. The heating function accelerates the reaction speed of the cleaning solution, improving cleaning efficiency.
Application areas
It can be used for cleaning in fields such as mechanical parts, medical devices, laboratory glassware, jewelry, and electronic components.
Compliant with the standard.
No explicit standard has been mentioned.
Operation steps
1. Place the items to be cleaned into the cleaning basket, and put the soundproof cover on the device.
2. Pour the cleaning solution into the inner tank, ensuring the liquid level is not lower than the specified height.
3. Connect the power supply, set the timing (0-99 minutes) and heating temperature (0-80°C) as needed.
4. Start the device to begin cleaning.
5. After cleaning is complete, turn off the device and open the drain valve to discharge the liquid.
6. Remove the cleaning basket, take out the items, and dry them.
Precautions
- Before use, ensure the power supply voltage matches the device (110V/60Hz or 220V/50Hz).
- Do not fill cleaning fluid beyond the maximum liquid level line of the inner tank.
- During the cleaning process, avoid direct contact with the ultrasonic transducer area.
- When draining, ensure the drain valve is fully opened before draining.
- Avoid using corrosive or flammable liquids for cleaning.
- Regularly inspect the device's power cord and interfaces to ensure safe use.
- If not in use for an extended period, clean and dry the inner tank.
- Avoid starting the device without liquid.
- Do not use or store the device in high-temperature or humid environments.
