Product Overview

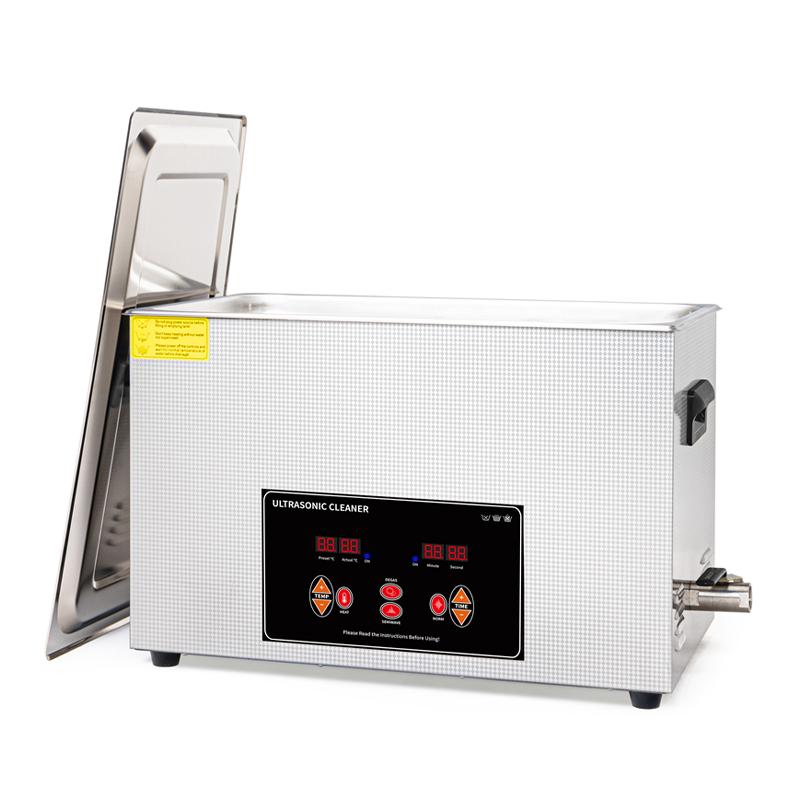

Decoin Ultrasonic 1037HTDS is a digital timing heating ultrasonic cleaner with a capacity of 35L, an inner tank size of 500*300*235mm, equipped with 12 transducers, an ultrasonic power of 720W, a frequency of 40KHz, and a heating power of 700W. It supports digital LCD 0-99 minute timing and 0-80°C temperature control, is equipped with a 1/2-inch water valve for easy drainage, and comes with a cleaning basket and a soundproof lid. It is compatible with dual voltages of 110V/60Hz and 220V/50Hz, enabling deep, dead-angle-free cleaning, with easy operation, stable performance, and durability.
Product Features
1. Large capacity 35L inner tank with dimensions of 500*300*235mm to meet diverse cleaning needs.
2. 12 vibrator heads design, ultrasonic power 720W, frequency 40KHz for efficient deep cleaning.
3. 700W heating power with 0-80℃ temperature control, supporting heating function.
4. Digital LCD timer function, adjustable from 0 to 99 minutes for precise operation.
5. Equipped with a 1/2-inch water valve for convenient drainage.
6. Includes a cleaning basket and a soundproof cover to enhance user experience.
7. Supports dual voltage adaptation for 110V/60Hz and 220V/50Hz, adaptable to different power environments.
Working principle
The ultrasonic cleaner converts electrical energy into high-frequency mechanical vibrations through a transducer, generating ultrasonic waves that propagate in the liquid and create a cavitation effect. The cavitation bubbles rapidly collapse on the object's surface, producing strong impact forces that remove dirt and achieve deep, no-dead-angle cleaning. The heating function can enhance cleaning efficiency, with the temperature adjustable from 0 to 80°C.
Application Areas
Industrial parts cleaning, medical equipment cleaning, laboratory apparatus cleaning, jewelry and ornament cleaning, optical lens cleaning, electronic component decontamination
Compliant with standards
The relevant industry standards are not mentioned in the documents, so they are not listed.
Operating steps
1. Add an appropriate amount of clean water or cleaning solution to the inner tank.
2. Place the items to be cleaned into the cleaning basket, then put it into the tank.
3. Connect the power supply, set the required ultrasonic time and heating temperature (if heating is needed).
4. Start the equipment to begin cleaning, and wait for the timer to finish and stop automatically.
5. After cleaning, open the drain valve to discharge the liquid.
Precautions
- Ensure the power supply voltage matches the equipment (110V/60Hz or 220V/50Hz) during use.
- Avoid running without a load to prevent damage to the transducer.
- The cleaning liquid level should be above the surface of the vibration head to prevent it from being too low.
- When using the heating function, pay attention to the temperature setting to avoid overheating.
- After draining, clean the inner tank and keep the equipment stored dry.
