Using High Accuracy Electrochemical sensor and 32-bit microprocessor, Measurement accuracy ≤ +/- 3% F.S., Response Time ≤ 30 seconds. Built-in 4000mA large-capacity battery, 3.5-inch IPS color screen display, support Data storage, printing, export and fall alarm functions.
Category : Gas Detector
Brand : KORNO
SKU : NB050893
Service :The delivery and service By NBCLab.Com

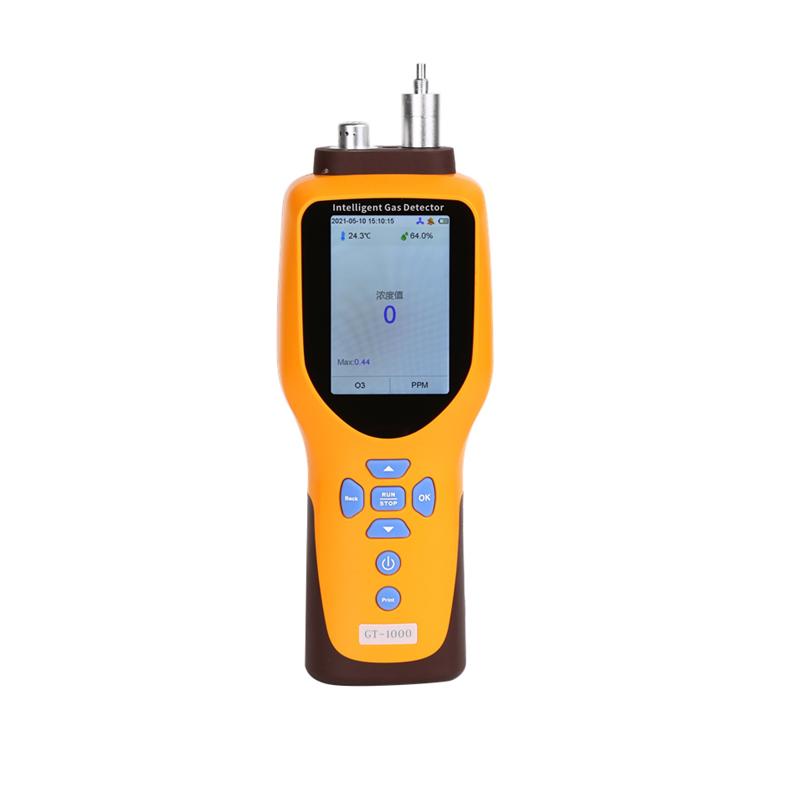

The GT-1000 series portable pumped multi-gas detector is designed for the concentration detection of various mixed gases in industrial environments and special settings. It utilizes high-precision electrochemical gas sensors and microcontroller technology, offering fast response, high measurement accuracy, excellent stability, and repeatability. All parameters can be customized by the user, and the operation is simple. It is equipped with a built-in 4000mAh high-capacity polymer rechargeable battery for extended standby time. Featuring a 3.5-inch full-view IPS industrial color screen, it displays various technical indicators and gas concentration values, allows viewing of historical data on the screen, and supports functions such as data storage, data printing, data export, and temperature and humidity detection.
1. Built-in integrated pump-suction design, capable of operating in micro-negative pressure environments. 2. Simultaneously detects 1-5 gases and displays them at the same time, with arbitrary sensor combinations. 3. Features intelligent identification and prevention of misoperation, overvoltage protection, overcharge protection, anti-static interference, anti-magnetic field interference, fall alarm, audible and visual alarm, vibration alarm, visual alarm, over-range alarm, undervoltage alarm, fault alarm, and one-key recovery function. 4. Equipped with a semiconductor nanotechnology-based ultra-low power consumption 32-bit microprocessor and a 24-bit ADC data acquisition chip. 5. Adopts a 3.5-inch full-view IPS industrial-grade color screen with password lock function. 6. One-key switch of measurement display interface, showing real-time value, maximum value, minimum value, and real-time curve, with fully Chinese/English operation menu freely switchable. 7. Features data storage with arbitrary adjustable storage time intervals, capable of storing 100,000 sets of data, supporting USB interface, RS232 interface, and timed measurement function, with optional CF card storage of up to ≥16G capacity. 8. Equipped with Bluetooth communication interface (optional), with optional GPRS remote wireless transmission. 9. Four concentration units (PPM, %VOL, mg/m3, mg/L) freely switchable, with automatic switching between high and low ranges. 10. Various modes adjustable: detection mode, storage mode, printing mode, display mode, and air pump mode. 11. Fully software-based automatic calibration, multi-level concentration calibration, up to 6-level target point calibration for sensors, with data recovery and next calibration date reminder function. 12. Integrated temperature compensation, dustproof and waterproof sampling design, equipped with a dust filter. 13. The display observation surface remains facing the detection personnel, while the sensor measurement surface can sample and detect from 360 degrees in different directions.
It adopts an integrated built-in pump suction design, enabling operation in a slight negative pressure environment by actively drawing gas into the sensor chamber via an air pump. Utilizing high-precision electrochemical gas sensors and microcontroller technology, combined with a semiconductor nano-process ultra-low-power 32-bit microprocessor and a 24-bit ADC data acquisition chip, it achieves high-precision measurement of gas concentrations. The sensor detection surface can sample and measure in 360-degree directions, and the well-designed gas chamber ensures that the sensor is free from pressure interference, while also incorporating temperature compensation functionality to ensure accuracy.
Industrial environment, special environment
1. Power on and enter the main interface. 2. Switch between fully Chinese or English operation menus as needed. 3. One-touch switch to the measurement display interface to view real-time values, maximum values, minimum values, and real-time curves. 4. Adjust the mode to select detection, storage, printing, display, or air pump mode. 5. Choose different concentration units (PPM, %VOL, mg/m³, mg/L) as needed or automatically switch between high and low ranges. 6. Use the data storage function to set the storage interval and view historical data. 7. Optionally, upload data to a computer via USB or RS232 interface, or connect to a printer via Bluetooth. 8. Optionally, use a micro printer for data printing or a CF card for expanded storage capacity. 9. Use fully software-automated calibration or multi-level concentration calibration, and set a reminder for the next calibration date as needed. 10. Use the password lock function to protect instrument settings.
- The instrument features a dust-proof and waterproof sampling design, equipped with a dust filter, suitable for various harsh environments. - It includes overpressure protection, overcharge protection, anti-static interference, anti-magnetic field interference, fall alarm, audible and visual alarm, vibration alarm, visual alarm, over-range alarm, under-voltage alarm, and fault alarm functions. - The instrument has intelligent recognition to prevent misoperation and a one-key restore function. - A temperature compensation function is required to ensure measurement accuracy. - The display viewing surface should remain facing the operator, while the sensor detection surface can sample and detect in 360° directions. - The sensor supports up to 6-level target point calibration for ensuring measurement accuracy and linearity. - The data storage interval can be set arbitrarily, supporting the storage of 100,000 sets of data. - Optional GPRS remote wireless transmission function (requires a Bluetooth communication interface as an option).
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
