Product Overview

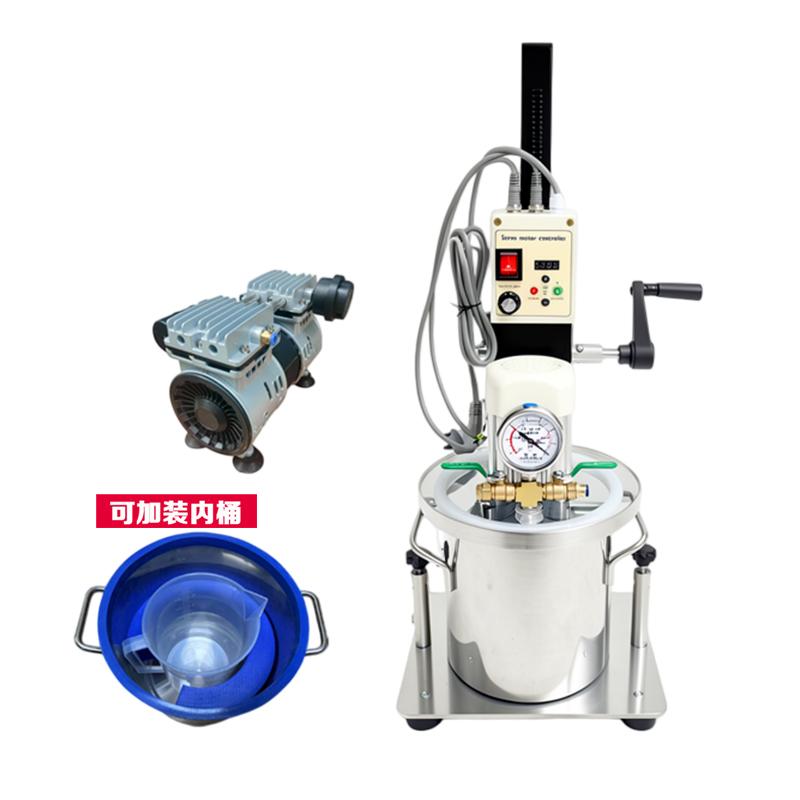

YKFS-1100K Silent Vacuum Mixer, highlighting the advantages of oil-free silent operation and vacuum mixing, is equipped with a 1100W/220V motor with a speed adjustable between 0-5000 rpm, paired with a Φ100mm dispersion disc and a Φ19mmx260mm dispersion shaft for uniform and efficient mixing. It is equipped with a 550W oil-free silent vacuum pump with low operational noise, and comes with a 6L (2020cm) vacuum tank to achieve bubble-free mixing. With a hand-crank lifting mechanism for convenient operation, the overall dimensions are 30x35x75cm and the weight is 18kg, balancing practicality and ease of use.
Product Features
1. Oil-free & silent design: Equipped with a 550W oil-free silent vacuum pump, featuring low operational noise.
2. Vacuum mixing function: Comes with a 6L (2020cm) vacuum bucket, enabling bubble-free mixing.
3. Flexible speed adjustment: The motor speed can be flexibly adjusted between 0-5000rpm.
4. Efficient and uniform mixing: Fitted with a Φ100mm dispersion disc and a Φ19mm x 260mm dispersion shaft.
5. Convenient operation: Adopts a hand-cranked lifting mechanism for ease of use.
6. Portable and practical: The overall unit dimensions are 303×575 cm and weight is 18kg, balancing practicality and portability.
Working Principle
This machine is driven by a 1100W motor to rotate a Φ100mm dispersion disc at an adjustable speed ranging from 0 to 5000 rpm, enabling the dispersion and mixing of materials. Meanwhile, a 550W oil-free vacuum pump evacuates air from the inside of a 6L vacuum tank, creating a bubble-free environment to prevent bubble formation during the mixing process. The position of the dispersion disc can be adjusted using a hand-cranked lifting mechanism to optimize the mixing effect.
Field of Application
Chemical, food, pharmaceutical, cosmetics, coatings
Operating Steps
1. Place the material into a 6L vacuum vessel.
2. Start the vacuum pump to evacuate the vacuum vessel.
3. Adjust the motor speed to the appropriate gear as needed (0-5000 rpm).
4. Use the manual lifting mechanism to adjust the position of the dispersion disc into the material.
5. Start the motor for stirring until the material is uniform and free of bubbles.
6. After stirring is complete, turn off the motor and the vacuum pump, and remove the material.
Precautions
- Ensure the power cord and plug are intact before operation.
- Avoid overloading during use and adhere to the motor's rated power (1100W) limit.
- Regularly check the vacuum pump for oil-free status to prevent dry running or damage.
- Operate the manual lift gently to avoid impact or damage to components.
- Clean and dry the vacuum tank after use to prevent residual materials from affecting subsequent operations.
- Wear appropriate protective equipment during operation to prevent material splashing.
- Children and non-professionals are prohibited from operating without supervision.
- Follow local electrical safety regulations to ensure reliable grounding.
