Product Overview

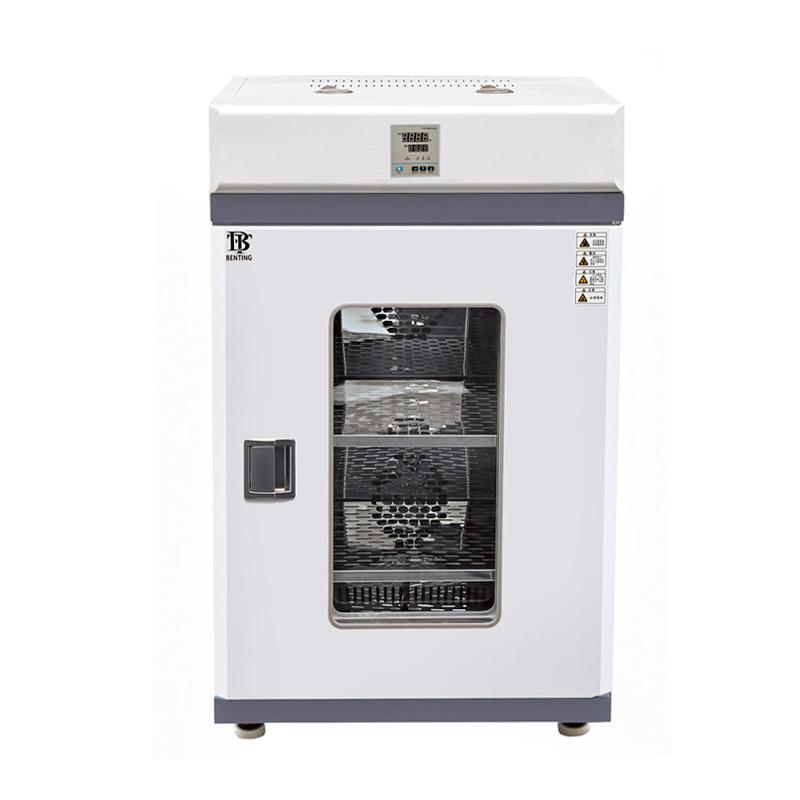

The Ben Ting brand BGL-230BJ model electric blast drying oven features a novel vertical design. The casing is made of high-quality steel plates coated with high-gloss mirror paint, while the workroom is constructed from stainless steel and treated with an anti-corrosion process for enhanced durability. It utilizes a vertical hot air circulation design and a PID LCD temperature controller to achieve uniform temperature control. The double-layer tempered glass observation window and insulated sealed door design effectively prevent heat loss.
Product Features
1. Novel vertical design, with a high-quality steel casing finished in glossy mirror paint, offering an exquisite and bright appearance.
2. The workspace is made of stainless steel and formed through anti-corrosion treatment, significantly enhancing durability.
3. Four corners with rounded arc transitions, and the shelf spacing is adjustable vertically.
4. Rear-mounted fan for forced air heating, with a vertical hot air circulation design for uniform temperature distribution.
5. Large-view tempered glass observation window on double layers, with high-temperature-resistant silicone sealing strips for excellent sealing performance.
6. PID liquid crystal display temperature controller, with precise microcomputer temperature control, featuring over-temperature alarm, deviation correction, and other functions.
Working Principle
This drying oven utilizes a fan at the back to blow and heat air, generating a vertical hot air circulation, which results in a more uniform temperature distribution inside the workspace. It features a PID LCD temperature controller and a microcomputer temperature control system for precise temperature regulation. Additionally, auxiliary menus enable adjustment operations such as over-temperature alarms and deviation correction.
Application Fields
Laboratory, industrial drying, scientific research
Operating steps
1. Set the desired temperature using the dedicated function key.
2. Use the auxiliary menu to configure overheat alarm and deviation correction settings, then confirm and start.
3. Adjust the airflow inside the chamber via the upper and lower ventilation holes.
Precautions
- Ensure the cabinet is placed steadily to avoid tilting.
- Check the integrity of the sealing strip before use to prevent heat loss.
- Clean and keep it dry when not in use for an extended period.
- Avoid touching the hot surfaces of the cabinet during operation for safety.
